C790 HDMI to CSI-2 HDMI to CSI Bridge HDMI IN 1080P 60Hz + Installation Accessories for Raspberry Pi
Description:

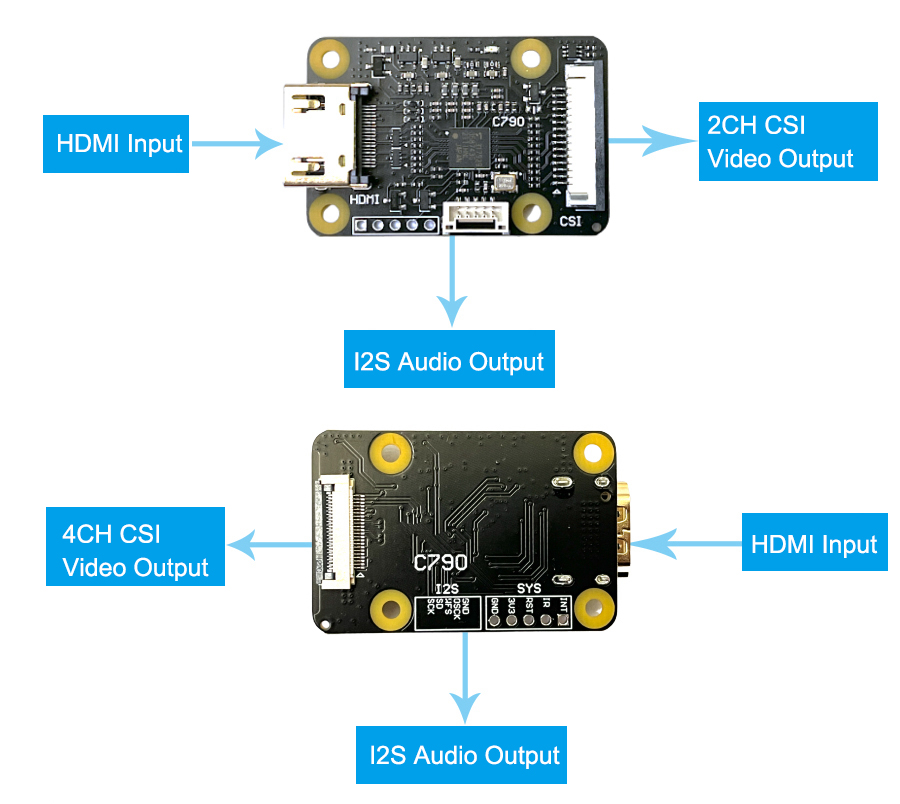

This module takes the incoming HDMI signal and converts it into a separate CSI signal and I2S audio signal. HDMI input supports up to 1080P 60Hz. It is suitable for Raspberry Pi, there are three versions of this module in history (C779, C780, and C790). C790 is the latest version. C790 has mitigate HDMI back-powering, also has two CSI channels and four CSI channels at the same time.
Hardware Parameters:
- Supported platforms: Zero, Zero 2, Pi 3B, 3B+, CM3, Pi 4B, CM4 and Pi 5B
- HDMI input: support up to 1080P 60Hz for Raspberry Pi
- HDMI to CSI-2 bridge chip: TC358743XBG
- 4 CSI-2 channels & clock
- The CSI-2 interface, with 15 pin FPC seat, spacing 1.0 mm, is located on the front of the C790 module
- The CSI-2 interface, with 22 pin FPC seat, spacing 0.5 mm, is located on the back of the C790 module

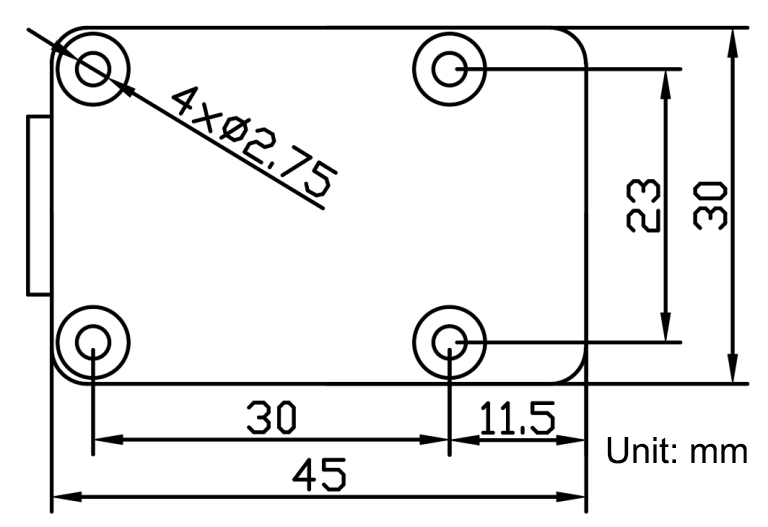

- Size: 30 x 45mm/1.2 x 1.8"
- Install: 4 x M2.5
- Power supply: 3.3V
- Weight: 10g/0.02lb
Package Included:
- 1 x C790
- 1 x FPC 15pin 1.0mm
- 1 x FPC 22pin 0.5mm

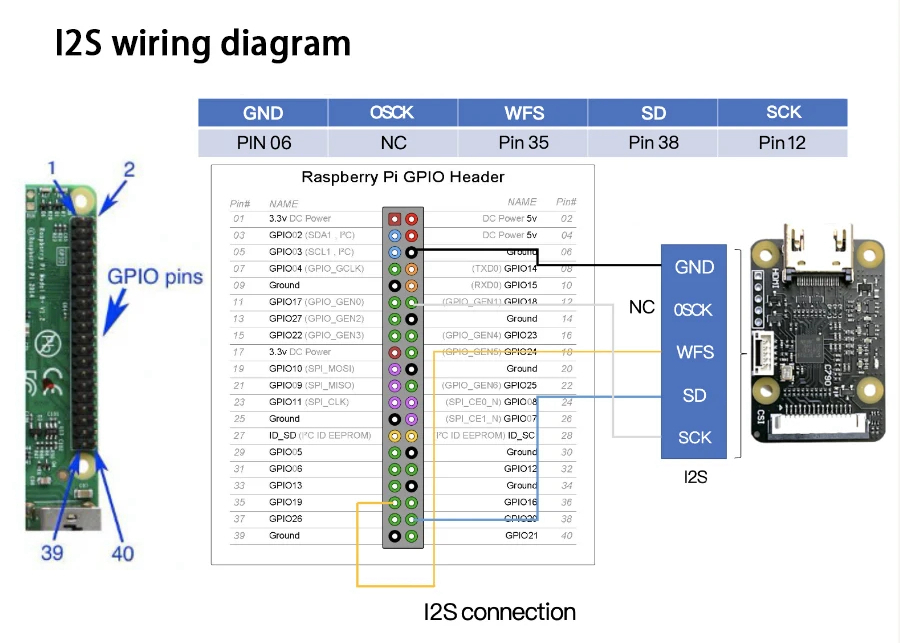

- 1 x I2S cable
- 1 x Mounting plate
- 2 x Double-pass copper columns M2.5x11
- 8 x Round head M2.5x4 screws
- 2 x Double-pass copper columns M2.5x6
Packaging Details:
- G.W.: 0.18kg

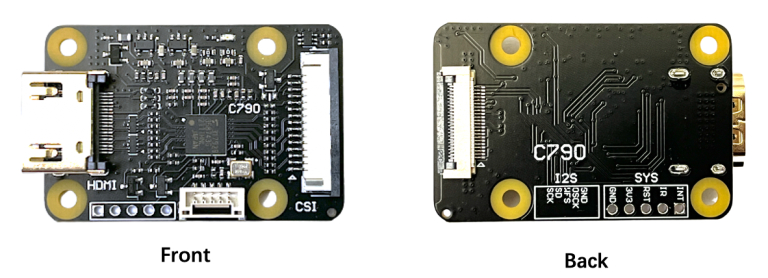

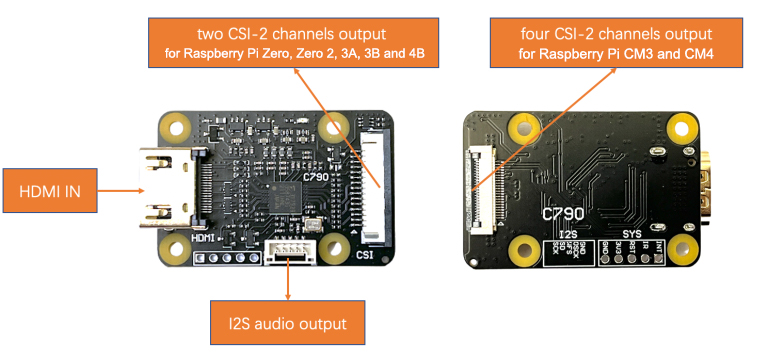

C790 has two CSI output interface. In front of C790, the CSI-2 interface is 15 pin FPC seat, spacing 1.0 mm. In back of C790, the CSI-2 interface is 22 pin FPC seat, spacing 0.5 mm.
