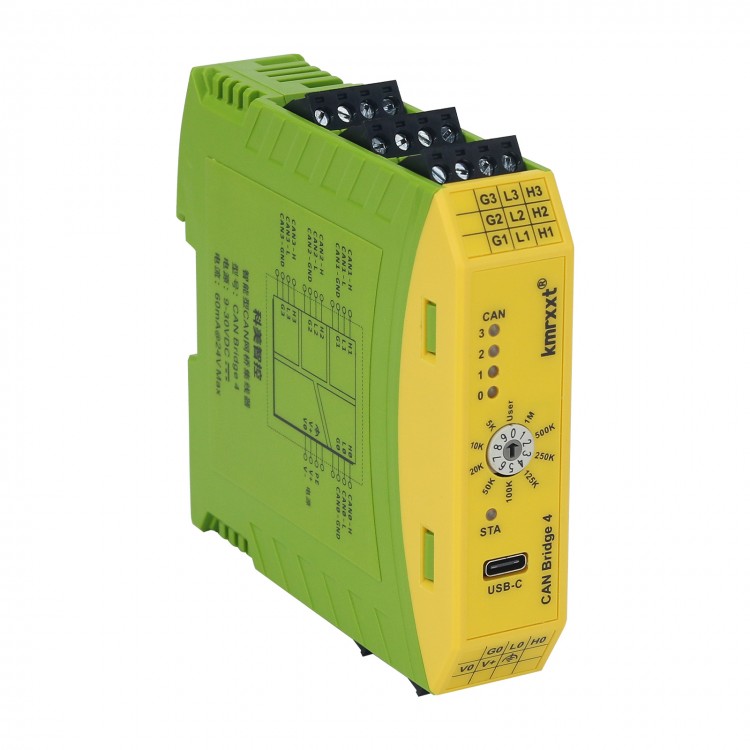

CAN Bridge 4 Industrial-grade CAN Bus Bridge Intelligent CAN Hub Supports One Input & Three Outputs
Description:
CAN Bridge 4 is a cost-effective industrial-grade CAN bus bridge and a hub, with 4 independent galvanically isolated CAN bus interfaces.
It implements the relay hub function of the CAN bus and can store and forward data between CAN networks at different rates. CAN Bridge 4 is widely used in automotive electronics, industrial automatic control equipment, security systems, intelligent instrumentation and the like. It can be connected to your PC via USB Type-C interface, which makes it easy to configure the communication baud rate, ID filtering, and ID remapping for each channel.
Features:
* Easy-to-use USB Type-C configuration interface for USB power delivery
* 4 sets of CAN interfaces, 1.5KV independent galvanic isolation, and reinforced ESD protection
* CAN2.0A/B standard, transparent protocol, and 5K-1Mbps arbitrary baud rate
* Easy-to-use, user-friendly configuration software provides a wealth of diagnostic information
* 100 group IDs can be filtered to the whitelist and 100 groups can be remapped
* 110-node bus load capacity and compatible with 24V CAN systems
* The baud rate can be quickly switched directly with a rotary encoder
* 30μs forwarding delay, 2000 frames of FIFO cache per port, and status LED indicator lights
* 9-30VDC wide voltage power supply, low profile modular design, detachable terminals, and standard 35mm DIN rail mounting
Typical Applications:
1. Isolation protection, interference suppression, and bus fault analysis and diagnosis;
2. Relay delay, network expansion, and change network topology;
3. Bridging devices with different baud rates to realize CAN network interconnection with different communication baud rates;
4. Uses the ID filtering function to selectively forward data and control the load of the network segment;
5. Uses the ID remapping feature to reassign IDs and distinguish between devices.
Package Included:
* 1 x CAN Bus Bridge
Packaging Details:
* Weight: 0.25kg
