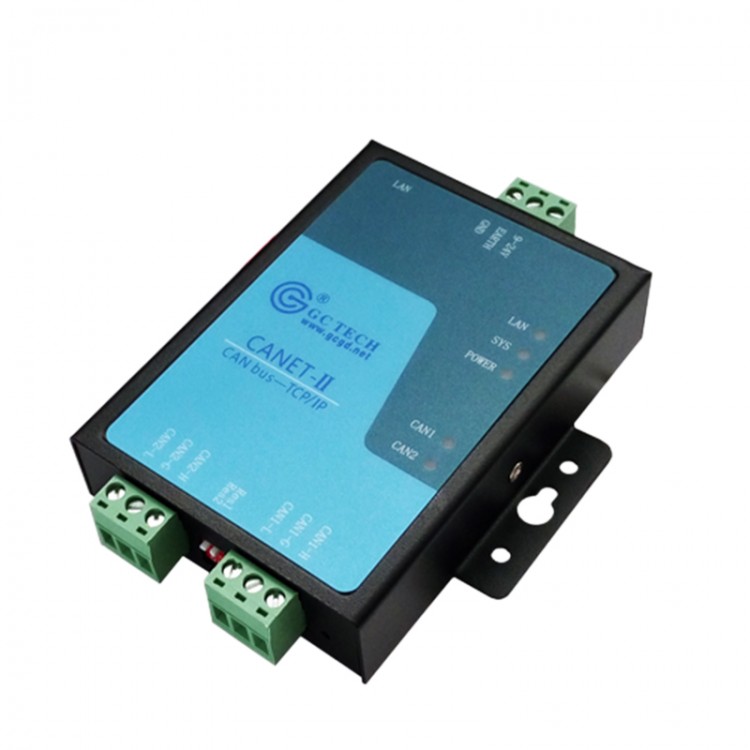

CANET II DC9-24V Ethernet to EthernetCAN Gateway Modbus/TCP Gateway Converter

CANET II DC9-24V Ethernet to EthernetCAN Gateway Modbus/TCP Gateway Converter

Description:
Ethernet to CAN module is able to integrate the CAN bus into the existing Ethernet topology. Therefore, it is suitable for general purpose PC-CAN transfer equipment, the host computer can access the CAN network through Ethernet, and it is widely used in the field of industrial automation systems, railway systems, building automation systems, motor room monitoring, power monitoring and other fields.

Function:
CANET series Ethernet -CAN converter achieves the CAN-bus data and Ethernet data transmission function, it is integrated with the 2 ISO11898 standard CAN-bus interface and 1 10/100M Ethernet interface, and comes with TCP/IP or UDP protocol stack, users can easily complete the CAN-bus network and Ethernet network interconnection, the establishment of two layer of Ethernet -CAN network architecture, remote control, greatly expanding the application range of CAN-bus network.

CANET series are industrial grade products, its working temperature range is from -40 to 85. It integrates 10M/100M adaptive Ethernet interface, with Server TCP, Client UDP, TCP and other work modes, high performance supports 254 TCP connection or as many as 6 x 254 UDP "connection", supports Ethernet redundancy and CAN network redundancy. CAN and Ethernet interface are industrial grade design, CAN interface with magnetic coupling isolation module, so as to avoid the damage to the ground, strong anti - static and surge capacity, so that it can be used in harsh environments.

The user can make the software through the supporting CANETCFG and make parameters of canet series product configuration on the computer , including working mode, working port, can set communication baud rate parameters.

If users need to configure the CANNET in a specific host computer software, and do not need to complete with its own configuration software, CANNET provides the user with the Ethernet terminal configuration protocol, and provides a function library and detailed configuration library functions for CANNET to facilitate user application. Configuration function library and the two development program package to support Win2000/XP/WIN7/WIN8/Linux and other operating environment. For data monitoring and analysis of CAN bus, CANET provides a summary of the test software, which is convenient for the user to observe the data of CAN bus on the computer.

Operating mode:
- TCP Server mode
- TCP Client
- UDP mode

Features:
1. High speed CPU ARM;
2. Configurable working mode, working port, target IP, target port;
3. Support TCP automatically re connect after disconnection;
4. Support TCP client mode, TCP server mode, UDP;
5. Support protocols include ARP, IP, ETHERNET, ICMP, UDP, DHCP, DNS, TCP;
6. SOCKET TCP (Server TCP, Client UDP,, etc.), PC communication software written in compliance with the standard of SOCKET rules;
7. Integrated 2channels interface, terminal wiring design;
8.CAN protocol is fully compliant with 2.0B CAN specification, compatible with 2.0A CAN, 11898-1/2 ISO;
9.CAN programming the baud rate can be arbitrarily set, in the range of 5Kbps ~ 1Mbps;
10. Efficient and easy to use two times development function, can support all kinds of development environment, such as VC, C#, Labview, LINUX, etc.;
11. Can upgrade the kernel system;
12.LED indicator module state;
13.CAN 1 and CAN 2 and power supply electrical isolation between 1000V, ESD to protect the maximum 8kV (60601-1 IEC);
14. Supply voltage: 9-24V DC;
15. Temperature range: -40~85.

Product application:
1. Connect the CAN bus to the Ethernet;
2.TCP to CAN data gateway, converter;
3. Industrial CAN network monitoring;
4. Protocol automatic conversion, automatic control.

Parameters:
- Interface: CAN Terminal interface Ethernet RJ45
- CAN channel: 2
- Operating temperature: -40~80 degree C
- Operating voltage: 9-24V
- Power supply: Exyernal power supply
- Isolation voltage: DC 1000V Electromagnetic isolation
- Operation system: Windows98/2000/2003/ME/XP/7/8/CE/Linux
- Twice development: Yes
- Programming environment: C/C++/C++builder.VB/NET/VC/EVC/NET/deiphi/iabwindow/labview
- 120Ohm resistance: external dial switch

Package included:
- 1 x EthernetCAN Gateway
