| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $54.29 | $53.18 | $51.52 | $49.31 | Contact US |
CanMV-K230D-Zero V1.0 Development Board (with 32G Memory Card) + 2093 2MP Camera for AI Recognition
$61.23
CanMV-K230D-Zero V1.0 Development Board (with 32G Memory Card) for Machine Vision Recognition Camera
$47.63
CanMV-K230D-Zero V1.0 Development Board (without Memory Card) for Machine Vision Recognition Camera
$41.80
CanMV-K230D-Zero V1.0 Development Board (without Memory Card) + 2093 2MP Camera for AI Development
Description:

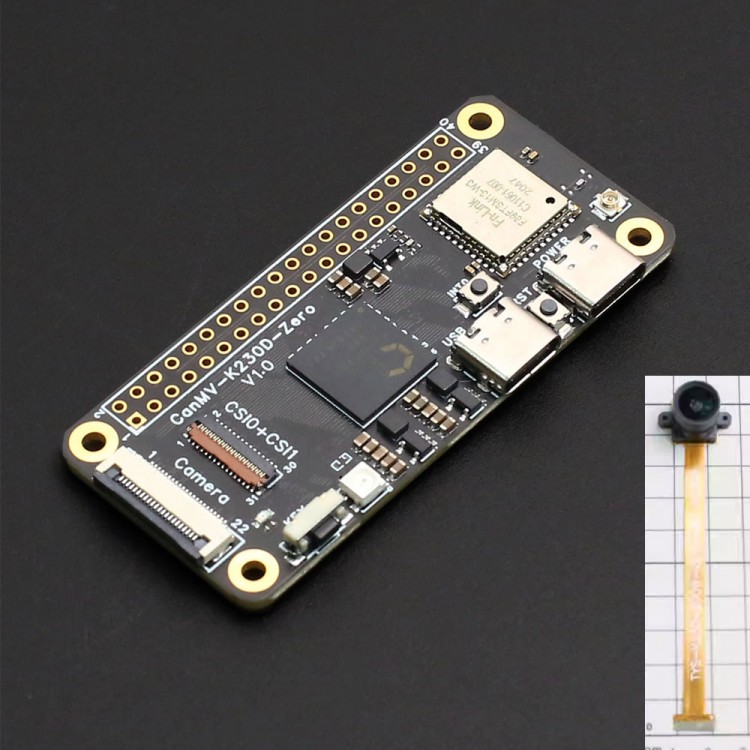

The CanMV-K230D-Zero development board is designed to explore the cutting-edge applications of RISC-V Vector 1.0 technology. This board integrates the high-performance K230D chip, featuring a dual-core Xuantie C908 RISC-V CPU and a self-developed third-generation KPU (Neural Network Processing Unit). With 128MB of onboard LPDDR4 memory, it delivers exceptional local inference computing capabilities. Thanks to its compact design and rich development resources, the CanMV-K230D-Zero is widely suitable for DIY projects, IoT devices, and embedded system development. It is an ideal choice for learning programming, developing edge AI audio-video products, and conducting performance evaluations.
Product Specifications:
* CPU: Xuantie C908 Dual-Core RISC-V CPU
* CPU1: 1.6GHz, supporting RVV1.0
* CPU2: 800MHz
* KPU: Third-generation neural network processing unit supports INT8/INT16 and other data types
* Typical Performance: ResNet50 ≥ 85fps at INT8, MobileNet_v2 ≥ 670fps at INT8, and YOLOv5s ≥ 38fps at INT8
* DPU: Built-in 3D structured light depth engine and supports up to 1920x1080 resolution
* VPU: Built-in H.264/H.265 hardware encoder/decoder
* Image Input: 2x MIPI-CSI (2-lane and 4-lane)
* Display Output: MIPI DSI interface supports up to 1080P resolution output
* RAM: 128MB LPDDR4
* Storage Expansion: Onboard TF card slot supports up to 1TB expansion
* USB: 1x USB2.0 interface with OTG functionality
* Networking: Built-in 2.4 GHz Wi-Fi module
* Audio: Supports external audio input/output interfaces
* GPIO Expansion: 40-pin GPIO expansion supports interfaces, including I2C, UART, I2S, SPI, PWM, ADC and JTAG
* Buttons: 1 function button and 1 reset button
* Power Supply: USB Type-C interface, 5V input voltage, and 2A current
* Dimensions: 65mm x 30mm x 7mm (LxWxH)
Package Included:
* 1 x Development Board
* 1 x 2093 2MP Camera
Packaging Details:
* Weight: 0.15kg
