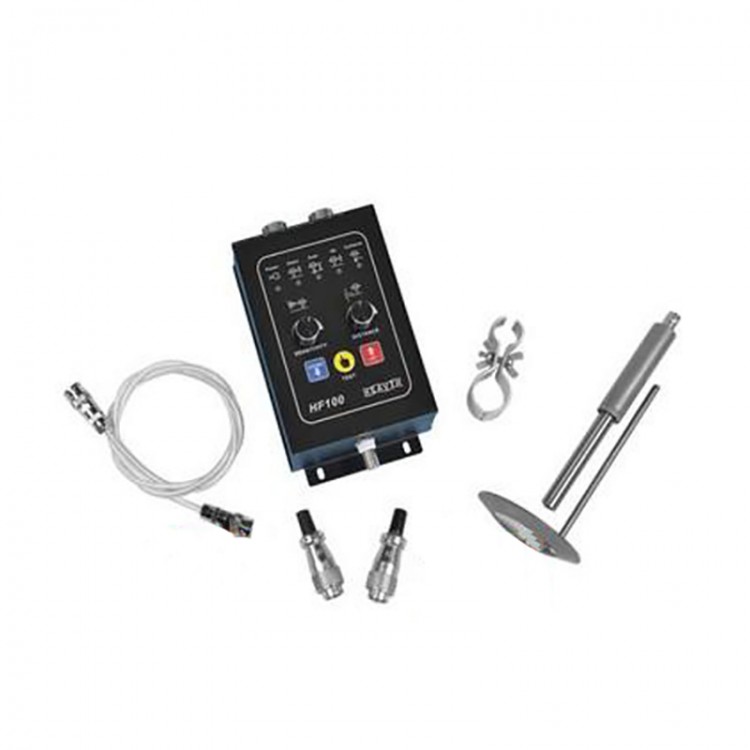

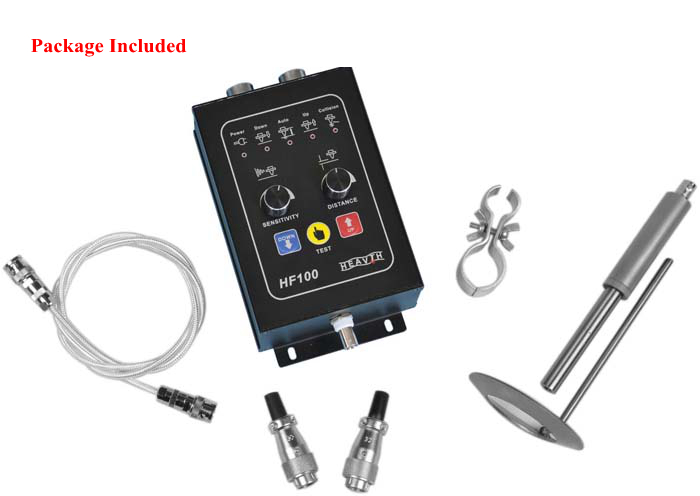

Capacitive Torch Height Controller HF100 for CNC Metal Cutting Machine
Quick Details:
1. Flame cutting torch height controller
2. Apply to Flame CNC cutting machine
3. Power supply: AC/DC 24V

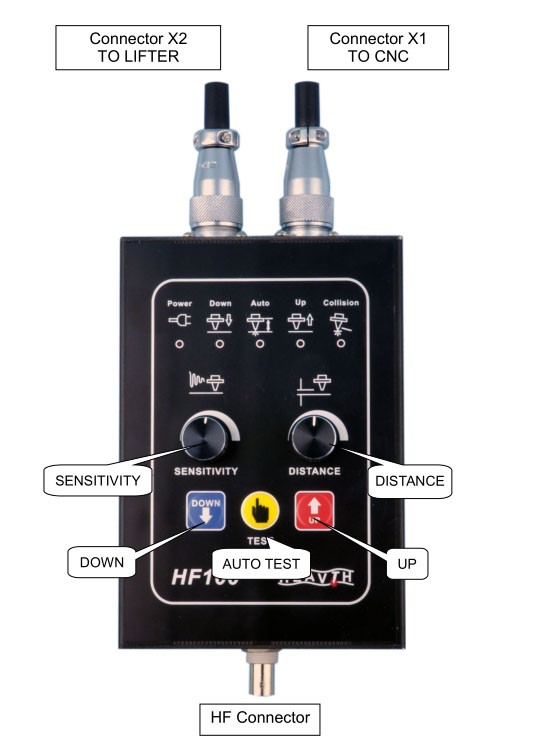

Structural Features:
1. Designed for metal CNC cutting machine
2. High induction sensitivity, run smooth and stable
3. Set upper and lower limit switch inside, reduce the loss of motor, prolong the service life.
Applications:
Used for cutting torch auto height control of flame cutting machine, it is suitable for vast majority of imported or domestic models of flame.
Working Principles:
Using basic constant current of flame power source characteristics, by testing the change of flame arc voltage to test the change of Fame cutting torch height in the process, realize the control of cutting torch height.
Maintenance Skills:
1. Install the torch height controller correctly.
2. Replace the consumables in time before completely damaged.
3. Avoid the collision of the torch height controller.
4. Keep the connection threads clean.
5. Check if there are loose parts.
Technical Parameters:
- Power Supply: DC/AC24V±10%，50/60 Hz, 150 W
- Lifter Motor: 24 VDC MOTOR
- Environment Temperature:
Control Box: -10℃ to 60℃
HF Cable: -55℃ to 200℃
- Sensor Distance: 1mm-30mm, adjustable
- Accuracy: ±0.2mm
- HF Cable: 1000mm, 75ohm
- Sensor Type: Ring
- Sensor Ring: outer diameter 80mm, inner diameter 40mm
- Housing Dimensions: 180mm*105mm*65mm (L*W*D)
- Weight: 0.9kg
