Description:
Designed with 32-bit ARM processor and analog circuit, CHC-200F is the latest capacitive torch height controller. Its size and ports are the same as those of CHC-200D and CHC-200E.

Features:
- Upgraded version of CHC-200E/CHC-200D
- Can be used for flame cutting machines
- Power Supply: DC20V~36V or AC24V±10%, 50Hz
- HF Cables: 800mm~1800mm
- Automatic Detecting Functions: It can automatically detect preset height, collision, disconnection status and the like.

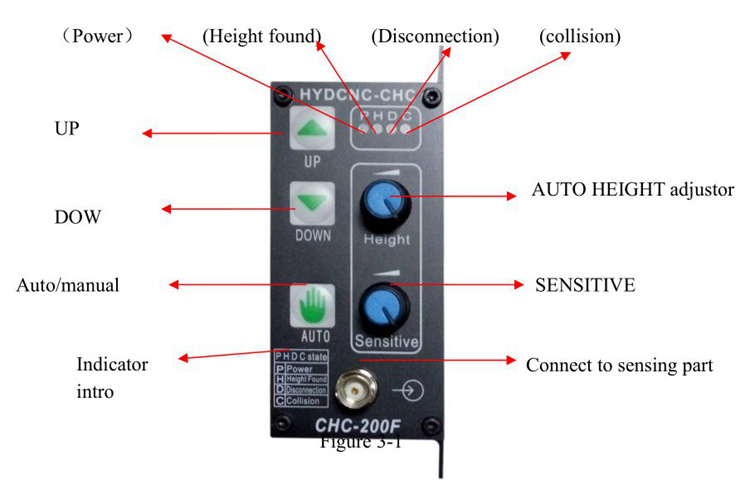

- Dust-proof operation panel for easy operation and maintenance
- Anti-Collision Protection: When it is powered on, as long as sensor ring is touched by metal objects, the height controller will raise at the highest speed and emit a collision signal, protecting the probe and connection parts.
- Improved Sensitivity: It is more convenient to debug, thanks to higher sensitivity and smaller overshoot.
- Easy Replacement: Its size and ports are the same as those of CHC-200D and CHC-200E.
- Less Heat Produced: Its power can be easily changed. The maximum current can be increased to 16A. Using power components with lower internal resistance, less heat will be generated.

Specifications:
- Power Supply: DC20V~36V or AC24V±10%, 50Hz
- Compatible Motor: DC21V, 1-4A
- Motor Drive: PWM
- Max. Power: 100W
- Working Temperature: THC: -10 to 60℃. HF Cable: -10 to 200℃. Sensor Parts: -10 to 350℃
- Accuracy: ±0.1mm (matters with lifter design)
- Auto Height Range: From cutting material surface 1mm-25mm
- HF Cable: 800mm to 1800mm

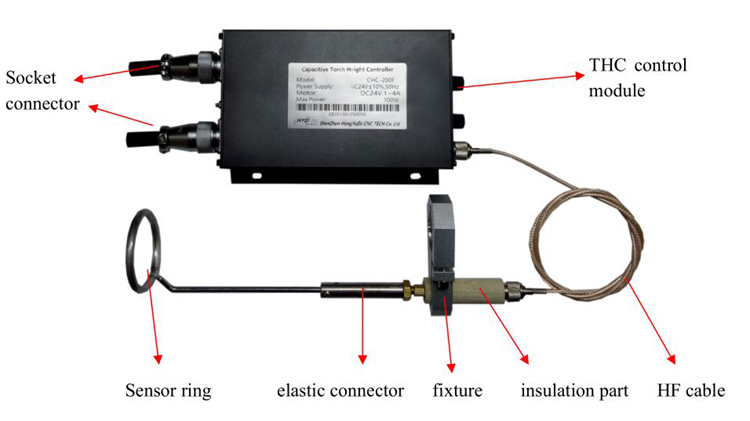

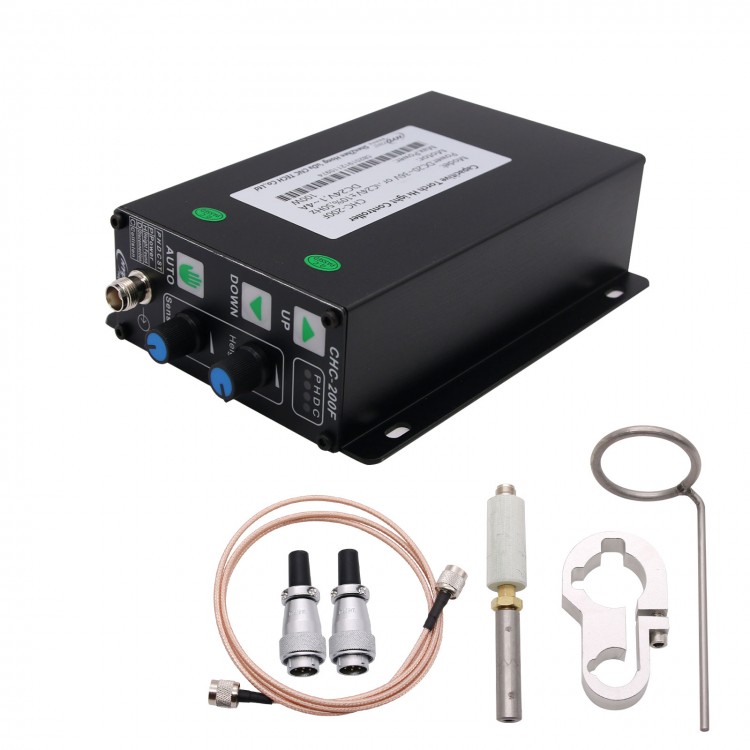

Package Included:
- 1 x Torch Height Controller Module
- 2 x Socket Connectors
- 1 x HF Cable
- 1 x Fixture
- 1 x Insulation Part
- 1 x Elastic Connector
- 1 x Sensor Ring
