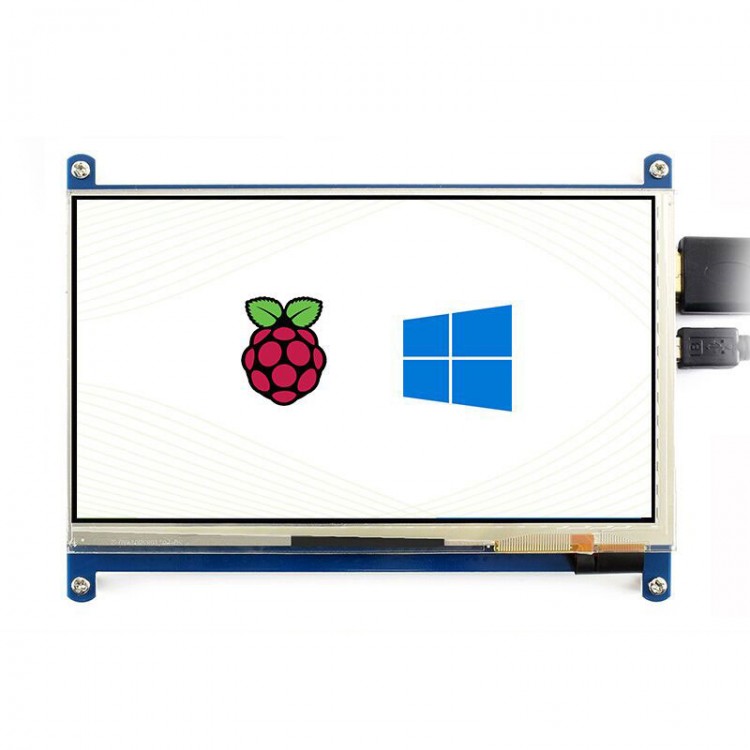

Capacitive Touch Screen 7 Inch IPS Display 1024x600 For Various Systems 7inch HDMI LCD (C)

Capacitive Touch Screen 7 Inch IPS Display 1024x600 For Various Systems 7inch HDMI LCD (C)

Features:
- 7" IPS screen with resolution 1024x600
- HDMI display interface
- 170°visual angle
- Capacitive touch control
- Support 5-point touching
- USB connection port
- Backlight can be turned off to lower power consumption
- RoHS2.0 & CE certifications

Supported Devices & Systems:
For Raspberry Pi
- For Raspbian: 5-point touch control, driver free
- For Ubuntu/Kali/WIN10 IoT: 1-point touch control, driver free
- For Retropie: Driver free
- For all versions of Raspberry Pi

For PC
- For Windows 10/8.1/8/7: 5-point touch control, driver free

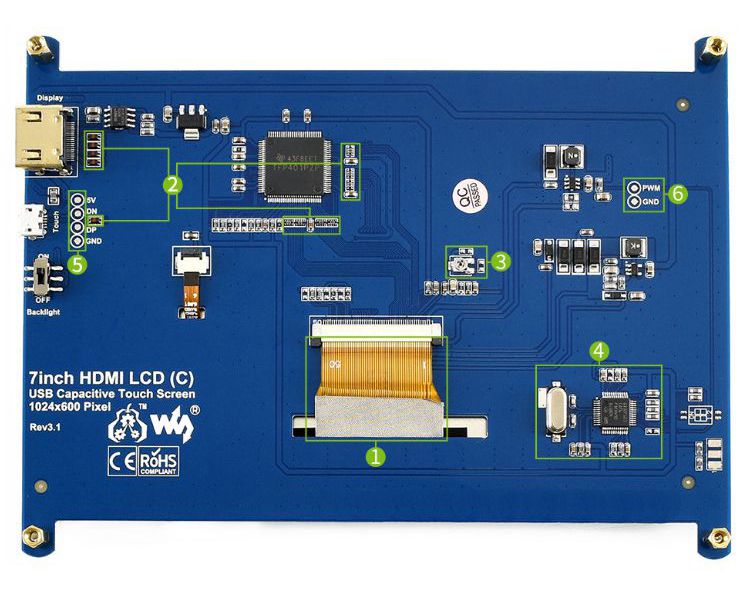

- Thanks to LCD FFC anti-interference design, it can be used for industrial field
- EMI and ESD protection circuits have been granted with CE certification
- VCOM Voltage Regulation Resistor: VCOM voltage can be adjusted to maximize display performance
- USB Protocol Converter: Turn touch signals into multi-touch protocol for smooth multi-touch function
- USB Interface & Power Supply Pad: easy to pull out the USB interface and connect external power supply
- Adjustable Backlight Solder Pad: Connects PWM signal to control backlight brightness and prolongs service life of the screen

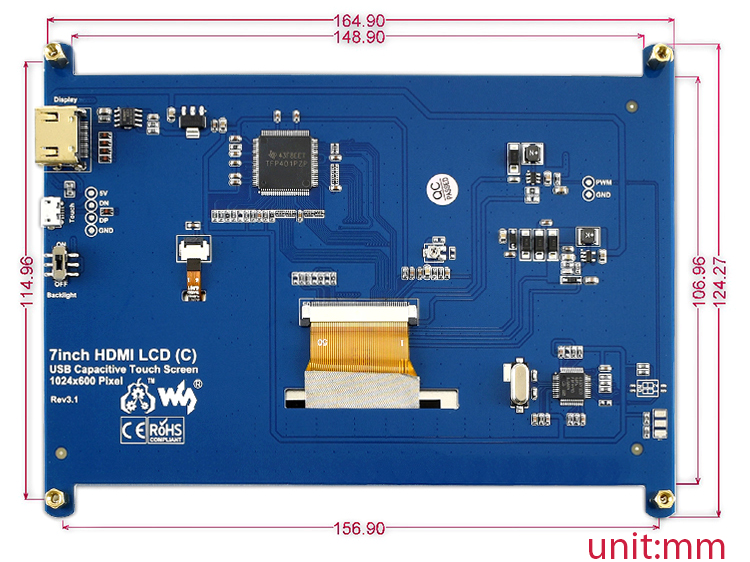

External Dimension:
插入02

Development Resources:
Wiki: www.waveshare.com/wiki/7inch_HDMI_LCD_(C)

Package Included:
- 1 x 7inch HDMI LCD (C)
- 1 x HDMI Cable
- 1 x HDMI Female to Micro HDMI Male Conversion Adapter
- 1 x USB Cable Type A Male to Micro Male
- 1 x Set of RPi Copper Pillar
- 1 x Quick Start Guide

Note:
- It support 5-point touching. Please note that touching points is related to your software system.
- For Raspberry Pi Zero W: mini HDMI conversion adapter and USB adapter cable are needed, please purchase separately.

FAQ:
Why the LCD doesn't support for my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.

Make sure the image in TF card is burnt correctly.

The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?
It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.

For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more information, please check the wiki page.
