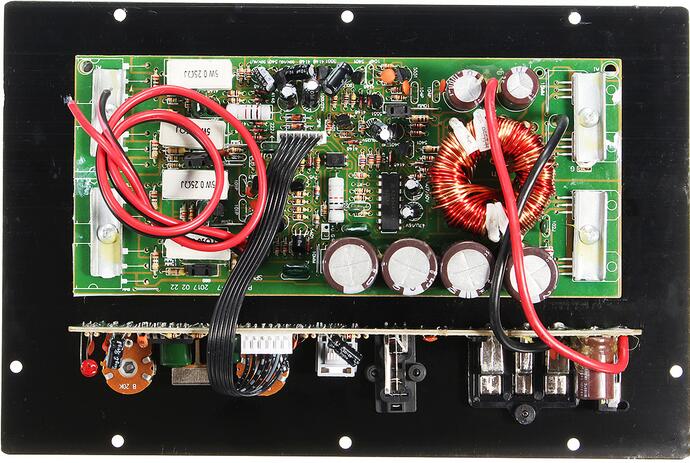

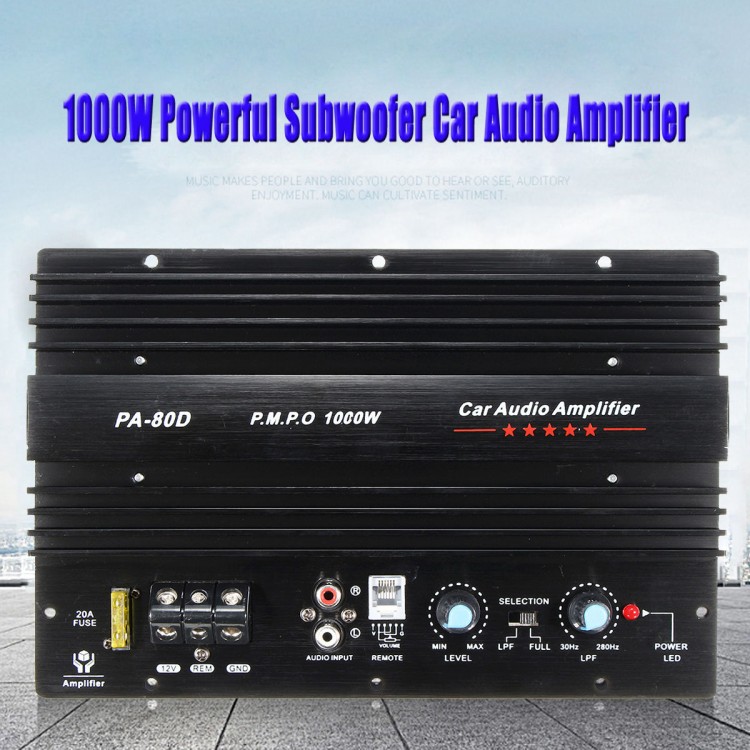

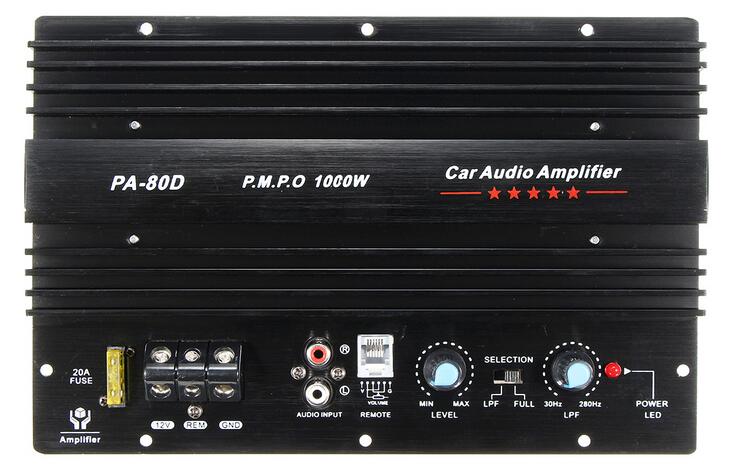

Car Audio Amplifier Board Power 12V 1000W Mono Powerful Bass Subwoofers Amp PA-80D
Product Description:
- Brand new and reliable high quality mono 1000 Watts Car Audio Amplifier gives you a wonderful in-car entertainment.
- Current /Amperage Overload, Short Circuits, Thermal Overload,DC Offset
Specifications:
- Model: PA-80D
- Max Power: 1000W
- Rated Power: 600W
- THD: ＜0.01%
- Frequency Response:30Hz~280KHz
- Operating Voltage:12V
- Impedance:4Ω
- SNR: 105dBA

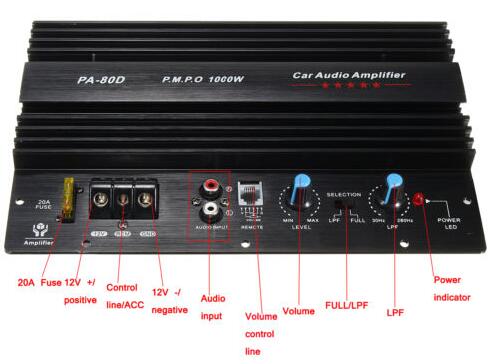

Wiring:
1.Speaker connection: amplifier board has a good piece of red and black wire welding can be accessed by a 4-8 Euro 100-150W bass or full-range speaker or speakers (red pick horn + , black pick speaker - is recommended to use 4 ohm 8-12 inch 45 core 100-170 magnetic bass );
2.Power connection
A. car has a CD player : GND then negative vehicle power ; 12V 12V power supply connected to the car 's positive ; REM CD player connected to the control line (so the CD player can directly control the subwoofer amplifier on and off )
B. car no CD player : GND connected to the negative power of the car , + 12V and REM connected together in positive 12V car power (+12V can also be an indirect one with REM switch control amplifier switching function )
C. directly with the battery (battery) connection : GND connect the battery negative , + 12V and 12V REM then the positive battery simultaneously .
Package Included:
- 1 X Car Audio Amplifier
