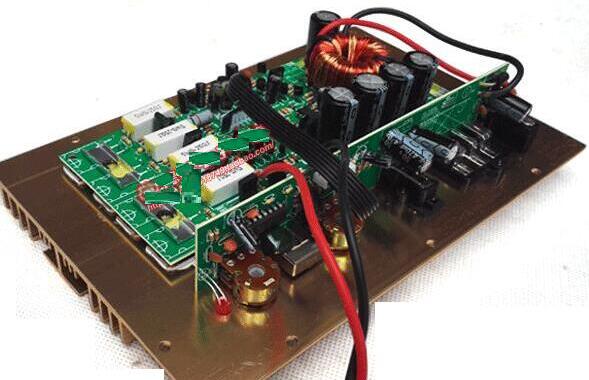

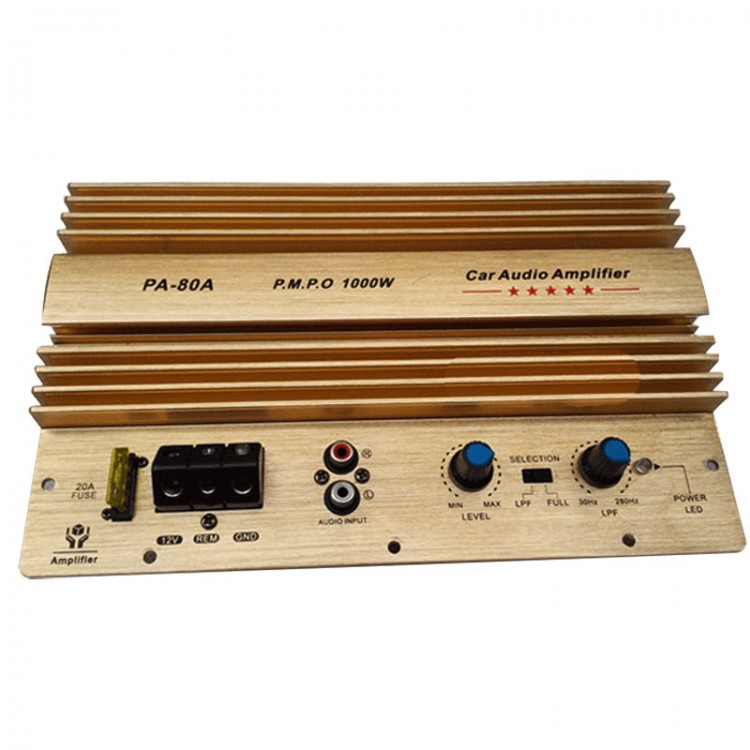

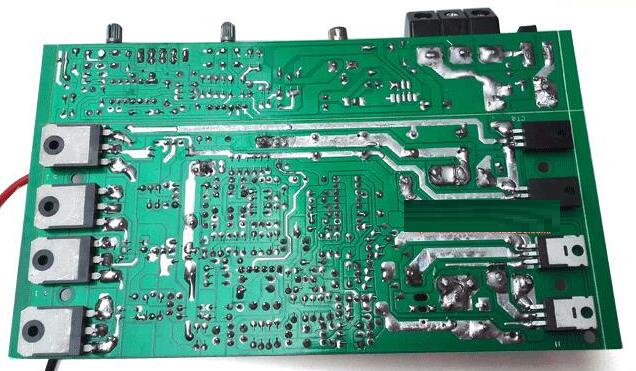

Car Audio Amplifier Board Power Subwoofer High Power 12V 24V 1000W
Product Description:
- Name:12 V car external heat dissipation power amplifier
- Four import power amplifier tube
- Application:12 V car subwoofer
- Audio input:DVD/VCD/CD/MP3/MP4/mobile phone.
- Peak Current:1000W
- Rated Power:250W
- Load impedance:4ohm~8ohm
- Colour:Black/golden
- It is for 8.0inch~15inch subwoofer
- Electronic yellow glue
- Frequency response: 280 khz.
- Distortion: less than 0.5%.
- Input voltage: 12V 20A
- One pure bass output
- Heat dissipation board length:23.5cm;width:15.5cm
- Mounting port length:18.8cm
- Mounting port width:13.2cm;Depth:5cm
Attention:
When you install amplifier,you need to be careful.
- If you connect 12V power,you must connect the battery positive+,or you will damage the car circuit.
- GND interface must connect the negative-(ground).
- There are three interface that connect the power cable.The middle interface is contyrol wire REM.You can connect +12V voltage to test the machine.Find the ACC control wire interce on the CD and connect wire.
When you are wiring,please not touch the groud and bandage the bare with electrical tape.Otherwise,it may cause short circuit and damage the machine.
Note:This board is without mounting box.
Package List:
- 1 x Car Audio Power Amplifier Board
