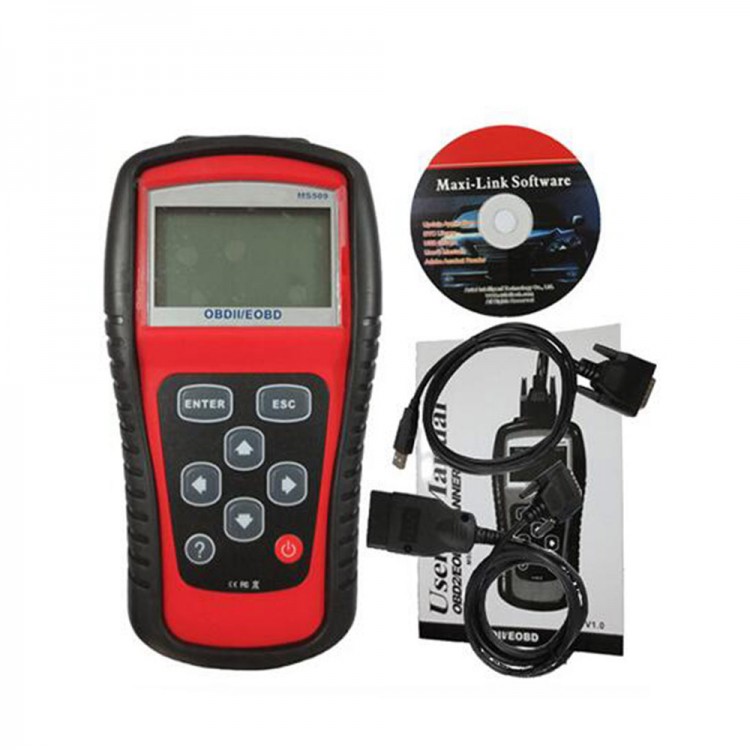

Car Code Reader Autel MS509 OBDII OBD Auto OBD2 Scanner Maxiscan MS 509 Automotive Diagnostic Tool
Description:
The MS509 OBDII / EOBD Scanner supports all nine OBDII test modes on all OBDII compliant vehicles to EOBD,Enable technicians and home users to accurately diagnose even the toughest problems. Sophisticated, yet easy to use,
This hand-checking tool allows easy and quick access to engine based EOBD fault codes, the can-enabled tool It gives clear, concise
DTC definitions on its large back-lit LCD screen retrieves generic P0, P2 and P3 and U0 codes for engine emissions and also picks up manufacturer specific P1, P3 and U1 codes, turn off the MIL light, Stores freeze frame data for later evaluation and will also display monitor and I / M readiness status.
Features and product functions:
- It works on most OBDII compliant US, European and Asian cars
- Easily determines the cause of the Check Engine Light (MIL)
- Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
- Turns off Check Engine Light (MIL), clears codes and resets monitors
- Displays DTC definitions on unit screen
- Views freeze frame data
- Displays monitor and I / M readiness status (emissions)
- Identifies pending codes
- Reads live PCM data stream
- Displays live O2 sensor test data
- Data graphs C (1996 and newer)
- Reads, stores and playbacks live sensor data
- Backup memory / battery for data review and analysis outside the vehicle
- Menu multilingual --- English, Spanish, French, German
- Performs modules present test
- Retrieves vehicle information (VIN, CIN and CVN)
- Supports CAN (Controller Area Network) and all other current protocols
- OBD-II protocols
- Built-in OBD-II DTC Library
- Large easy to read backlit LCD screen
- Software upgradeable via email
- Prints data via PC
- It works with the following:OBDII / EOBD (US, Asian and European) Reads and clears generic and some maunfactures codes.
Supported protocols:
- ISO 15765-4 CAN (29 bit ID, 250 Kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 Kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 Kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 Kbaud)
- ISO 14230-4 KWP 2000 (fast init, 10.4 Kbaud)
- ISO 14230-4 KWP 2000 (init 5 transmission, 10.4 Kbaud)
- ISO 9141-2 (5 boot transmission, 10.4 Kbaud)
- SAE J1850 VPW (10.4 Kbaud)
- SAE J1850 PWM (41.6 kbaud)
Package Included :
- 1 MS509 Code Reader
- 1 * Manual
- 1 * CD
- 1 * USB computer connection cable
- 1 * OBD2 lead
