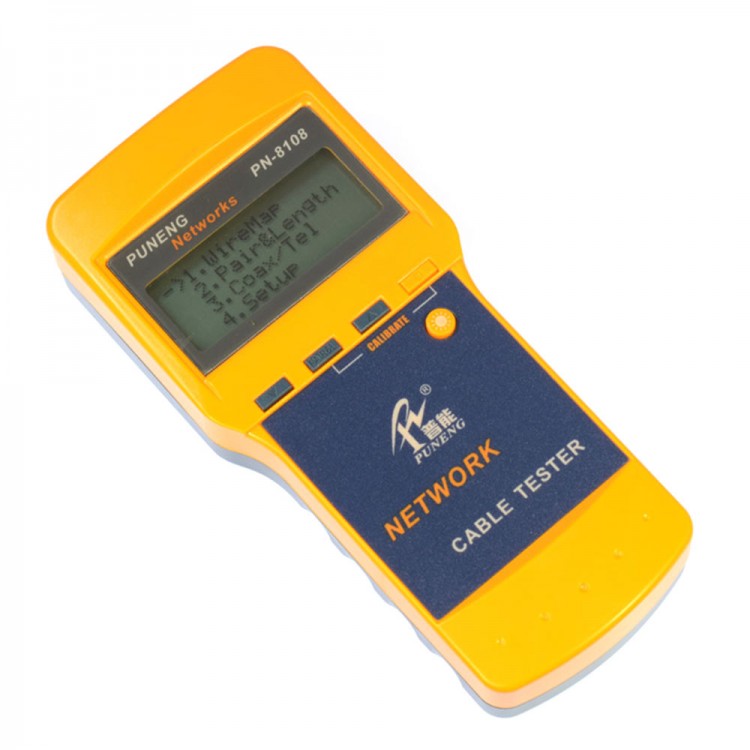

CAT5 RJ45 Network Cable Tester LCD Meter Length Breakpoint Test RJ45 Port PN8108

CAT5 RJ45 Network Cable Tester LCD Meter Length Breakpoint Test RJ45 Port PN8108

Description:
This tester is very easy to operate for prevent and solve cable installation problem. It can widely be used for a number of applications such as cable connection sequence, length, user jumper and cable connection continuity and determine any open circuit, short circuit, jumper or cross-talk interference.

Features:
- Do the cable continuity check in a nice and easy way
- Check wiring error in 5E, 6E, coaxial cable and telephone line
- Applicable for open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
- Find the location of wiring or connection error
- Measure cable length and determine the distance of open circuit and short circuit
- Dynamically calibrate cable length and make length measurement as accurate as 97%
- Long battery life (standby mode for over 50 hours)
- Auto time delay shut off
- Measure length and pair with or without far-end recognizer
- Locate cable and there is 8 far-end passive jacks (Only one jack is included in this auction)
- Far end recognizer with prompt voice
- Self checking function and auto compensate any change in battery capacity or ambient temperature

Specification:
- LCD : 4 x 16 characters big screen (valid visual field 61.6 x 25.2 mm)
- Type of Tester Cable : STP / UTP twin twisted cable, coaxial cable, telephone line
- Tester Port :   Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R).
- The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line
- Length Measurement of Twin Twisted Cable:
- Scope : 1~350M (3~1,200 FT)
- Calibration accuracy : 3% (± 0.5m or ± 1.5 ft) (calibrating cable > 5 M)
- Shipment accuracy : 5% (± 0.5m or ± 1.5 ft) (AMP, AT&T Class 5 cable)
- Display : M or FT
- Length Calibration : User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than         5M.
- Wire Sequence and Locating Cable Error : Check errors such as open circuit, short circuit, reverse connection, cross over or                 cross-talk interference.
- Locating Cable : Included 1 far-end passive test jack
- Working Ambient Temperature : -10°C to 60°C
- Use 4 x AA batteries (Not included)
- Item size : 180 x 80 x 40 mm

Package Including:
- Multi-Network Cable Tester
- Manual
