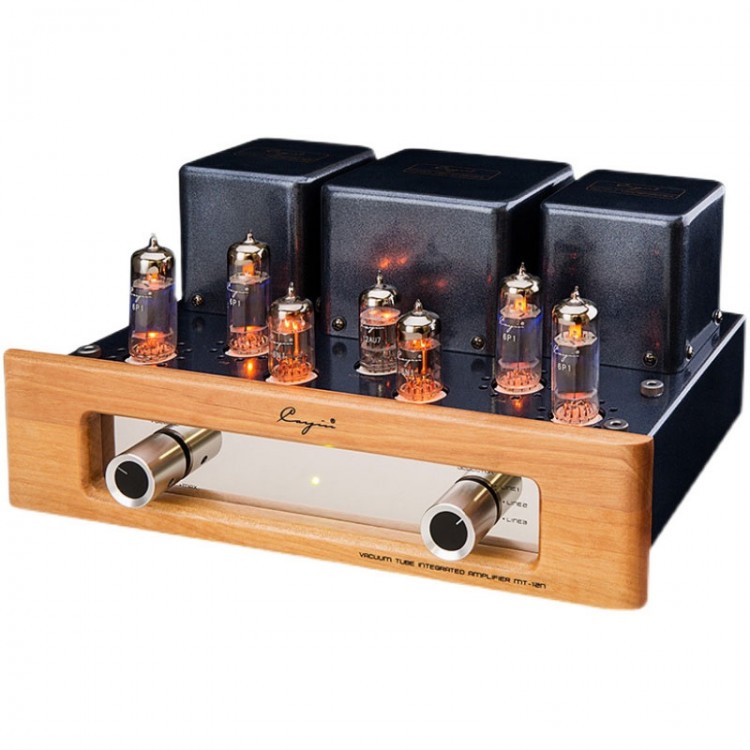

Cayin MT-12N EL84EH 220V Vacuum Tube Integrated Amplifier Home Hifi Class A Tube Amp 9W + 9W Output
Features:
- Elegant and high-grade: As Cayin's entry-level tube amplifier, MT-12N adopts solid wood panel and tubes. It is handmade, the whole machine using the shed welding. Noise is controlled to a very low level, and its sound is sweet and delicate, soft and durable, but not lack of waves of surging momentum. Japan high-quality potentiometer for ALPS is adopted. Vacuum tube shield makes it easy to plug in the tubes
- Pure beauty and soft tone: one 12AU7 is used for voltage amplifier stage, two 6N1 are responsible for inverting and driving amplification of left and right channel signals respectively, and four selected paired EL84EH vacuum tubes are used for AB1 class push-pull power amplification
- High-grade speaker terminals
- Using two high-quality wide-band EI output transformers, bringing about better sound quality
- Using a special toroidal power transformer
Product parameters:
- Model: MT-12N
- Size: 330 x 245 x 160mm/13 x 9.6 x 6.3"
- Weight: 8.3kg/18.3lb
- Power consumption: 80W
- Vacuum tube: 12AU7x1, 6N1x2, and EL84EHx4
- Input sensitivity: 260mV
- Rated output power: 9W+9W
- Output impedance: 4Ω/8Ω
- Input impedance: 100kΩ
- Signal to noise ratio: 86dB
- THD: 0.5% (1kHz)
- Frequency response: 10Hz~35kHz (-3dB)
- Power supply: ～220V±5% 50Hz
Package Included:
- 1 x Amplifier
Note:
- The tube amplifier must be connected to the speaker before running, otherwise the power amplifier may be damaged.
