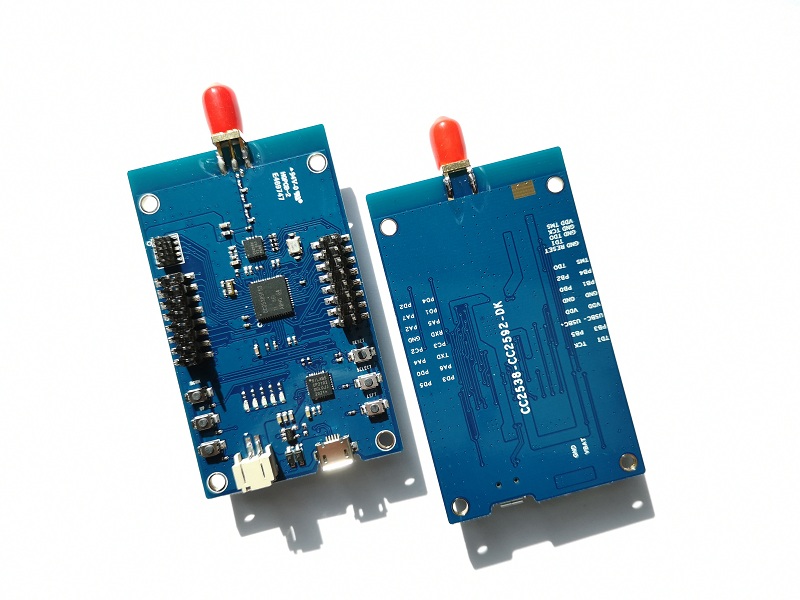

CC2538-CC2592-DK Development Board for Contiki 6LoWPAN Zigbee2mqtt Home Assistant SLS Gateway

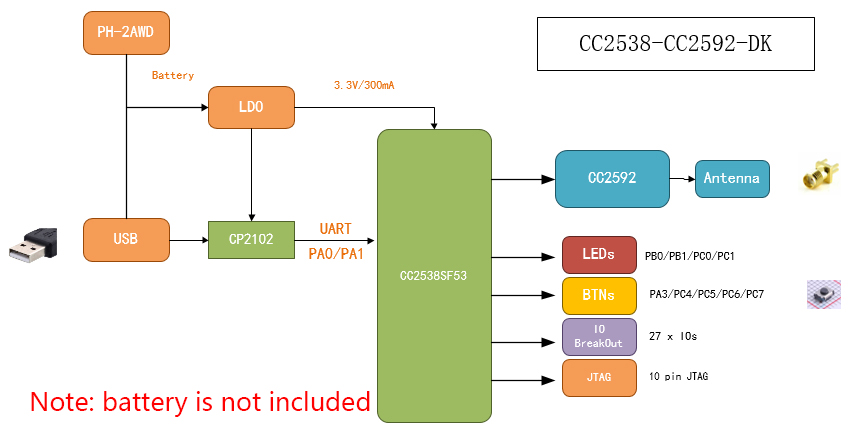

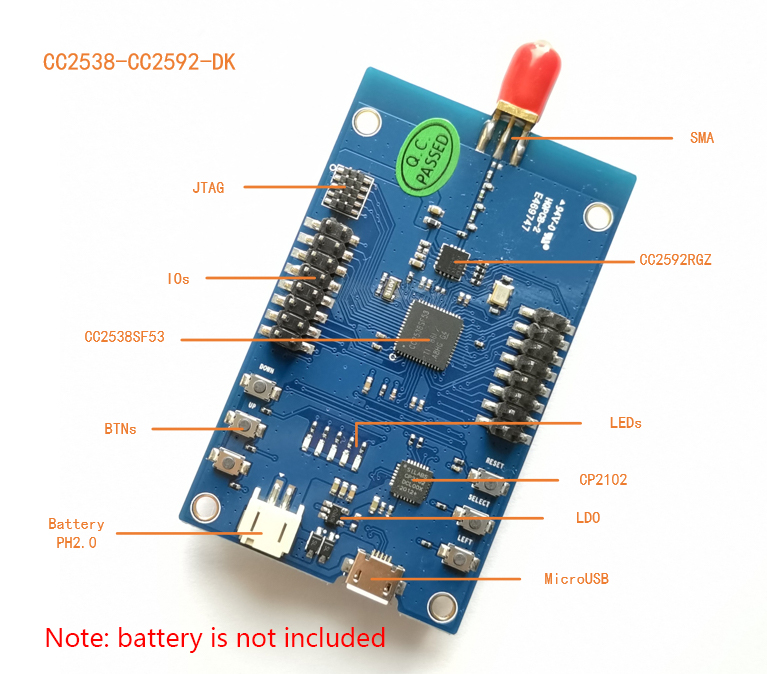

Main Parameters:
- Antenna: SMA 2.4G
- On-board chip: CC2538SF53RTQ, CC2592 (PA), and CP2102 (USB to serial)
- RAM: 32KB
- Flash: 512KB
- GPIO: 32
- Debug: 10PIN JTAG (1.27mm pitch)
- Power: 3.6V~5V
- Button: x6
- LED: x4
Introduction:
- Compatible with CC2538-CC2592 Evaluation Module Kit
- Easy to run contiki (6LoWPAN) or Thread
- Easy to run Zigbee examples for TI SDK
- Easy to run Zigbee2MQTT, co-work with ESP32 to act as SLS Gateway https://github.com/slsys/Gateway https://slsys.github.io/Gateway/
- Find more info about the design and hardware within this repositories https://github.com/knowic/CC2538_CC2592_DK

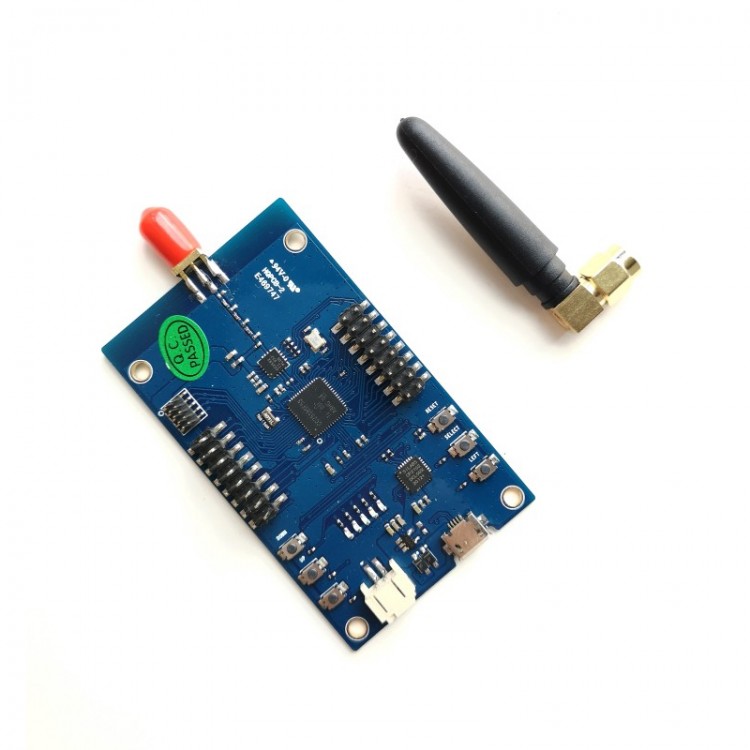

Package Included:

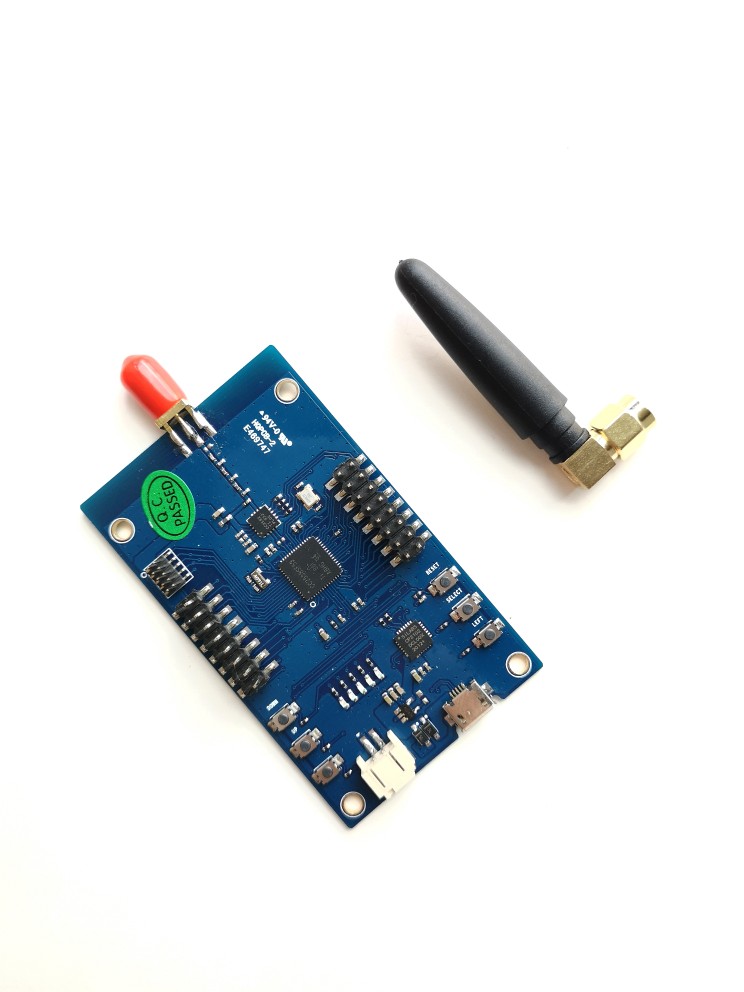

- 1 x CC2538-CC2592-DK Board
- 1 x Antenna
Note:
- Battery is not included.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!

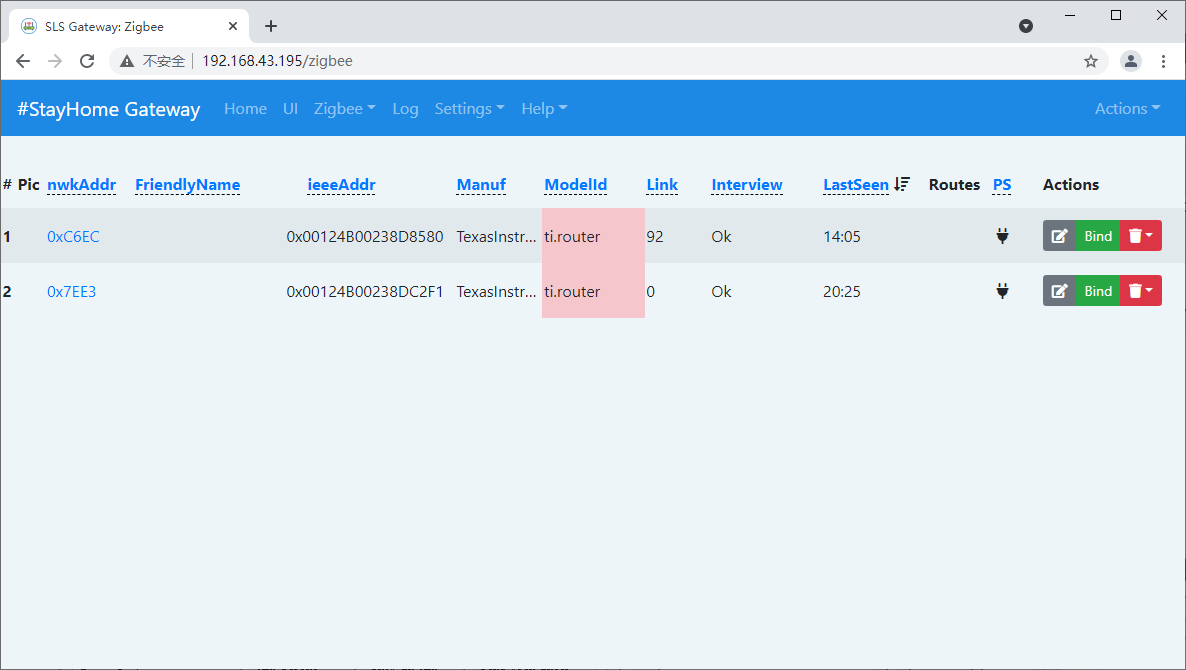

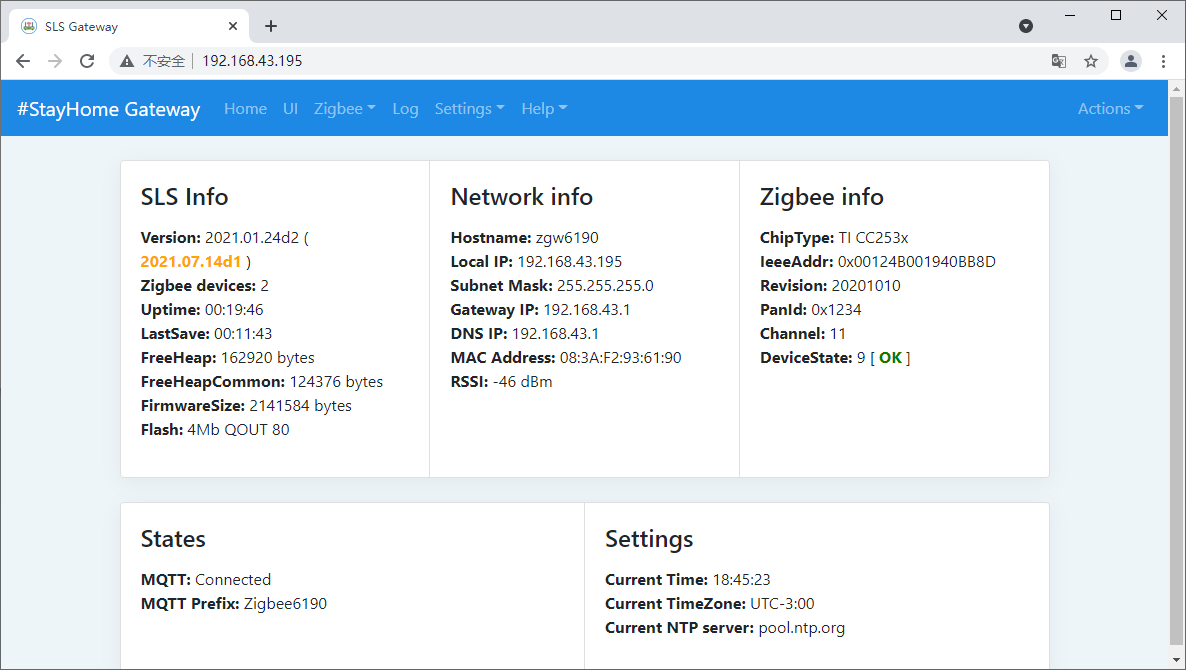

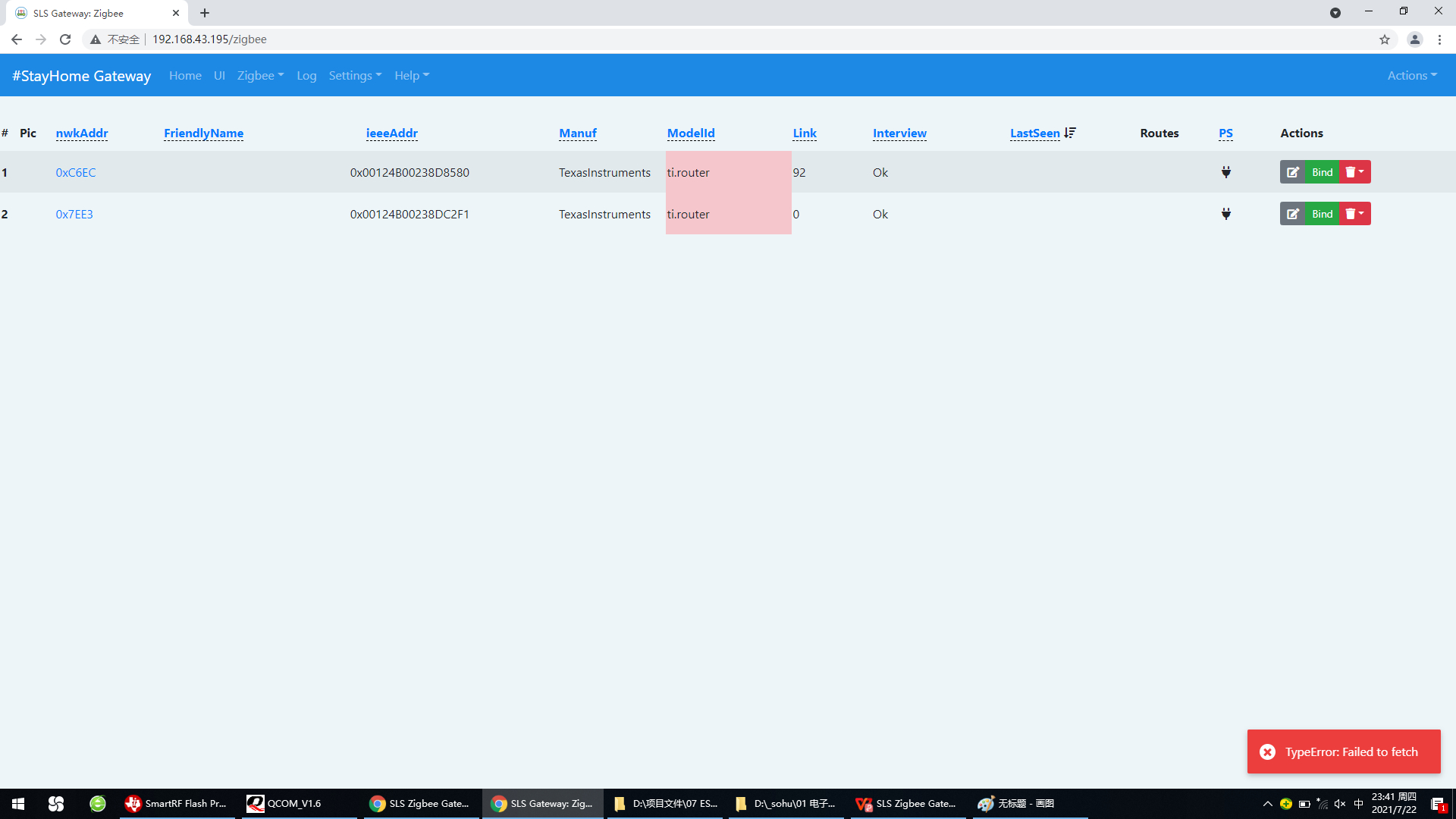

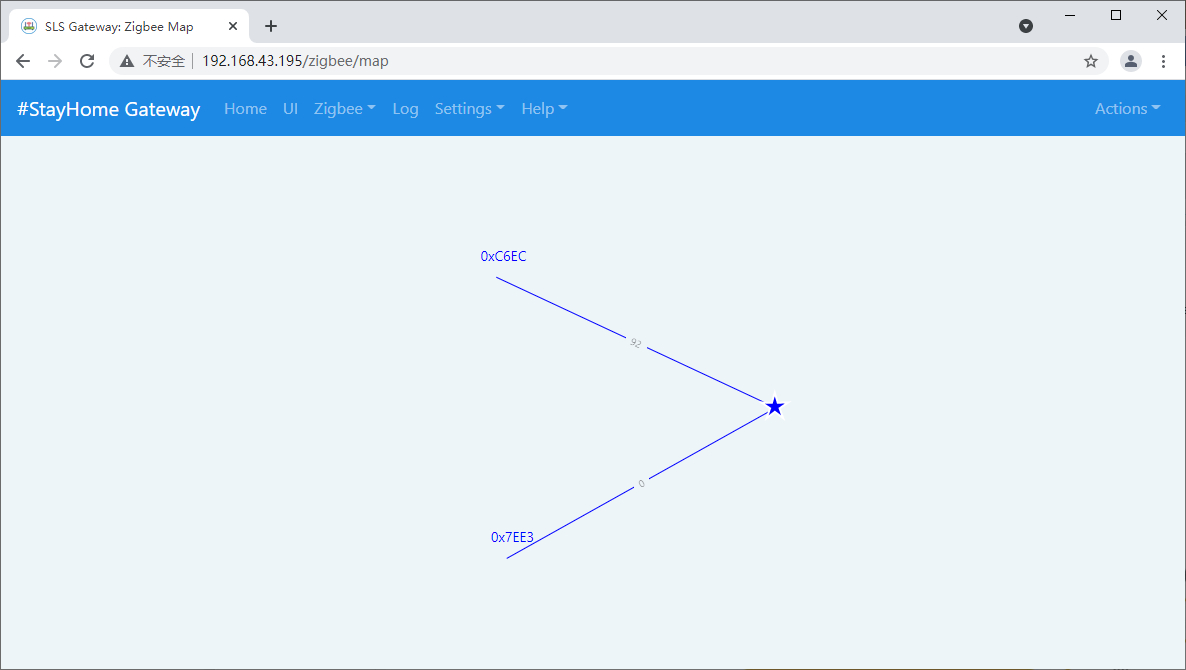

SLS Gateway:

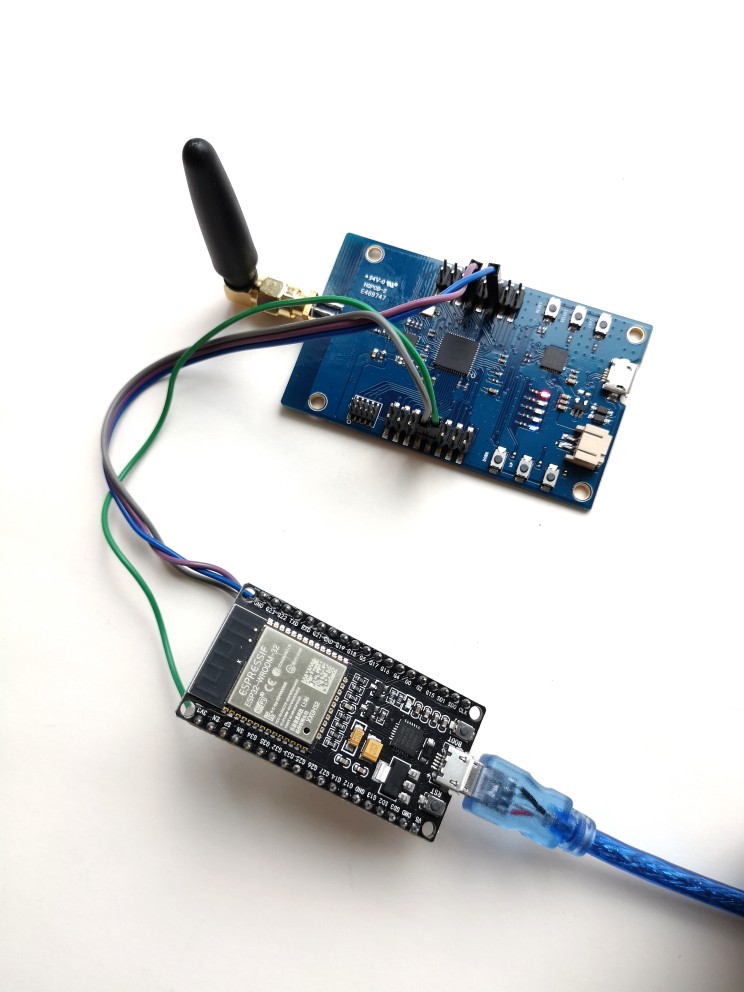

Connection:
(ESP32) G23 --- RXD/PA0 (CC2538)
(ESP32) G22 --- TXD/PA1 (CC2538)
(ESP32) 3V3 --- VDD (CC2538)
(ESP32) GND --- GND (CC2538)
