CC2540 BLE 4.0 Low Power Consumption Wireless Module Development Board

CC2540 BLE 4.0 Low Power Consumption Wireless Module Development Board

Description:

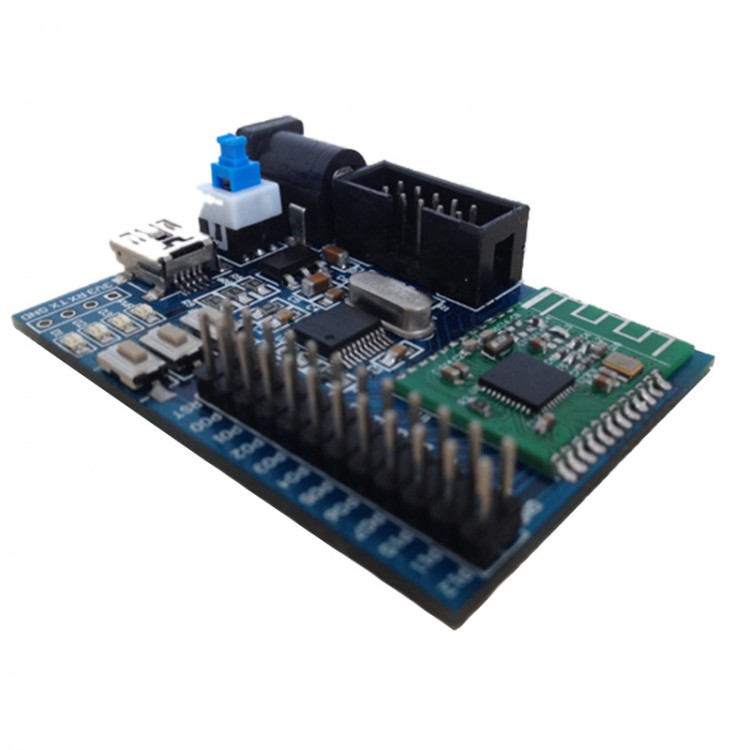

WM-2540-SM is the development board which bases on TI Bluetooth 4.0 chip CC2540 to design. The CC2540 module uses patch welding on the development board, Reserve module 10 are all made of 2.54mm standard needle leads,IO resources are rich. Using the PCB antenna and no need to connect the extemal antenna. It is convenient for the clients to do experiment and DIY his work.

Product function characteristics:
- 8051 Microcontroller-128KB0r256 KB built-in flash memow, 8KB SRAM.
- Fully integrated radio frequency function. LOW power-consumption bluetooth(1Mbps GFSK ）
- A complete solution. the system single chip 2.4 GHz,outline of the software, and application suppoft
- Leading radio frequency efficiency which is up to +97dB link budget, Can be used in a wide range of communication, Have excellent co-existence with other 2.4GHz devices
- integrate USB to TTL chip, using the mini USB connector to make a serial PO communication
- Reserve DEBUG connector compatible TI Standard simulation interface.

Performance parameter:
- Power supply voltage: 5V（ DC/USB ）
- Working frequency: Working in 2.4GHz
- Channel: 8 channels and configurable ratio 12 analog-to digital conversion ， integrated high-perfonnance comparator
- Inerface: 21 multi-functional IO connectors, 2 UART connectors, one full-speed USB connector
- byte:16 bytes, 2 pieces 8 bytes

Package included:
1xCC2540 BLE 4.0 Low Power Consumption Wireless Module Development Board
