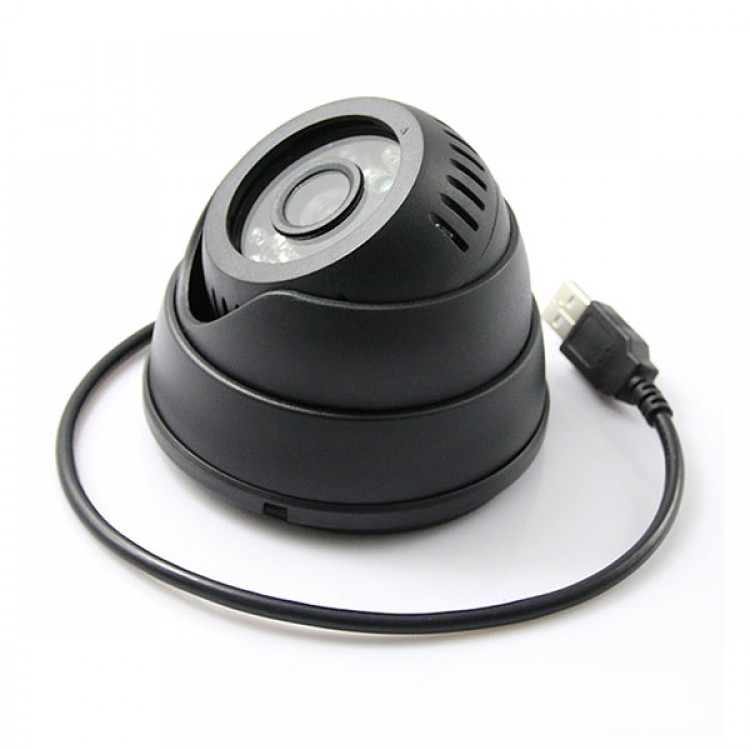

CCTV Security Camera 1/4" CMOS IR Cut Night 24 LED 3.6mm Dome IR Function
Specifications:
- Crisp, clear state of the art imaging
- Built-in infrared LED, may work under zero degree of illumination environment
- Powerful 1/4" Color CMOS colour image sensor chip
- 24 pcs (Φ5mm, 10U) IR LED illuminators, view up to 20m
- Built-in IR Cut
- Indoor use for day / night
- Auto back light compensation
- Plastic housing
Technical Information:
Image Sensor |
1/4" Color CMOS |
Lens |
3.6mm |
System of Signal |
PAL / NTSC |
Effective Pixel |
- PAL: 752(H) x 582(V) |
Horizontal Resolution |
800 TV Lines |
Video Output |
1.0Vp-p, 75Ω, BNC |
S/N Ratio |
>48 db (AGC off) |
IR LED |
24 pcs (Φ5mm, 10U) |
Minimum Illumination |
0.1 Lux, 0 Lux (IR on) |
Night Vision Distance |
approx. 20 Metre (65 feet) |
Auto Electronic Shutter |
1/60 ~ 1/100,000 sec |
Auto Gain Control |
Yes |
Auto Trace White Balance |
Yes |
Auto Back Light Compensation |
Yes |
Auto Electronice IRIS |
Yes |
Camera Dimensions |
approx. 85mm (H) x 90mm (Diameter) |
Operation Temperature |
-20°C ~ 65°C |
Body Material |
Plastic |
Body Color |
Black |
Quantity | 1 |
Power Supply |
DC 12V, 1000mA |
