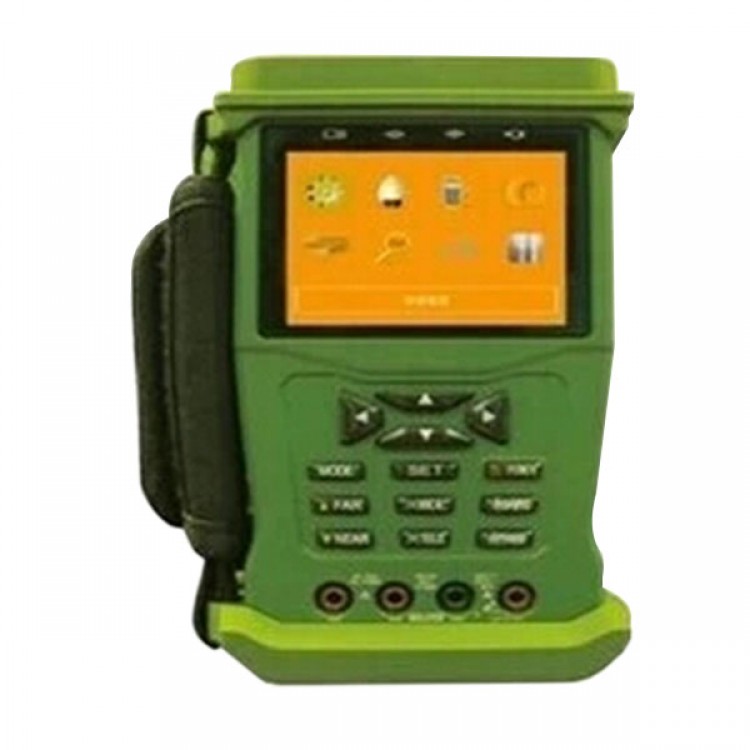

CCTV Tester Video 3.5“ Monitor A/V PTZ Controller 12V 1A Output UTP Multimeter
Description:
* Digital Multimeter functions;
* Audio Test;
* Video Test;
* PTZ Controller;
* DC12V 1A power output for camera;
* 485 address search function;
* RS485 Data Test;
* UTP Cable Test;
* Battery capacity display level on screen function;
* High performance battery, longer working time;
* OSD menu, easily control;
* Support more than 10 kinds of RS485 Protocol.
| Model | Multifunctional CCTV Tester GA-K695P |
| Signal Mode | NTSC/PAL automatically suitable |
| Display | 3.5 inch LTPS LCD screen, 960x240 resolution |
| Video Input/Output | 1 Channel BNC |
| Communication | RS485 |
| Protocol | PELCO P/D and so on, special protocol customized |
| Baud Rate | 1200, 2400, 4800, 9600, 19200bps |
| Power Output | DC12V, supply power to camera |
| UTP Cable Test | Test UTP Cable connection state and display on the screen. |
| RS485 Data Test | Test the RS485 data sent from control device. |
| Power Supply | DC9V/2A |
| Battery | 1400mAH |
| AC/DC Voltage | 0~300V |
| AC/DC Current | 400.0uA, 4000uA, 40.00mA, 400.0mA, 10A |
| Resistor | 400.0?, 4.000K, 40.00K,400.0K, 4.000M, 40.00M |
| Capacitor | 4.000nF~400.0MF |
| Diode | 0~2V forward voltage, min. resolution: 1mV |
| Switch/off Test | <50? sound alert |
| Test Speed | 3 seconds per once |
| Work Temperature | -30°C~+70°C |
| Work Humidity | 30%~90% |
| Dimension | 105*44*188 mm |
