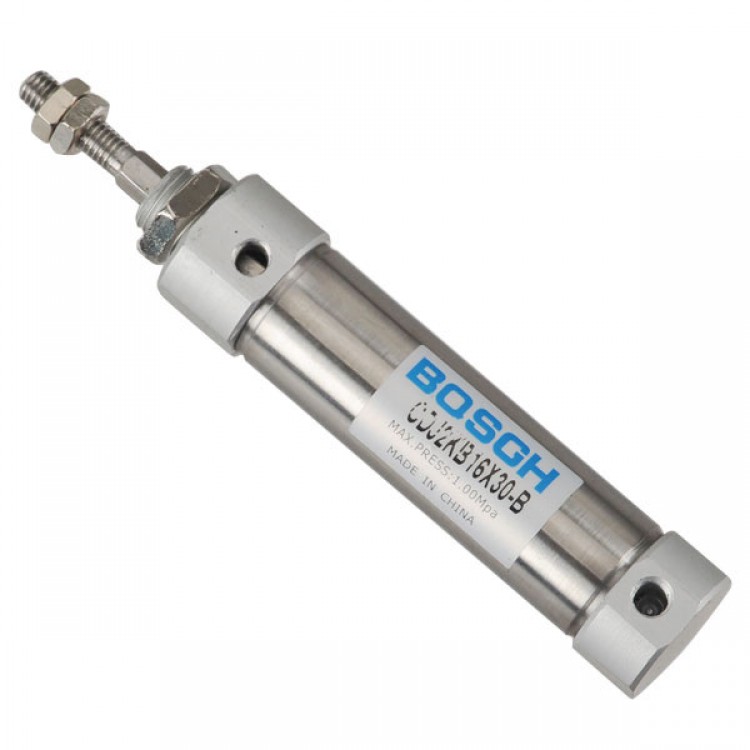

CDJ2KB 16x30-B 10mm Bore 30mm Stroke Stainless Steel Mini Pneumatic Air Cylinder
Specfications:
- SMC standard Mini cylinder CJ2 series cylinder.
- Cylinder Tube: Stainless Steel
- Normal Bore Size: 16mm
- Normal Stroke Size: 30mm
- Adjustable Cushion: With or without
- Magnet and Sensor: With or without
- Acting Type: Double acting (normal)
- Proof Pressure: 1.35MPa
- Max Operating Pressure: 1MPa
- Min Operating pressure: 0.05MPa
- Temperature: 0C~70C
- Oil: No need
- Fixing Type: Basic, LB, Y, I, Bearing type, Floating type
Note:
CDJ2B-S single action cylinder
CDJ2KB--with non-rotated piston rod
CDJ2D--with double U hook at the end
