CDT-5 CD Audio CD Turntable CDM4 Classic Mechanism 30000uF Audio Capacitor High Precision OCXC 115VAC/230VAC
Description:

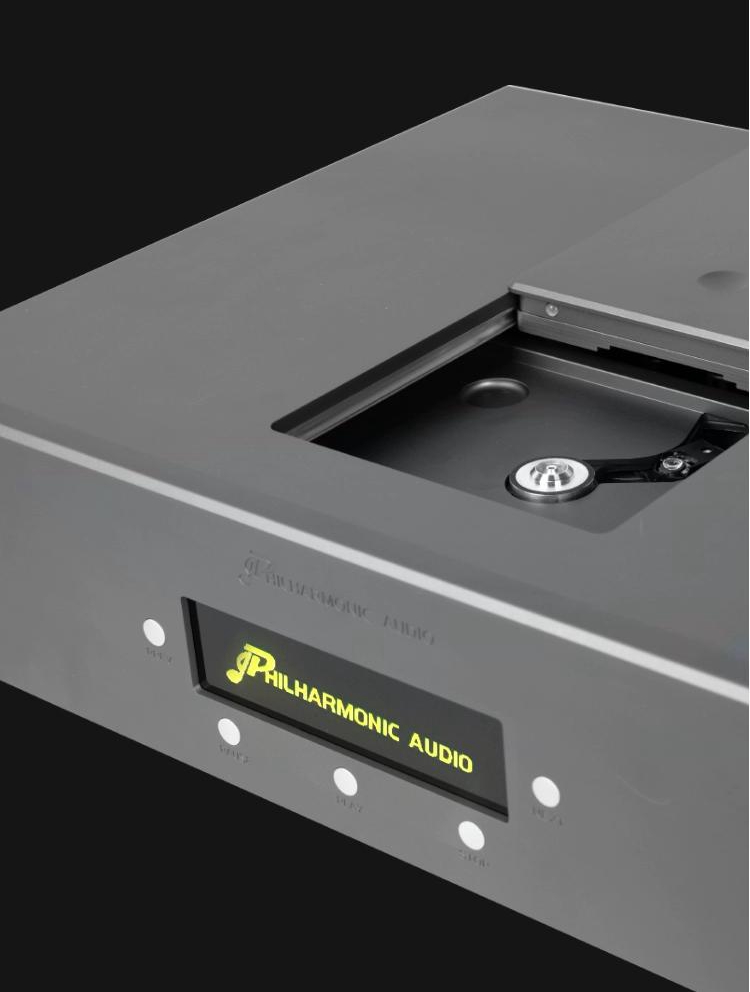

- Adopting for Philips M4 mechanism with multiple sets of linear regulated power supply design, built-in military grade OCXO, providing external input and internal output. The first component that affects the sound quality of a CD player is the CD player turntable, which includes the spindle, spindle motor, laser head servo module, and other components, with excellent durability and musicality.
- Sound characteristics: warm and delicate, high density, good musicality, rich details, large dynamics, stable and complete sound field scale.
Features:
- New digital output circuit, more comprehensive quality and musicality.

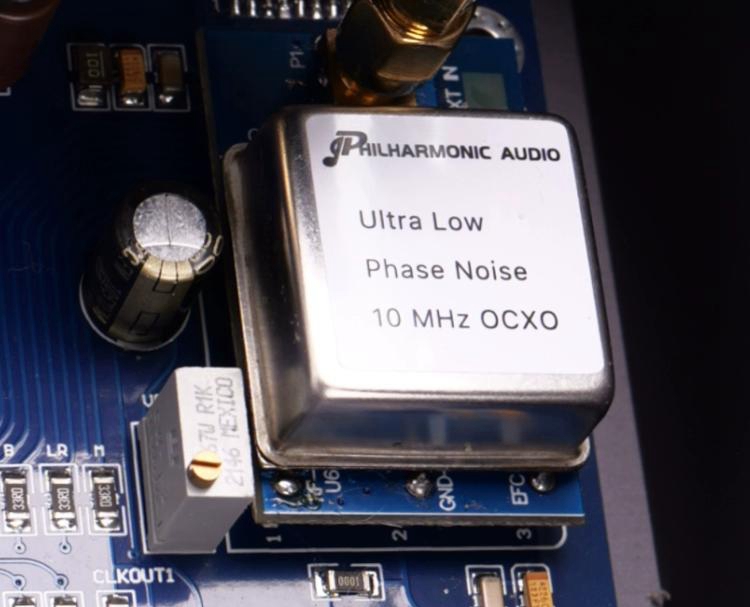

- High precision and ultra-low phase noise military OCXO.
- The sampling rate can be increased to 176.4KHZ and can be freely switched.
- The multi groups linear voltage stabilizing circuit is independently powered, with a total filtering capacity of up to 50000UF.
- Each device is made and welded by pure manual audio exclusive silver solder, which is round, beautiful, and durable. All materials are made and calibrated using imported HiFi components to ensure high-quality performance of the turntable.

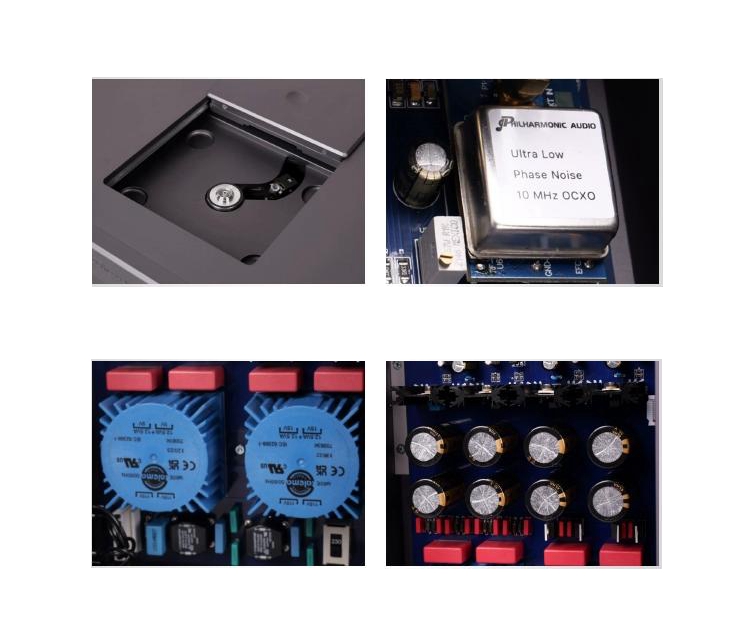

- Adopting an integrated motherboard design scheme, the signal channel is minimized as much as possible. It also adopts for American professional grade audio dedicated digital output isolation transformer, imported military ultra-low phase noise OCXO, FOR AUDIO audio large capacitor, high-frequency low resistance electrolysis, capacitors and other imported parts. Two British sealed transformers for TATEMA provide independent power supply to the movement and digital output module, and the power supply and digital module are separated by thickened metal to prevent interference.

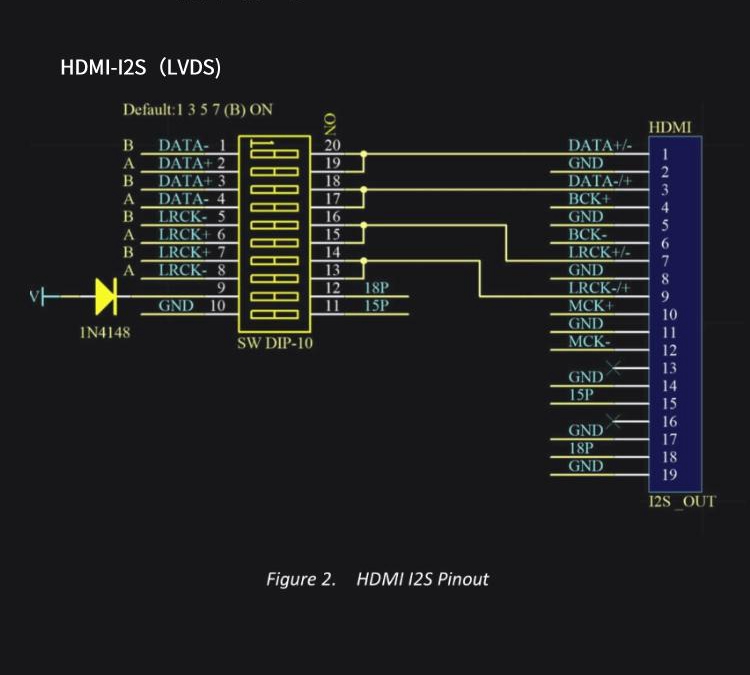

- A brand new digital audio receiving circuit, providing COAX, AES, HDMI-I2S, with full interface support for 44.1k or 176.4kHz frequency output.
Specification:
- Power consumption: 15W
- Working voltage: 115VAC/230VAC
- Fuse: 1.6A x 1 (5 x 20mm)
- Size: 130 x 450 x 370mm
- Net weight: 14kg
- Packaging weight: 17kg
Input and Output:
- Digital audio signal output: Coaxial x 1, AES x 1, BNC x 1, HDMI-I2S x 1
- Output frequency: 16Bit/44.1KHz or 24Bit/176.4KHz
- Clock interface: 10MHz input x 1
Package Included:
- 1 x Host
