Feature:
- FTTH applicable to the environment, can also be used for ordinary optical fiber engineering
- The PAS core to ensure accurate alignment, low connecting loss
- 9seconds - 30 seconds of welding, heat shrinkable
- The X/Y axis X/Y axis or a separate display shows at the same time, 200/300 times magnification
- 5 - inch digital high-definition LCD screen, while observing the X axis and Y axis direction of the optical fiber
- Three in one fixture, welding core, flex, pigtail
- The built-in high-capacity lithium battery, can be completed 180 times and continuous heating
- The small size and light weight, only 2.5kg with battery
Specifications

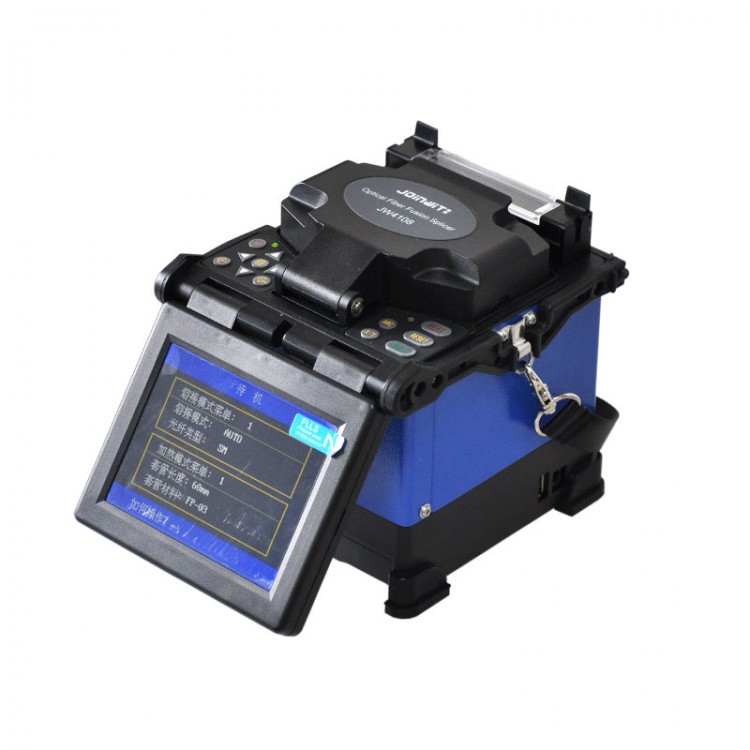

- Model: FTTH Fusion Splicer
- Language:Chinese/English
- Splicing Type: SM, MM, EDF, NZDS
- Splicing Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS),0.04dB(EDF)
- Return Loss: >60dB
- Splicing Mode: Manual, Half Auto, Auto
- Applicable Fiber Cable: Indoor And 0.25mm,0.9mm Fiber, SC Connector (Option)
- Splicing Time: ≤10s
- Heat Time: ≤30s
- Cleaved Length: 8～16mm
- Fiber Image/ Magnification: 300/200 Times
- View Display: 5 Inch Digital High-Quality LCD Screen
- Tension Test: Standard 2N (Option)
- Heat Shrinkable Sleeve: 60mm, 40mm And Serials Heat Shrinkable Sleeve
- Battery Capacity: 180 Cycles Splicing And Heating (Splicing And Charging At Same Time)
- Construction Lighting: Built In High Brightness, Wide Range Of Lights, Easy To Operate At Night
- Power Supply: Built In Lithium Battery 8Ah 12V; External Adapter, Input: AC100-240V, Output: DC15V/5A
- Operating Condition: 0-5000m Above Sea Level
- Temperature: -10-+50℃
- Humidity: 0～95%RH (No Dew)
- Weight (Including Battery): 2.5 KG (Including Battery)
- Dimension (LxWxH): 165mm(L) × 155mm(W) × 150mm(H)
Package included
1, Machine ( JW4108 ) --- 1 PCS
2, Fiber Cleaver ( 601-1071 ) --- 1 PCS
3, Fiber Stripper --- 1 PCS
4, AC Adaptor ( 602-120500D ) -- 1 PCS
5, Battery ( 603-1072 ) -- 1 PCS
6, Charger ( 602-126250w ) -- 1 PCS
7, Spare Electrodes -- 1 PCS
8, Cooling Tray -- 1 PCS
9 , Rubber-insulated wire stripping pliers -- 1 PCS
10 , Transit Case with Carrying Strap -- 1 PCS
