CEACENT CNS44PE16 NVMe U.2 to PCIe 3.0 X16 Adapter Board Expansion Card Support SFF8654 NVME.2 Backboard
Advantages:
- Professional installation line: standardized and beautiful layout, strong circuit performance to avoid hidden dangers.
- Professional QC quality management: to avoid transmission signal interference and ensure stability without serious lag.
- Rigorous testing process: high reliability, strong stability, and more durable.
- No need for motherboard splitting, with PCIe channel splitting control button, easily split into two modes: X8X8 or X4X4X4X4X4, both suitable for ALEO project PCIe expansion.
Specification:
- Brand: CEACENT
- Model: CNS44PE16
- Master chip: Broadcom PLX8748
- Bus bandwidth: 4GB/s (single driver)
- Bus interface: PCI Express 3.0 X16, and backward compatible with PCI Express 2.0
- Connector type: SFF8654 X8 (Slim SAS)
- Channel: 4 ports
- LED indicator: not support
- Full height/half height: PCBA half height
- Power protection: 5A
- PCB version: REV:A
- Certification: FCC, CE, ROHS
- Applicable situation: with PCI Express 3.0 X16 plug slot
- Working environment: 0℃ ~ +55℃, humidity 85%
- Storage environment: -20℃ ~ +65℃, humidity 85%
- Size: 167 x 69mm
- Supported operation system: all systems that need to support the NVMe protocol
- Support: only support NVMe U.2 hard drive

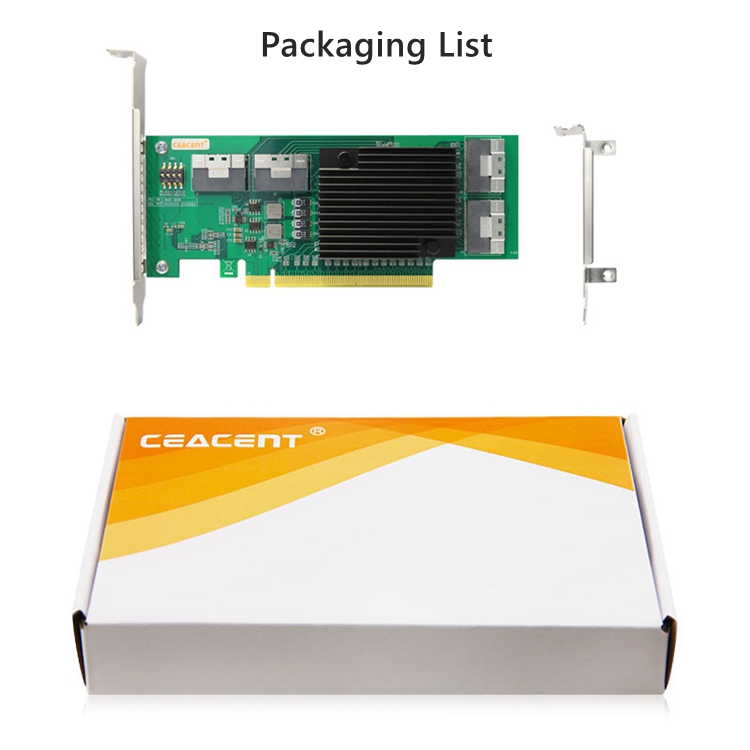

Package Included:
- 1 x Adapter Card
- 1 x 2U Barrier Plate
