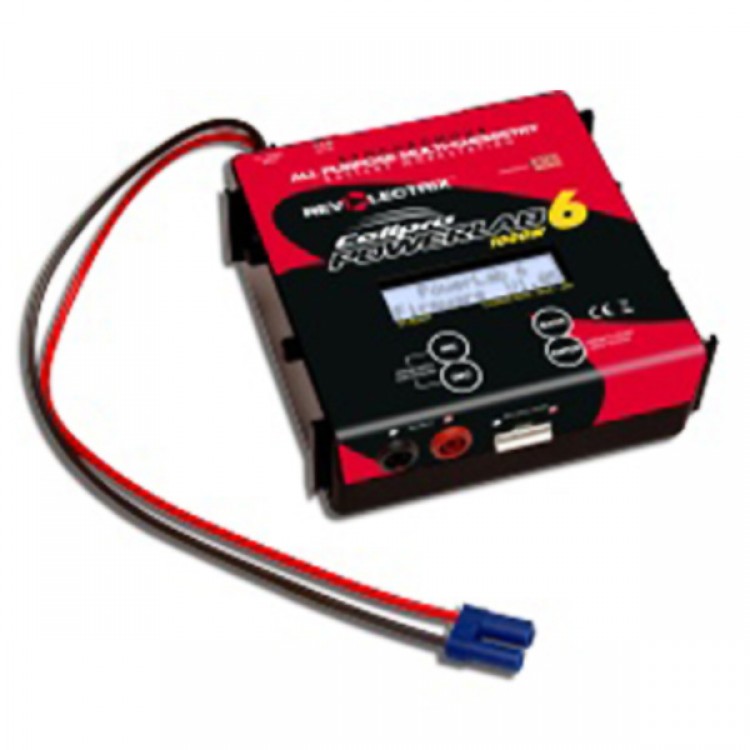

Cellpro PowerLab 6 1000W Charger CPL6-Combo for RC Helicopters Airplane

Cellpro PowerLab 6 1000W Charger RC Helicopters CPL6-Combo

Specifications:

-For Battery types: Lithium Polymer (1s to 6s balanced, 1s to 2s unbalanced), Lithium Ion (1s to 6s balanced, 1s to 2s unbalanced), Lithium Manganese (1s to 6s balanced, 1s to 2s unbalanced), A123 (LiFePO4) (1s to 6s balanced, 1s to 8s unbalanced), NiCd (1s to 19s), NiMH (1s to 19s), 6v, 12v, 24v Lead Acid batteries (Flooded, Gel, AGM, SLA)
-Pack capacity: 20 mAh to 360Ah
-Input voltage: 10-32VDC, reverse polarity protected
-Input current: 1A to 40A, software limited
-Power conversion: Synchronous DC/DC converter, supports multiple switcher frequencies of 31.25 kHz, 62.5 kHz, 125 kHz; user selectable by preset, 85% to 93% efficiency depending on output current
-Output battery charge current: Adjustable range 10mA to 40A, limited by 40A input current*
-Output battery discharge current: Internal discharge 10mA to 8A, 50W max Regenerative discharge 10mA to 40A, 1000W max**
-Continuous max output power: 408W @ +12VDC input, 1000W @ +30VDC
-Cell balancing: Resolution 78uV (16 bit) for 1s-8s Li or A123 (LiFePO4) balanced charging
-Voltage calibration: Cell voltage measurements are factory calibrated to a standard traceable to NIST; calibration is to +/- 6 mV
-Current calibration: Charge current is factory calibrated on a 4A standard; calibration is to +/- 1mA
-Measurement accuracy:
-Voltage resolution: 78uV (16 bit)
-Voltage tolerance: +/- 6mV
-Charge current: +/- 1%
-Capacity added to pack: +/- 1%
-Percent capacity (“Fuel”): +/- 5% (with accurate fuel table defined for battery being charged)
-Serial data output: 19.2kbps, 8 bits, 1 start bit, 1 stop bit, no parity
-Data integrity: Checksum, CRC checking
-Cooling fans: Single, 13 CFM, 50mm diameter
-Heat sink: Internal 120W aluminum, thin finned
-Output battery connector: “Cellpro” compatible, JST PA series, 9 position
-LCD: 2 line, 16 character, light grey/blue backlit
-Size: 5.70" x 5.57" x 3.40"
