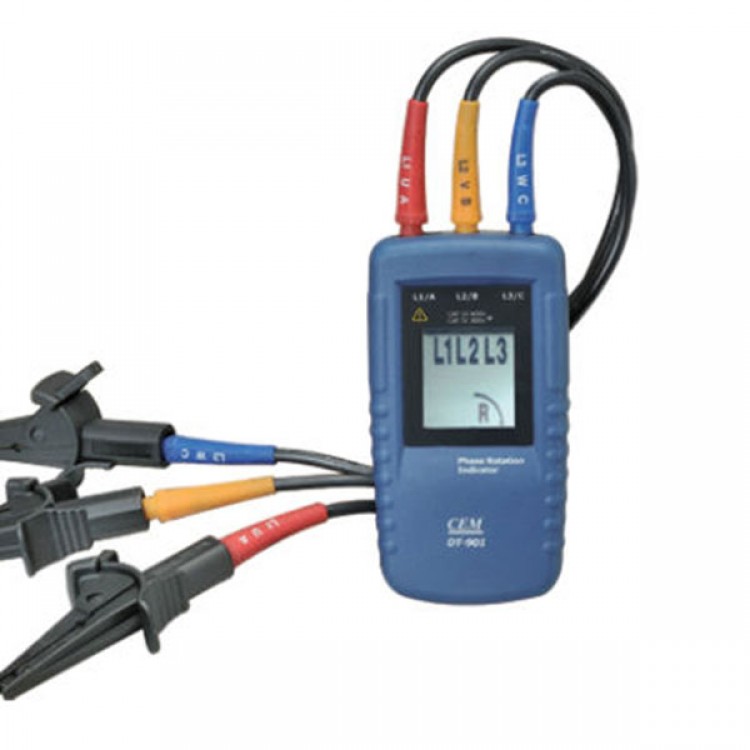

CEM Brand DT-901 Phase Rotation indicator Handheld Detector No Need Battery
The Phase Rotation Indicator is a handheld instrument designed to detect the rotary field of three-phase systems.
1. 3 Phase indication
2. Indication of phase rotation
3. Clear LCD display
4. No battery required
Specifications: | |
Nominal voltage | 40V to 690V AC |
Frequency range | 15 to 400Hz |
Current pickup | 1mA |
Nominal test current(per phase) | 1mA |
Power supply | From unit under test |
Electrical safety | IEC61010/EN61010; IEC61557-7/EN61557-7 |
Protection level | CATIII 600V |
Type of protection | IP40 |
Operating temperature | 0ºC to 40ºC |
