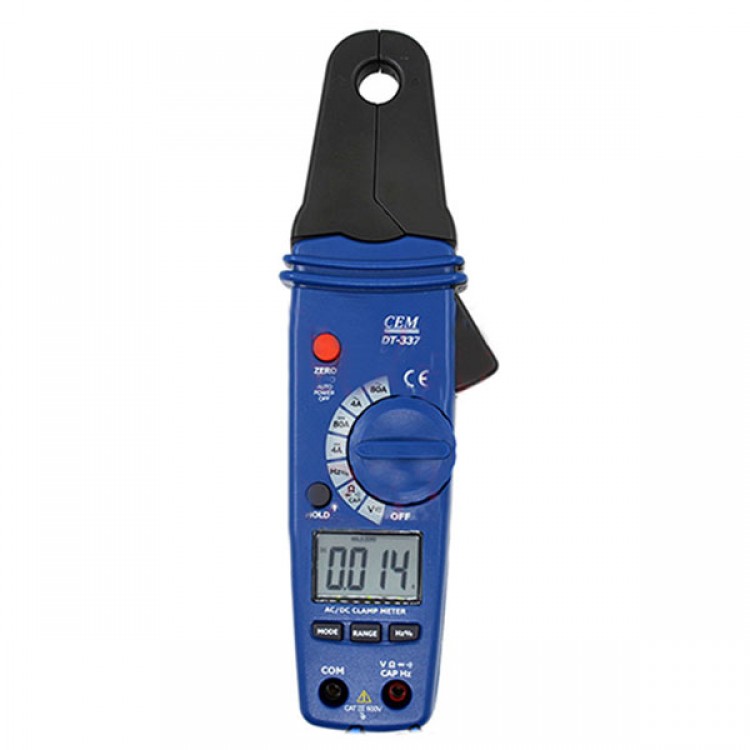

CEM DT-337 AC/DC Measurement Clamp Meter Tester Jaw to 0.5˝ 1mA High Resolution
Features:
|
Jaw opens to 0.5˝ |
|
1mA high resolution |
|
Digital clamp tester for AC/DC current measurement |
|
Providing wide measuring range from very small to large current |
|
Designed to safety standard IEC 61010-2-032: CAT III 600V and pollution degree 2. |
|
Data hold and Max hold function |
|
Dynamic range of 4000 counts full scale |
|
Auto power off |
Specifications:
|
Function |
Range |
Max. Resolution |
Basic Accuracy |
|
Current AC |
4A, 80A |
1mA |
±(2.5%+5d) |
|
Current DC |
4A, 80A |
1mA |
±(2.5%+4d) |
|
Voltage AC |
400mV~600V |
0.1mV |
±(2.0%+4d) |
|
Voltage DC |
400mV~600V |
0.1mV |
±(1.5%+3d) |
|
Resistance |
400Ω~40MΩ |
0.1Ω |
±(1.5%+2d) |
|
Frequency |
5Hz~10MHz |
0.001Hz |
±(1.2%+3d) |
|
% Duty |
5%~99.9% |
0.1% |
±(1.2%+3d) |
|
Diode Check |
Test current of 0.3mA, Open circuit voltage 1.5V |
||
|
Continuity Check |
Threshold 50Ω, continuity beeper 2.7kHz |
||
|
Size(HxWxD) |
210mm x 70mmx 37mm |
||
|
Weight |
200g |
||
Accessories:
- Test leads, Gift box with carrying case
