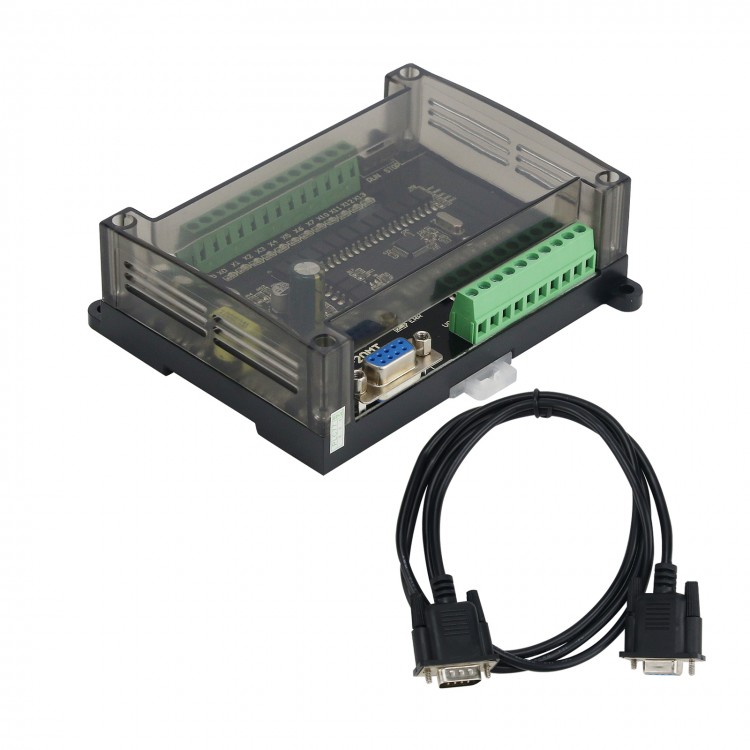

CF2N-20MT PLC Control Board Transistor Output High-Speed Programmable Logic Controller Chinese-Made

CF2N-20MT PLC Control Board Transistor Output High-Speed Programmable Logic Controller Chinese-Made

Features:
- 20-point enhanced type PLC
- With 40K high speed, single communication port (RS232)
- Compatible with software for Mitsubishi PLC
- The programming method is the same as that for Mitsubishi PLC, it can be used without conversion software
- Chinese and English programming software for Mitsubishi GX Developer8.31 and others can be used
- Support text display, touch screen, computer online monitoring, power failure memory function
- 12 X isolated input ports, 8 Y isolated outputs
- The output is an NPN high-power transistor, and each channel draws an instantaneous current of 4A, and the normal operation is 2A
- Only one 24V power supply is required (many similar products require two independent power supplies)
- Has passed CE Certification
- Imported high-speed chips for ARM
- Support touch screen, text display, computer monitoring and encoder
- Support all touch screen connections for Mitsubishi PLC
- Support all text displays for Mitsubishi PLC
- Support two-way stepper motor
- Unique encryption technology. Unable to decrypt after encryption
- Support 32-bit instructions
- No need to convert. Download directly

Applications:
Can be used in various industrial automatic control situations, such as metallurgy, chemical industry, plastics, textile, food, packaging, printing, building materials, woodworking, central air conditioning, and environmental protection equipment. Also suitable for production machinery, industrial assembly lines, and industrial control equipment of various machine tools in industries such as single process control devices.

Specifications:
- Model: CF2N-20MT
- Points: 20 (12 input points and 8 output points)
- Output current per channel: 2A
- Power supply: 24V
- Shell: With
- Size: 145 x 90 x 41mm/5.7 x 3.5 x 1.6"

Package Included:
- 1 x PLC Board
