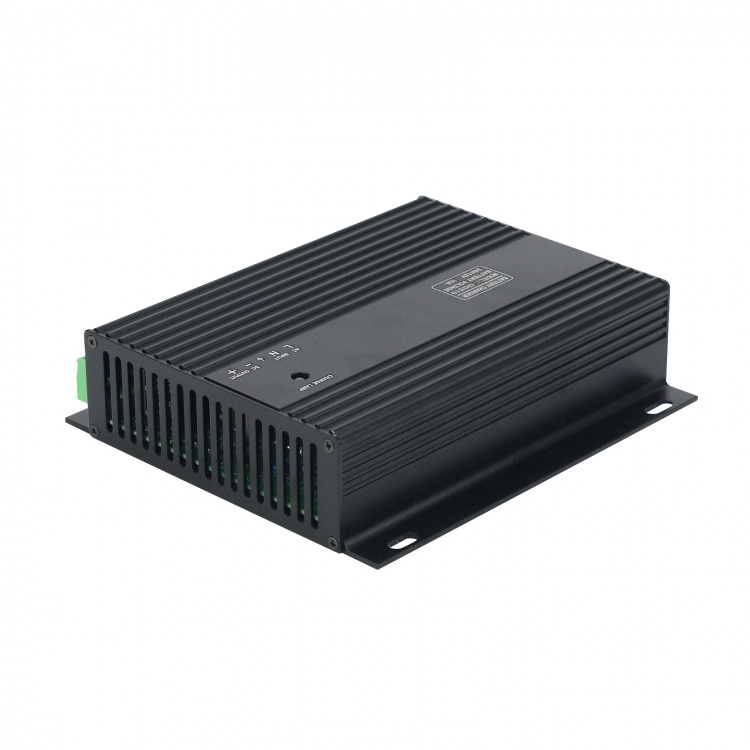

CH2810 Automatic Start Battery Charger Diesel Generator Set Battery Float Charger 24V/12V 10A

CH2810 Automatic Start Battery Charger Diesel Generator Set Battery Float Charger 24V/12V 10A

Features:
- Durable
- Stable performance
- Fast response
- Multi-stage charging
- LED charging status indicator
- Waterproof and moisture-proof epoxy resin material
- Over-temperature protection function

Product Parameters:
Model: CH2810. 10A: 146MM*163MM*41MM; Net weight: 650G
1. The working voltage is AC160~250V, and the working frequency is 20~100HZ, which can ensure that your engine can still be charged at low speed (idle speed)
2. It can be charged directly by the electric energy of the diesel generator set to replace the body charger
3. It can be used in a non-condensing humid environment with a temperature of -40℃ to +50℃and a relative humidity of 98%RH
4. Motor can be started while your battery is being charged by the mains
5. Suitable for charging lead-acid batteries, especially for fully-sealed solid wide-temperature batteries
6. The product series include various models such as 10A, 5A, 3A, etc., please select and install according to your needs (the product package has a mark)
7. Constant current fast charge: When the voltage of the battery being charged is lower than the set value (12V battery pack <12V, 24V battery pack <24V), the charger will quickly charge the battery with a constant current
8. Current limit: When the charged battery is close to full (12V battery pack ≥ 12V, 24V battery pack ≥ 27.6V), it will automatically switch to a floating charge state, that is, charge with a current of about 0.1~0.2A (specifically and (Related to the power consumption of the powered equipment at the time)
10. Stop charging: When the voltage of the battery being charged reaches the charging setting value (14V at 12V, 28V at 24V), the charging output will be automatically turned off
11. Over-current and short-circuit protection: The product has perfect over-current and short-circuit protection. Due to the constant current characteristics of this product, when the battery capacity is large (the internal resistance is very small), the load is short-circuited, or it starts at the same time during the mains charging When starting the motor
12. Automatically identify the voltage level of the charged battery pack, and then automatically charge according to the battery voltage level

Package Included:
- 1 x Battery Charger

Note:
- Battery is not included.
