| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $3.43 | $3.36 | $3.26 | $3.12 | Contact US |

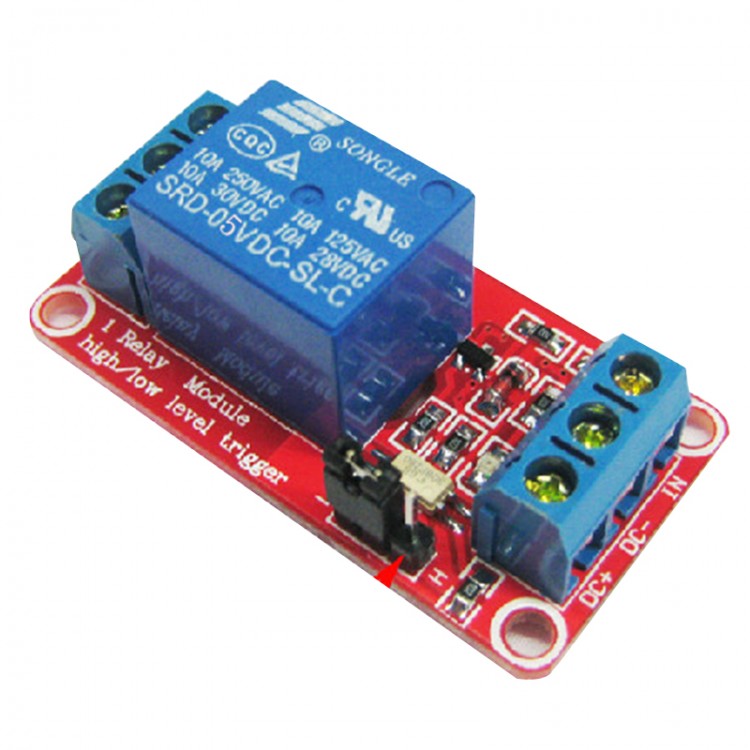

Channel 5V Relay Module with Coupling Support High Low Level Trigger Relay Module
Description:
- Adopting high quality relay, normally open interface Max load: AC250V/10A, DC30V/10A
- Adopting STM coupling isolation, strong drive, stable performance: trigger current 5mA
- Moudle working voltage has 5v,9,12,24v options
- Module can set high or low level trigger through jump wires
- Fault tolerance design, even the controlling line is cut off, the relay will not do actions
- Power light(green), relay state indicator (red)
- Interface humanize design, -all the interfaces can all be connected and lead out through connecting end, very convenient,
- Dimension: 50mm * 26mm* 18.5mm(L*W*H)
