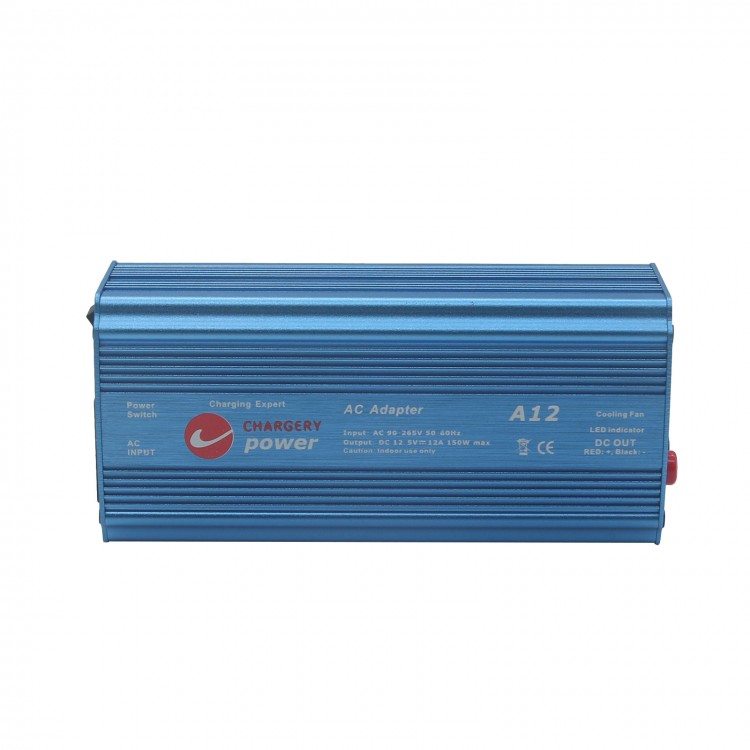

1.Model:CY-A12
2.Application:The Power supply is applied for any device with DC in 10-18V, It is designed special for high power charger and balancer charger applied to RC model.
3.Features:
Approved by CE
AC 90-265V worldwide use
Up to 87% of convert efficiency, save more energy.
Intelligent cooling fan, turn on automatically over 50°C
Switching technology assure the highest efficiency.
4.Environment Requirements:
Ambient Temperature : -10--40°C
Ambient Humidity:5%--95%
Storage Temp.:-20°C--70°C
Storage Humidity:30%--90%
5.Input:
Rated Voltage:AC110 / 220V
Voltage allowed:AC90 ~ 265V
Rated Freq. :50/60Hz
Freq. Allowed:47~63Hz
Max Current:1.19A @220V, 2.17A @ 110V
Efficiency: 87% max at 80% load and 220V.
6.Output
Voltage:12.0V (12.6V MAX)
Current:12.5A (13.0A MAX.)
Ripple voltage: 150mV.
7.Protection on output:
Over voltage protection
Over current protection
Over load protection
Short circuit protection
8.Indicator
Connect to AC power:RED
With load:RED
9.Mechanical Characteristics
Size:150x68x46 (LxWxH, mm)
Weight: 480g without input cable
AC plug can be customized
Output DC connector:4mm gold banana female connector
10.Operating Instructions:
Connect CY- A12 to a charger with DC in 10-18V
Plug CY- A12 into AC 110 / 220V outlet
Move the AC switcher to the ON position
Turn off the power supply when not use.
11.Warnings:
- Never leave the adapter unattended when it is connected to charger. If any malfunction is observed immediately terminated char
ging and refer to the operation instructions.
- Keep away the unit from dust, damp, rain, heat dire
ct sunshine and vibration. Do not drop it.
- The adapter and the charger to be charged should be set up on a head-resistant,
non-inflammable and non-conductive surface. Never place them on a car seat,
carpet or similar.
- Keep all the inflammable volatile materials well away from operating area.
- Do not attempt to charge any types of battery including below:Lead acid battery or VRLA;NIMH/NICd battery pack;li-ion and lithium polymer battery
12.Warranty and Service:
manufacture of R/C model power warrants its AC switching charger to be free of defects in material and workmanship. This warranty is effective for 12
months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect the accessory will be replaced or repaired. This warranty does not cover the damage due to wear, overloading, incompetent handling or using of incorrect accessories.
Package List:
- 1 x A12 v2.0 Switching power supply
