CHC-200F Upgraded Version Capacitive Torch Height Controller for flame CNC Cutting Machine

CHC-200F Upgraded Version Capacitive Torch Height Controller for flame CNC Cutting Machine

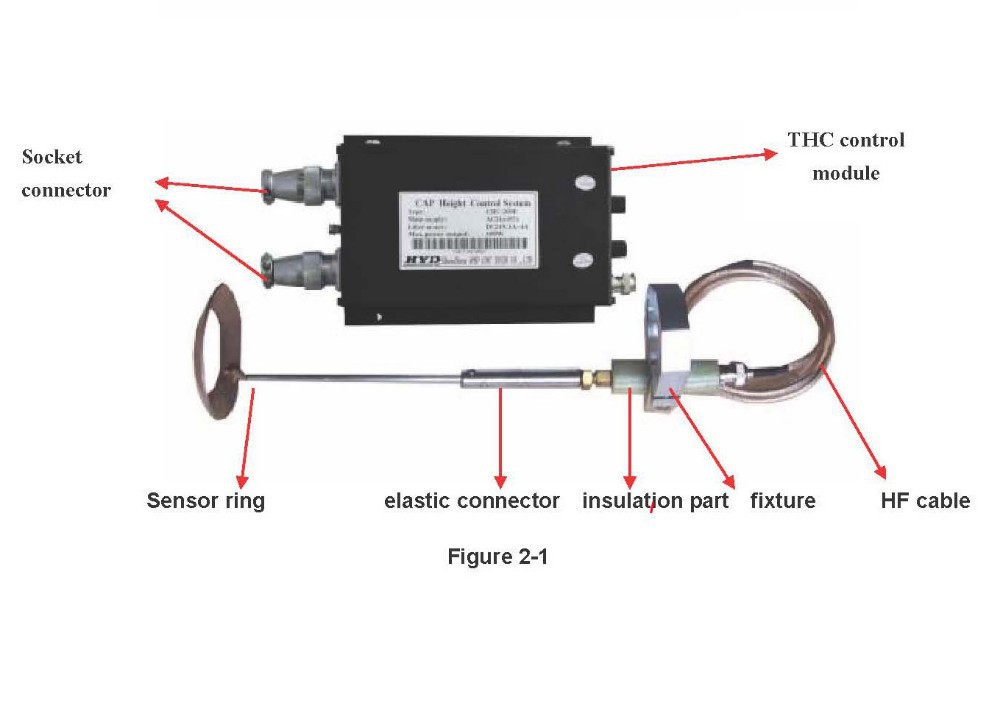

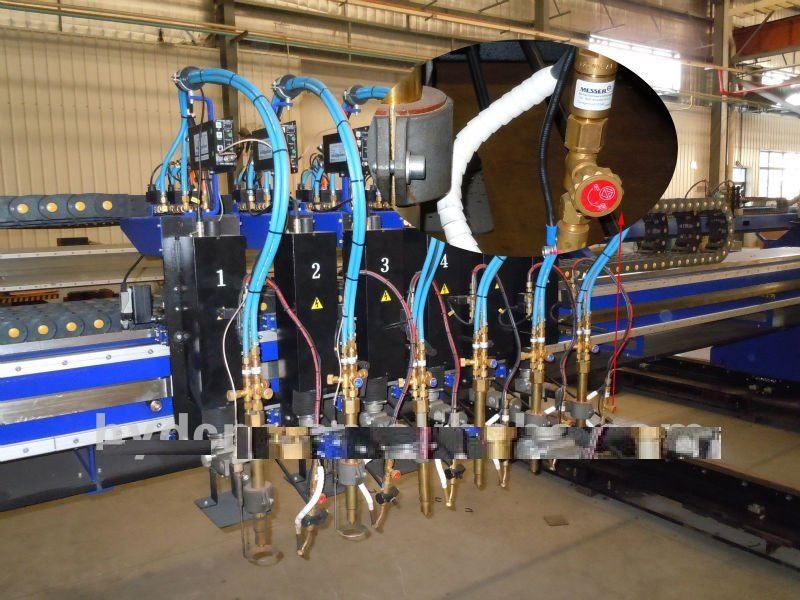

Insulation part (adapter),Fixture install diagram are as follows:

Product Description:
- CHC-200F is an upgraded version of CHC-200E/D, CHC-300 is AC24V and DC24V AC and DC generic function has been greatly improved.
- CHC-200F and CHC-300 can be used for flame cutting, CHC-300 can also be used for laser cutting. High version can be used to replace the low version, but the low version can not replace the high version.

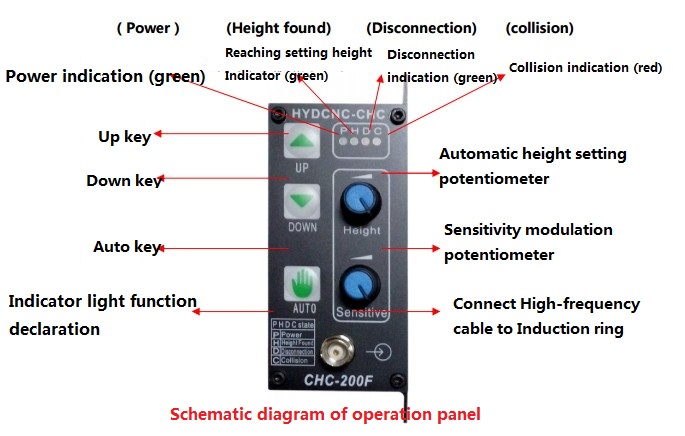

- The operation panel design, the use of a dust-proof film panel, increased the balance point to reach the instructions, broken line instructions, collision instructions, collision signal output and other functions, debugging more convenient.
- Any state of anti-collision function. After power is applied as long as the probe ring metal is met, will immediately increase the control torch at the highest speed, also issued a collision signal, better protection of the probe and connecting parts.
- The sensitivity is greatly improved, the overshoot smaller, more convenient debugging.
- The power can be easily changed, the maximum current can be increased to 16A, due to the use of lower internal resistance of power devices, less heat.

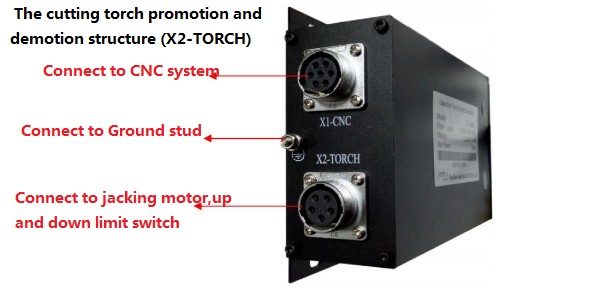

- CHC-200F and CHC-300 regulator interface is the same, the difference is that the side of the label.
- CHC-200F size, interface and consistent with the previous CHC-200E/D, easy to replace.
CHC-200F is mainly used for flame cutting machine height (power supply voltage AC24),CHC-200F can completely replace the 200E/D (interface and installation dimensions are exactly the same)

Specifications:
- CHC-200F regulator is a new high-performance 32 bit ARM processor with analog circuit design of the regulator, the interface is compatible with the size of the installation of old products (CHC-200D, CHC-200E).
- CHC-200F: Cap THC for flame cutting
- Newest torch height controller
- Best accuracy 0.1mm
- New anti-collision function design.
- It is the newest cap THC we designed for flame cutting,  stand alone type, support any cnc controller, widely used by almost China manufacturers, include Koike China, Messer China,  AMG...etc.
- It works with AC24V or DC24V,  support DC 24V motor below 100A.

Comparing to CHC-200D, CHC-200F has new features as follow:
- Increased more indicators to shows different states of THC.
- Output of collision-alarm, which is optical isolation output from THC, can be sent to CNC’s Alarm input to freeze machine’s move. This signal is effective on both manual/auto mode. The max output is 200mA, capable to drive most relays.
- Anti-collision function. On manual/auto mode, when metal or low-conductive item like hand touches sensor ring, THC would send out collision signal and lift torch up until no collision exist.
-  When HF cable is disconnected or weakly connected, it would be indicated on the disconnection indicator. So after installation of HF cable, just shake the HF cable, the connection will be showed by the indicator.
- Sensitive and Accuracy is increased 100%.
- CHC200E uses digital logic control circuit for logic control, greatly improved anti-interference performance.

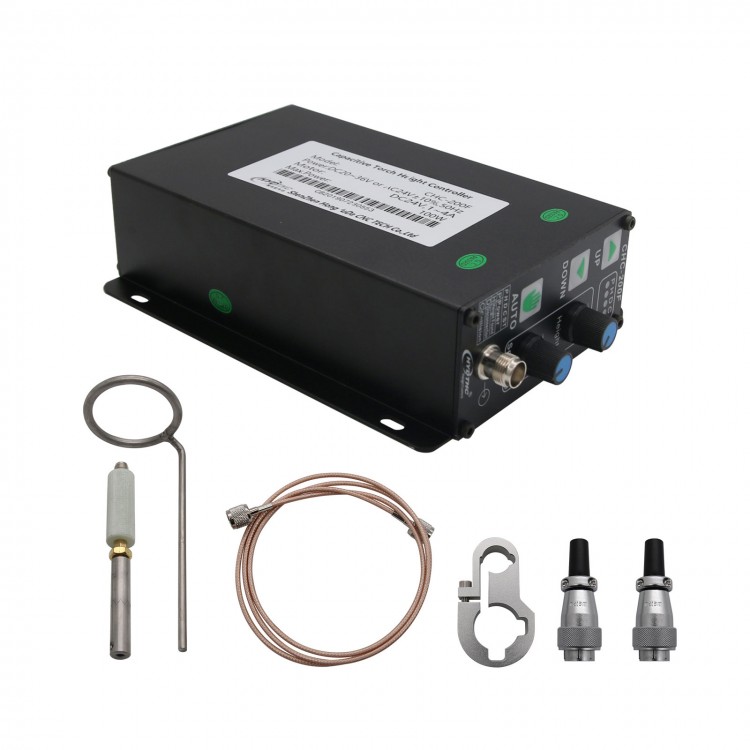

Package List:
-  1  x  CHC-200F torch height controller cutting machine
-  1  x  Sensor ring
-  1  x  Elastic connector
-  1  x  Fixture
-  1  x  Insulation part
-  1  x  HF cable
-  1  x  Socket connector
