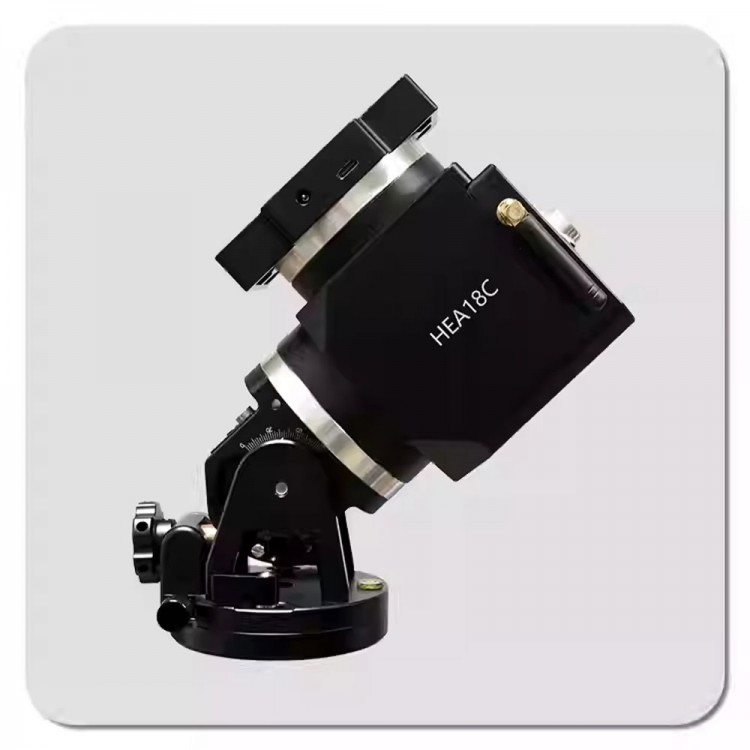

China-Made HEA18C AZ/EQ Dual SWG Telescope Equatorial Mount with 8.5KG Payload Capacity for iOptron
Description:
Introducing the new members of strain wave gear mount family - Ultra Portable AZ/EQ dual mount HAE18C! This light weight, high payload to weight little titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at ~6 lbs with a payload capability close to 19lbs, without needing a cumbersome counterweight or shaft. Applying multi-decade experience creating precision mounts, the HAE18 brings this vision to reality.
Utilizing state of the art strain wave gear technology for both RA and DEC movement, it delivers unparalleled weight to payload efficiency. Its black anodized metal CNC machined body is not only appealing to the eye, it's a rugged platform that will perform at the highest level for many years to come. Unique features include an electronic friction brake that allows the mount to stop safely.
An HAE18C mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a Smartphone/Tablet via Commander Lite for iOptron or an App like SkySafari Pro; or a Raspberry Pi device via INDI driver, "C" models (internal main board versions) with built-in Wi-Fi allow for external control without need for a handset. Those who prefer using a handset, the optional 8411 controller (for Go2Nova®) is available. The mount has on saddle USB and 12V ports for easier cable management. A quality form fit hard case is included. It can be used with platforms for ASCOM, INDI, iOS and Android.
Features:
* Advanced strain wave gear system technology
* Payload capacity of 8.5 kg (18.7 lbs) with the mount weight of 2.82 kg (6.2lbs, include dovetail saddle)
* PE< 36 arcsec (<±18 arcsec)
* CNC machined
* Unique friction brake to safely stop movement during a planned or unplanned power interruption
* 360 second gear period
* Vixen saddle
* Built in zero position search and locator
* Built-in Wi-Fi
* USB-C ports on mount base and dovetail saddle for firmware upgrade and computer control
* Hard carrying case
* Optional iPolar electronic polar scope
* Optional 8411 handset with OLED display
* Optional carbon fiber tripod #8061A
* Optional counterweight shaft (#P-SGP-CWS) and counterweight (#3006-05)
* Optional MiniPier extension #8041
Technical Specifications:
* * Mount: Strain Wave Altazimuth/Equatorial Mount
* RA gear system: Strain Wave Gear
* DEC gear system: Strain Wave Gear
* Reduction ratio: RA 360:1, DEC 360:1
* Payload w/o CW *: 18.7 lbs (8.5 kg)
* Mount weight: 6.2 lbs (2.82 kg) with dovetail saddle
* Payload/Mount weight: 3.01
* Payload with CW*: 26.5 lbs (12 kg)
* Period: 360 second
* PE: < 36 arcsec (< ± 18 arcsec)
* Drive motor: Stepper motor
* Structure Material: All metal, CNC machined
* Exterior finish: Anodized black
* Level indicator: Level bubble
* Control system: GOTONOVA/Commander
* Handset: Optional 8411 for Go2Nova®
* Tracking: Automatic
* Maximum slew speed: 6º/sec
* Power consumption: 0.6A (Tracking), 1A (GOTO)
* Power: DC12V-5A (5.5/2.1mm DC plug)
* AC adapter: 100V ~ 240V (included, indoor use only)
* Power off brake: Electronic friction brake
* Wi-Fi: Built-in
* Communication port: Yes (Wi-Fi and USB)
* Auto-guide: Pulse guiding via ASCOM
* Firmware upgrade: Yes
* Dovetail saddle: Vixen
* Tripod: Optional
* Counterweight Shaft: SS Φ20X200mm, 3/8"-16 thread (Optional)
* Counterweight: 10 lbs (4.5kg) (Optional)
* Operation temperature: -20ºC ~ 45ºC
Attention:
* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.
Package Included:
* 1 x Main unit
* 1 x 12V 5A 5521 power adapter
* 1 x Type-c data cable
* 1 x 3mm hex wrench
* 1 x Wifi antenna
* 1 x Carrying case
Packaging Details:
* Weight: 8kg
