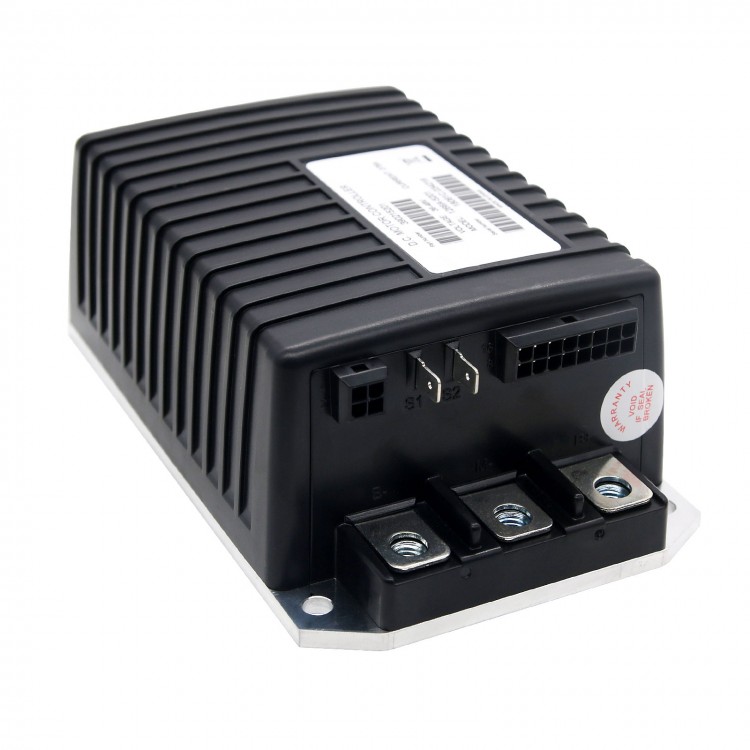

China-Made PMC SepEx Controller 1266A-5201 Compatible-Curtis Replaces Club Car Controller 1510A-5251

Product Description:
- Compatible-Curtis 1266A-5201 SepEx Motor Controller Separately Excited Motor Controller
- Compatible-Curtis 1266A-5201 Motor Speed Controller DC 36-48V 275A
- Golf Electric Cart compatible-Curtis controller 1266A-5201
- Compatible-Curtis motor controller is suitable for double golf cart and multipurpose vehicle, anti-skid function, 36-48V 275A with soeed sensor.
- 1266A-5201 (36-48V 275A)

Description:
Compatible-Curtis 1266 controllers are separately excited motor speed controllers designed for use in a variety of transport vehicles. These programmable controllers are simple to install, efficient, and cost effective. Typical applications include golf carts and small utility vehicles.

The 1266 controller offers smooth, silent, cost effective control of motor speed and torque. The speed sensor input allows superior closed-loop control for regulating vehicle speed. Unique braking parameters allow simple, intuitive deceleration tuning. A full-bridge field winding control stage is combined with a half-bridge armature power stage to provide solid state motor reversing and regenerative braking power without additional relays or contactors.

Specification:
- Nominal input voltage: 36-48 V
- PWM operating frequency: 16 kHz
- Electrical isolation to heat sink: 500 V ac (minimum)
- Package environmental rating: IP5X
-Weight: 1.9 kg

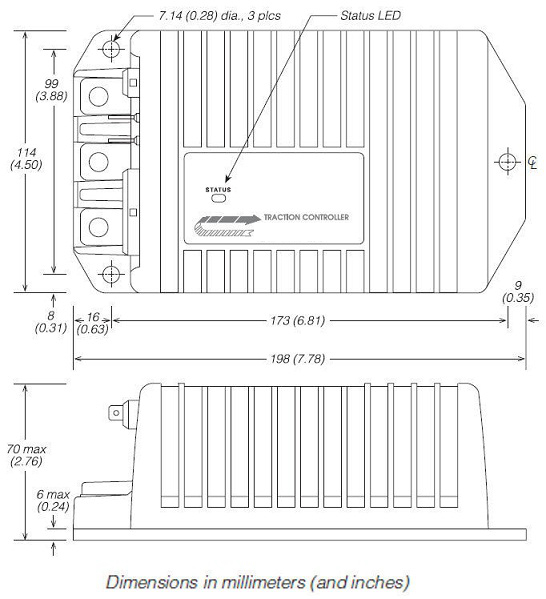

- Dimensions (LxWxH): 198 x 114 x 68 mm

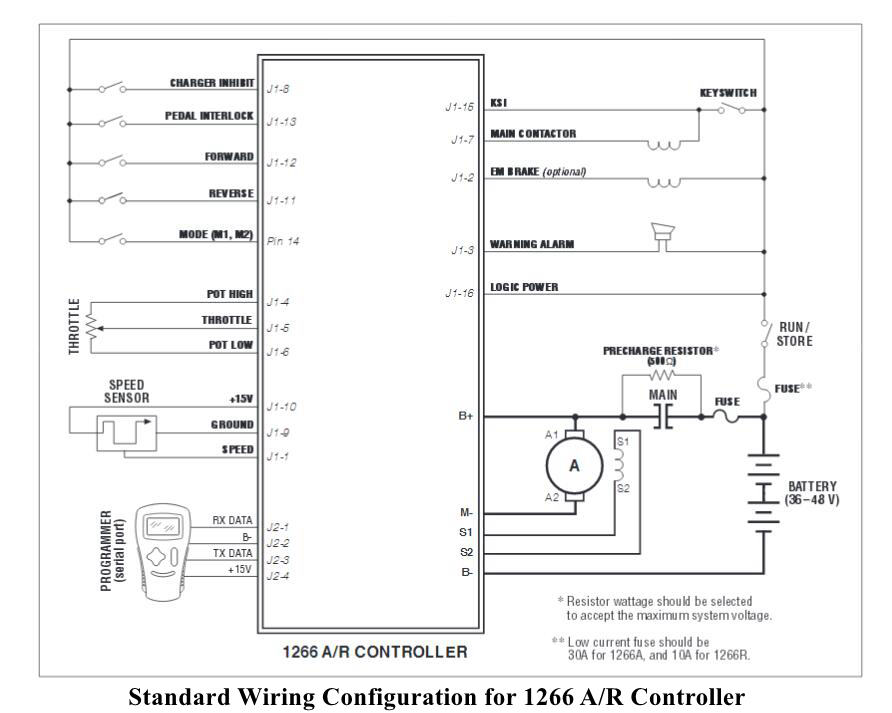

The controller 1266A-5201 is a programmable controller. Through the 4-pin MOLEX low power connector, an OEM level Programmer (Original Model 1313-4401 Handheld Programmer or 1314 PC Programming Station) has full access to all controller parameters.

Notice: For activating the original 1313-4401 Handhold Programmer or 1314 PC Programming Station, J1-8 and J1-16 terminals of controller should be connected to "B+" of DC power source (16.8V - vehicle system voltage); "B-" busbar should be connected to "B-" of DC power source (16.8V - vehicle system voltage).

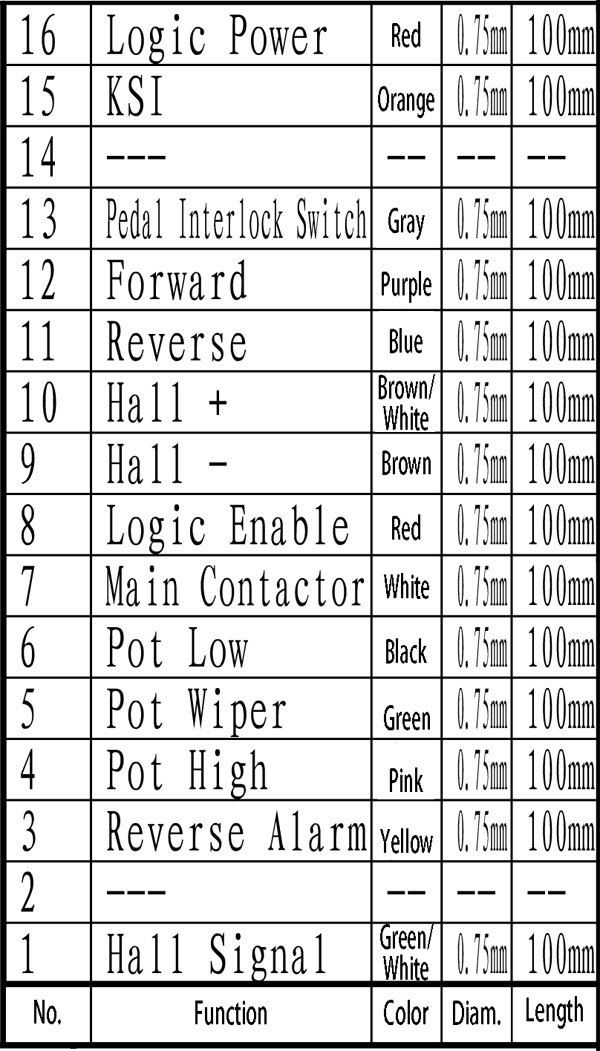

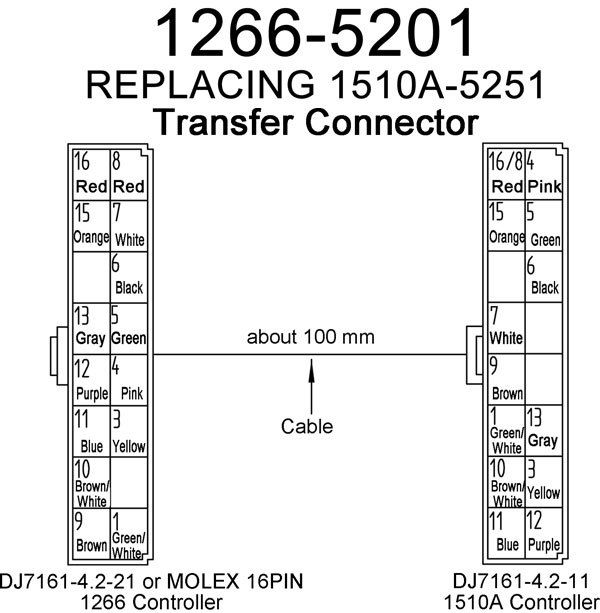

With a transfer connector (convert kit), the 1266A-5201 controller can easily replace the 1510A-5251 controller (Part Number 102806201, Original Model Number 1510A-5251). The two controllers have the same installation dimension.

Attention: The transfer connector (convert kit) is not included in the controller package. When you buy a controller 1266A-5201 with transfer connector (convert kit), we will reprogram the controller for obtaining the same configuration of a 1510A-5251.

Package List:
- 1 x 1266A-5201 Motor Speed Controller Compatible-CURTIS

Note:
- The buyer should confirm with the seller the battery system voltage, current rating and the throttle type (0-5kΩ, 5k-0Ω or 0 – 5V). By default, we will deliver the controller with setting: 48V / 275A.
- Battery is not included.
- For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the Compatible-Curtis Model 1266 SepEx Motor Controller Manual before making your purchase.

CURTIS Model 1266 SepEx Motor Controller Manual
