China-Made USB Interface Adapter with 5000V Electrical Isolation Compatible with USB-TO-GPIO for TI

China-Made USB Interface Adapter with 5000V Electrical Isolation Compatible with USB-TO-GPIO for TI

Description:
The China-made USB interface adapter is fully compatible with the imported USB-TO-GPIO 2006 version. It supports official online upgrade for TI, such as 1.0.xx and 2.0.xx and other firmware supported by all imported boards can be directly upgraded or downgraded by USB.

USB-TO-GPIO with isolation function uses the magnetic isolation technology (for ADI) to achieve stable performance, high speed, low power consumption, high reliability, and small-sized and highly integrated digital isolation. Its power supply is isolated by Flyback. It can achieve complete electrical isolation of input and output.

This EVM serves as an interface adapter or a bridge between a host PC and one or multiple targeted devices through a standard type-A to mini-B USB cable. The communication between the USB interface adapter and the host PC is via USB, while the communication between the USB interface adapter and the target device(s) is through an inter-integrated circuit (I2C), SMBus, PMBus, general-purpose inputs and outputs GPIOs or both. The bridge converts communication transactions between the USB and serial protocols. It is also compatible with USB-PMBus Adapter Kit KEP91017 for FLEX.

Application:
1. Working environment containing strong electricity and strong interference.
2. Noise-sensitive field. Computers are a big source of noise. In noise-sensitive areas, we can isolate the USB interface through this device. It can be used with high precision ADCs, op amps, voltage and current sampling, comparators, etc.
3. All kinds of industrial control equipment. Sometimes it is necessary to extend a USB cable to isolate the ground voltage difference between upstream and downstream equipment.

Features:
- Supports primary mode I2C, SMBus or PMBus as well as GPIO
- Supports USB1.1 full speed (12Mbps). The host recognizes the USB interface adapter as a universal Human Interface Device (HID), so no dedicated USB or HID driver is required. Therefore, the USB interface adapter can be used as a USB plug-and-play device
- Selects different clock speeds 100 kHz or 400 kHz for I2C, PMBus, or SMBus communications
- Configure different pull-up resistors for clock, data, and ALERT signals including open-drain
- Supports flexible I2C read or write transactions (specify raw data, not device address, commands, etc.)
- Contains .NET DLL to enable the adapter support Windows .NET GUI
- There is no dependency on any Windows products other than Microsoft .NET Framework version 2.0

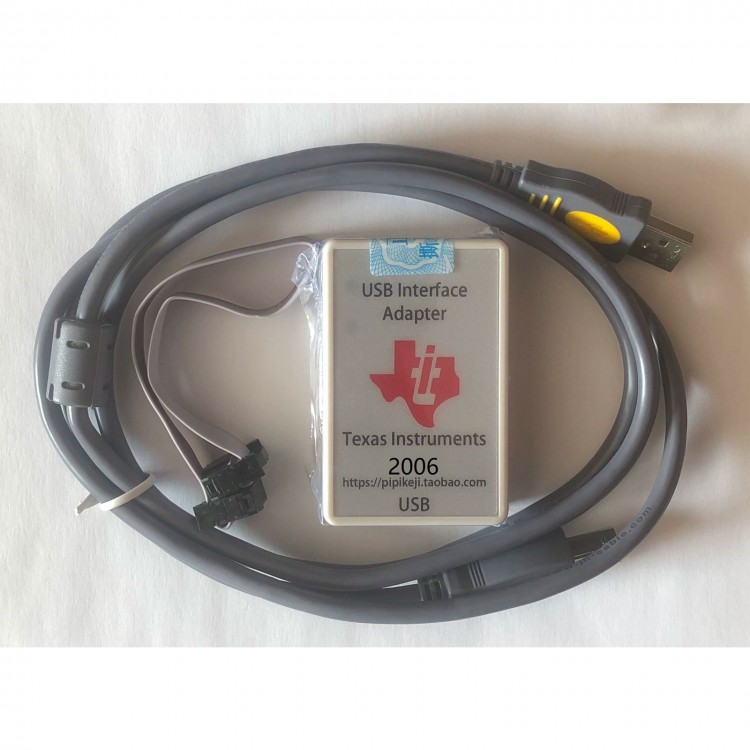

Package Included:
- 1 x USB interface adapter
- 1 x USB-A to USB Mini cable or USB-A to USB-B cable
- 1 x FC-10P cable with connectors on both ends
