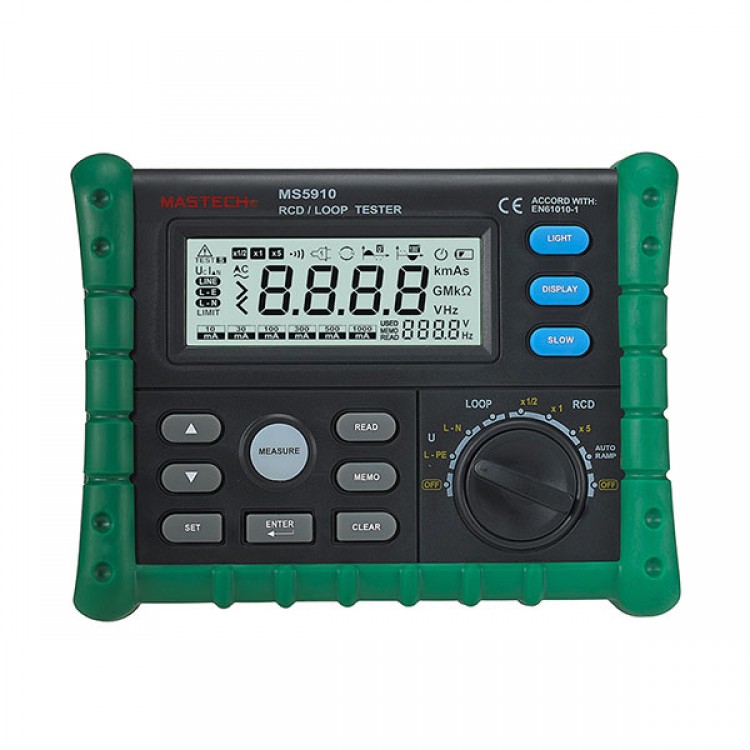

Circuit Breaker RCD Loop Tester Meter Trip-out Time & Current Voltage Frequency Loop Resistance Measurement USB MS5910
Description:
- It can measure trip-out current, trip-out time, on-line voltage, loop resistance and frequency etc.
Its ideal tool for electrical inspection and repair.
- Comply with IEC/EN 61010-1 1000V CAT II, 600V CAT III safety standards.
Max common mode voltage: 600V AC RMS.
Features:
1.Trip-Out Current measurement
2.Trip-Out Time measurement
3.Contact Voltage Measurement
4.Loop Resistance (RL) measurement
5.AC voltage measurement: 0V 440V
6.Frequency measurement: 45Hz 65Hz, DC
7.Multiplying power of measurement current: 0.5, 1 and 5
8.Standard/selective type current measurement lever: 10, 30, 100, 300, 500mA
9.100 groups of test result can be stored
10.Data stored in host machine can be transmitted to PC via a USB2.0 interface
11.Auto/manual range
12.Power supply: 6x 1.5V AA batteries
13.Storage elevation: 12,000m
14.Usage elevation: 2,000m CAT III 600V; 3000 CAT II 600V
15.Size: 200mm x 155mm x 76mm
16.Weight: about 500g
| Specifications: | |||
| Range | Accuracy | Resolution | |
| Trip-out time | 1300ms ( slow 500ms) | 3ms | 0.1ms |
| 540ms(slow 150ms) | |||
| Trip-out current | (0.2-1.1) | 0.1 | 0.05 |
| Contact voltage | 0-99.9V | (10% +0.2V | 0.01, 0.1V |
| Alternating voltage | 0-440V | (3% +3V) | 1V |
| Frequency | DC, 45-65Hz | 1Hz | 1Hz |
| Loop resistance | 0-2000 | (10% +0.2 ) | 0.1 |
| Test current | 0.5 | (10% +10d) | 0.05 |
| Multiplying power of test current | x0.5, x1, x5 | ||
| Current level | 10,30,100,300,500 | ||
| Trigger phase angle | 0 or 180 degrees |
|
Accessories:
- Test lead x 1pcs, USB cable x 1pcs; CD software x 1pcs, PDF Englsih manual.
