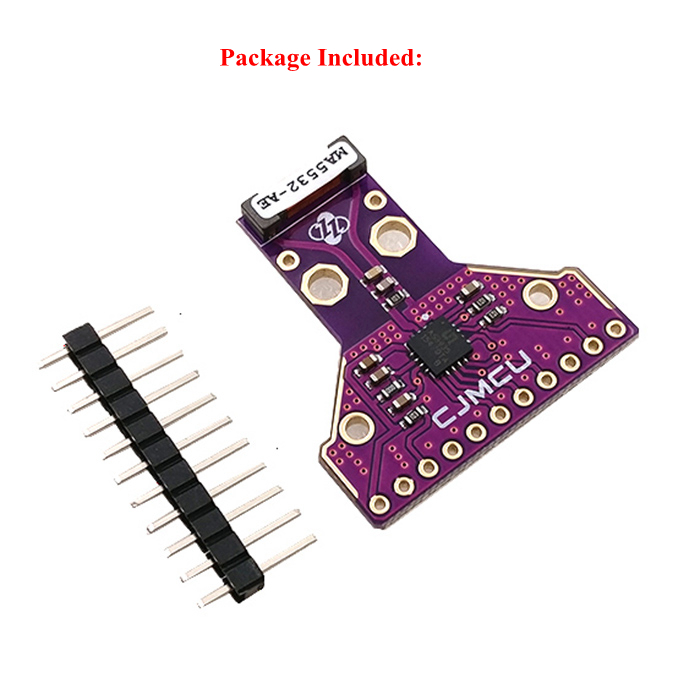

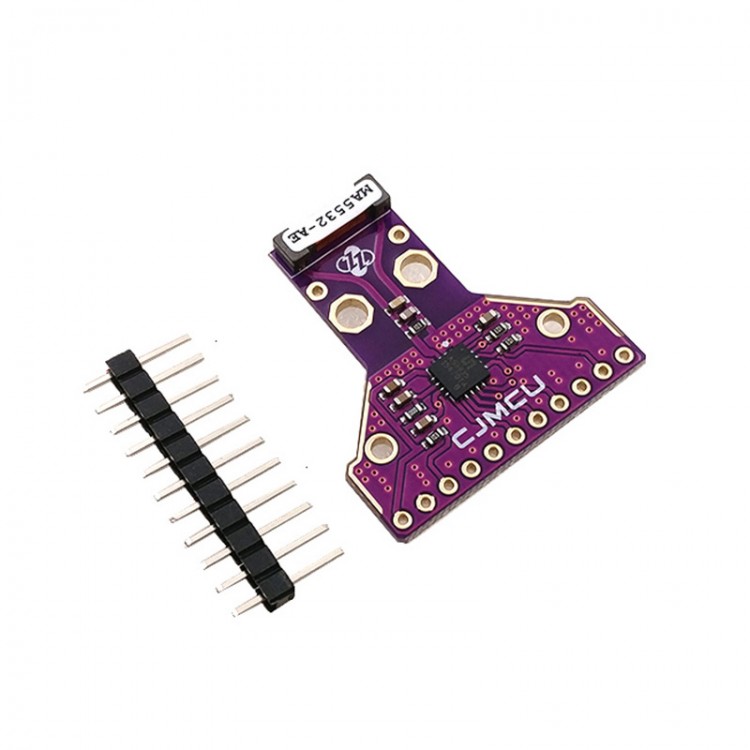

CJMCU-3935 AS3935 Lightning Sensor Lightning Detection Sensor Storm Distance Sensor Module

CJMCU-3935 AS3935 Lightning Sensor Lightning Detection Sensor Storm Distance Sensor Module

Description:
The AS3935 is a programmable lightning storm distance estimation sensor that detects nearby lightning activity and lightning activity in close proximity.

The embedded lightning algorithm detects the input signal and suppresses the potential jamming signal. The sensor provides the ambient electromagnetic noise level information to the microcontroller in a high electromagnetic noise environment through the internal background electromagnetic noise generator.

The sensor warns of lightning storms within a radius of 40 km. The storm head distance is estimated to be 1 km, detecting cloud-to-ground and cloud-to-cloud (cloud-to-cloud) lightning flashes.

There are power down mode, monitor mode, and signal verification mode.

Features:
- Lightning sensor alerts on lightning storm activity within a 40 km radius
- Storm head distance estimate up to 1 km in 14 steps
- Detects cloud flashes to ground and intra-cloud (cloud to cloud)
- Built-in algorithm artificial disturbance rejection
- Programmable sensing levels allow threshold setting for optional controls
- The SPI and IIC interface is used to control and record the reading
- Spinning antenna to compensate for variations of external components
- Supply voltage range: 2.4-5.5 Volt
- Mode Off, listen and active
- Package: 16LD MLPQ (4x4mm)

Application:
- AS3935 is ideal for weather stations, clocks, sports equipment, laptops, swimming pool Security, uninterruptible power supply (UPS), global positioning system (GPS) cell phones, watches and golf equipment.
