CJMCU-597 AD597 K-Type Thermocouple Temperature Measurement Sensor Analog Output Module 3D

Availability: In stock, usually dispatched in 1 business day

  • Price:$12.81
  • Price in reward points: 128 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.55 $12.30 $11.91 $11.40 Contact US
Quantity:

CJMCU-597 AD597 K-Type Thermocouple Temperature Measurement Sensor Analog Output Module 3D

Introductions:

CJMCU-597 is a monolithic temperature setpoint controller, designed for high-temperature environments (such as a reference to the oven control) were optimized. The device can type J or K thermocouple inputs and cold junction compensation amplification, so as to arrive with an internal signal proportional to temperature. Then, the device will signal an internal set point with an externally applied voltage compared to produce a low-impedance voltage output switch. Dead or switch hysteresis can be programmed using a single external resistor. Alternatively, CJMCU-597 may be configured to directly type J or K thermocouple output voltage signal (10 mV / ° C). It can also be used independent of the voltage output temperature sensor. The total range of single-supply or CJMCU-597 may be of +5 V to +30 V up to 36 V dual supplies. Typical quiescent supply current is 160 μA, self-heating errors to a minimum at this time.
- CJMCU-597 H package option includes a thermocouple failure alarm, when operating at a temperature measurement mode ratio may indicate thermocouple lead is disconnected. Alarm output has a flexible format that can be used to drive a relay, LED or TTL logic. Device package with reliable quality, cost-effective 10-pin metal cap shell, small 8-pin plastic DIP or SOIC packages, the adjusted operating ambient temperature range of + 25 ° C to + 100 ° C. If you accept the accuracy slightly, it can also operate over the extended temperature range. AD596 can amplify thermocouple signals to + 760 ° C within a J-type thermocouple entire recommended temperature range of -200 ° C, while the AD597 can handle -200 ° C to + 1250 ° C type K inputs. AD596 / AD597 calibration accuracy at 60 ° C ambient temperature is ± 4 ° C, while in the + 25 ° C ambient temperature stability specification to + 100 ° C within the range of 0.05 ° C / ° C. If you need more precision, or to be used at lower ambient temperatures, consider AD594 (J thermocouple) or AD595 (K thermocouple).

Features:
- Using type K (AD597) Thermocouples work
- Built freezing compensation
- The proportion of working temperature mode: 10 mV / degree C
- low cost
- Temperature set point operating modes: On / Off
- Programmable switching hysteresis
- High-impedance differential inputs

Specifications:
- Sensor Output: +10 mV / degree C
- Supply Voltage Range: + Vs to -Vs = 30Vmax
- Supply Current: 300μA
- Temp Range (s): -55 to +125
- Packages: 10 lead TO-100, SOIC-8
- Product Description: Thermocouple Conditioner / Cold Junction Compensator / Setpoint-Controller for Type-K Thermocouple
- 25 ° C Temp Error (Deg C): n / a

Package included:

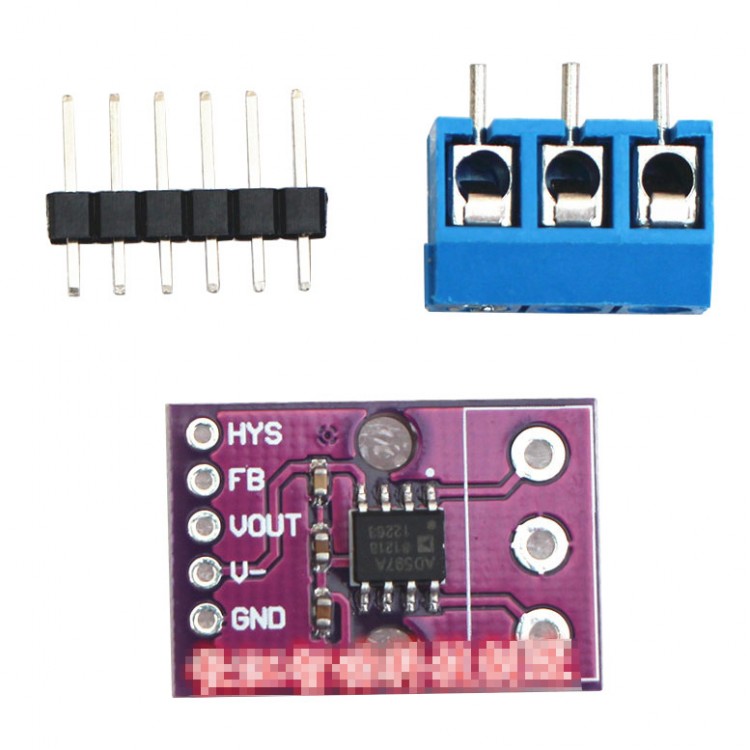

- 1*CJMCU-597 Sensor Module
