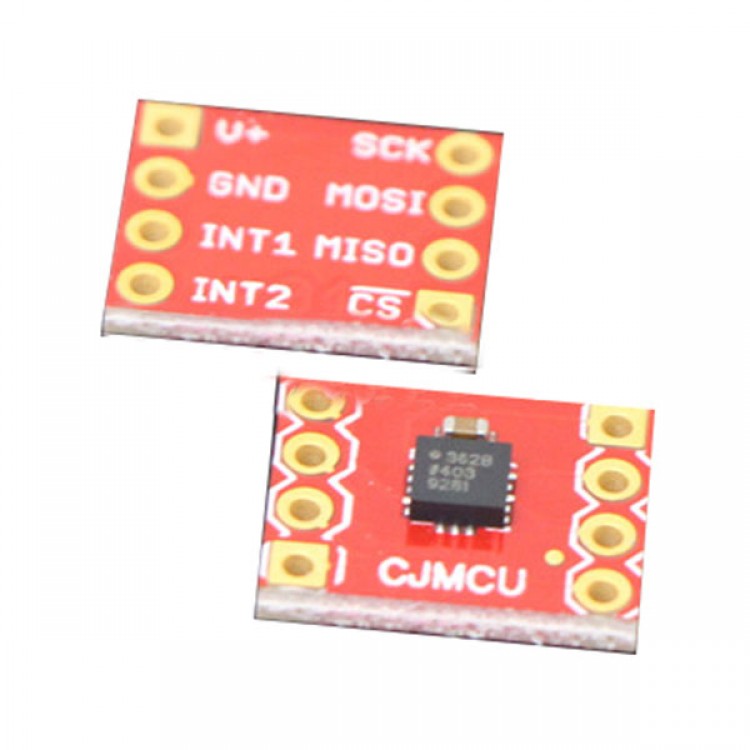

CJMCU-ADXL362 High Precision Sensor 3 Axis Accelerator Module IIC/ SPI Communication
Feaures:
- Ultralow power
- Power can be derived from coin cell battery
- 1.8 μA @ 100 Hz ODR, 2.0 V supply
- 3.0 μA @ 400 Hz ODR, 2.0 V supply
- 270 nA motion activated wake-up mode
- 10 nA standby current
- High resolution: 1 mg/LSB
- Built-in features for system-level power savings:
- Adjustable threshold sleep/wake modes for motion activation
- Autonomous interrupt processing, without need for microcontroller intervention, to allow the rest of the system to be turned off completely
- Deep embedded FIFO minimizes host processor load
- Awake state output enables implementation of standalone, motion activated switch
- Low noise down to 175 μg/√Hz
- Wide supply and I/O voltage ranges: 1.6 V to 3.5 V
- Operates off 1.8 V to 3.3 V rails.
- CJMCU-ADXL362 MADE Acceleration sample synchronization via external trigger
- On-chip temperature sensor
- SPI digital interface
- Measurement ranges selectable via SPI command
