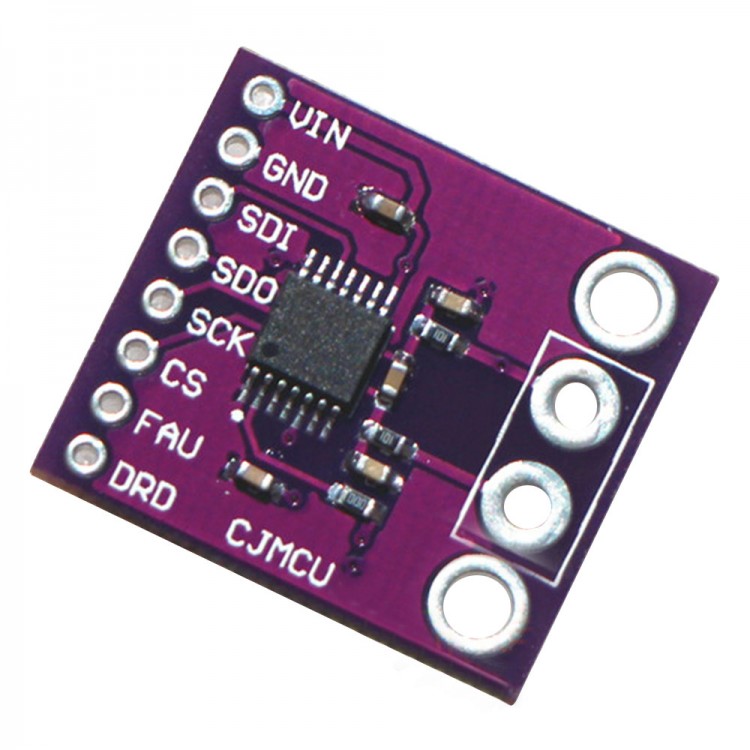

CJMCU-MAX31856 Thermocouple Module High Precision Development Board for Arduino DIY

CJMCU-MAX31856 Thermocouple Module High Precision Development Board for Arduino DIY

Introduction:
CJMCU-MAX31856 performs cold-junction compensation and digitizes the signal from any type of thermocouple. The output data is formatted in degrees Celsius. This converter resolves temperatures to 0.0078125°C, allows readings as high as +1800°C and as low as -210°C (depending on thermocouple type), and exhibits thermocouple voltage measurement accuracy of ±0.15%. The thermocouple inputs are protected against overvoltage conditions up to ±45V.
A lookup table (LUT) stores linearity correction data for several types of thermocouples (K, J, N, R, S, T, E, and B). Line frequency filtering of 50Hz and 60Hz is included, as is thermocouple fault detection. A SPI-compatible interface allows selection of thermocouple type and setup of the conversion and fault detection processes.

Features:
Provides High-Accuracy Thermocouple Temperature Readings
- Includes Automatic Linearization Correction for 8 Thermocouple Types
- ±0.15% (max, -20°C to +85°C) Thermocouple Full-Scale and Linearity Error
- 19-Bit, 0.0078125°C Thermocouple Temperature Resolution

Internal Cold-Junction Compensation Minimizes System Components
- ±0.7°C (max, -20°C to +85°C) Cold-Junction Accuracy
- ±45V Input Protection Provides Robust System Performance

Simplifies System Fault Management and Troubleshooting
- Detects Open Thermocouples
- Over- and Undertemperature Fault Detection

50Hz/60Hz Noise Rejection Filtering Improves System Performance
14-Pin TSSOP Package

Package included:
- 1* CJMCU MAX31856 thermocouple module
