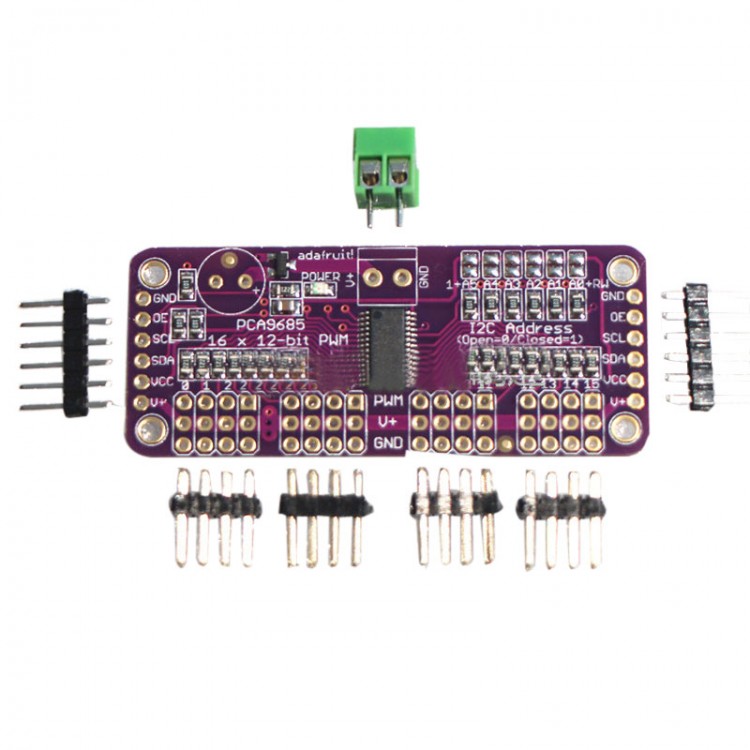

CJMCU-PCA9685 16-channel 12Fm + I2C Bus PWM Controller Servo Control Module
Features:
- 16 LED drivers, each output can be programmed to:Turn off/Open/Programmable LED brightness/Programmable fuzzy group (dim) or Flashing LED brightness independent mixed with
- 1MHz Fast-mode Plus is compatible with high drive capability has 30mA on SDA I2C bus interface to drive highly capacitive bus
- 6 hardware address pins so that the same can be connected to 62 PCA9685 I2C devices on the bus
- Software reset feature (SWRST Call) allows the device via I2C bus reset
- 25MHz internal oscillator requires no external components
- Maximum allowable 50MHz external clock input
- Internal power-on reset
- In the SDA / SCL inputs with noise filter
- Output pin has edge generation rate control
- No glitches on power-up (glitch) output
- Hot-Access
- Low standby current
Specifications:
- Operating voltage range: 2.3V to 5.5V
- 5.5V tolerant inputs
- Can operate at minus 40 degrees Celsius to 85 degrees Celsius environment
- ESD protection exceeds 2000V HBM / JESD22-A114,200V MM / JESD22-A115 and 1000V CDM / JESD22-C101
- JEDEC standard JESD78 lockout exceed 100mA test
