Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $10.78 | $10.56 | $10.23 | $9.79 | Contact US |

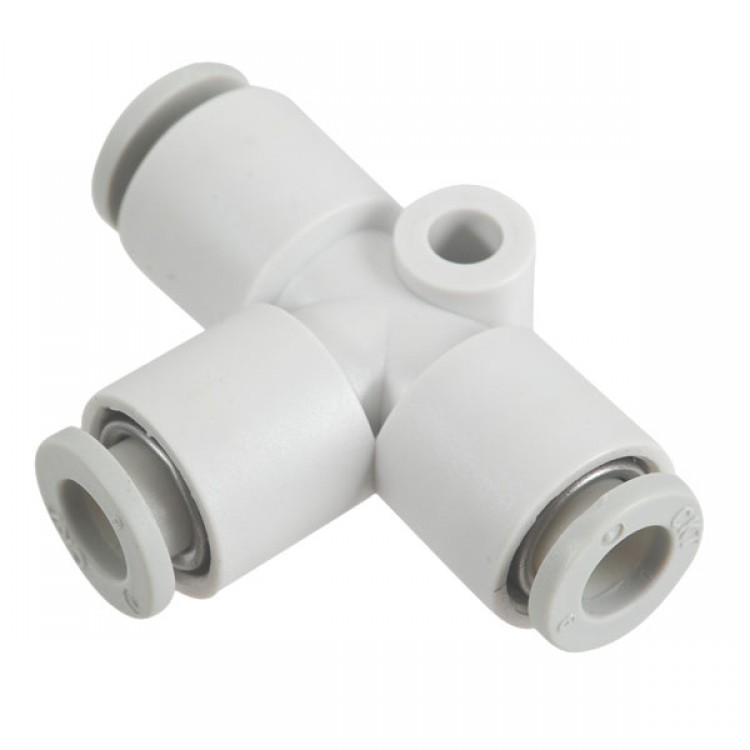

CKT Pneumatics SMC KQ2T 06-00 Pneumatic Fitting 10-Pack
Descriptions:
- effective when piping in a confined space; the connection thread with gasket cement.
- Product type:Fitting - KQ
- Name:KQ2T

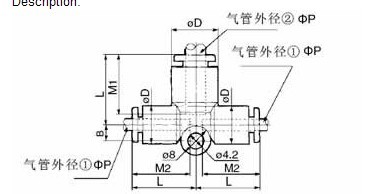

ΦP | MODEL | ΦD | L | B | M | ||
1 | 2 | 1 | 2 | ||||
Φ4 | KQ2T 04-00 | 10.5 | 18.1 | 4.6 | 16.1 | ||
Φ6 | KQ2T 06-00 | 12.9 | 20.1 | 5.4 | 17.1 | ||
Φ8 | KQ2T 08-00 | 15.3 | 23.1 | 6.1 | 18.6 | ||
Φ10 | KQ2T 10-00 | 18.6 | 26.6 | 6.9 | 21.1 | ||
Φ12 | KQ2T 12-00 | 21 | 28.6 | 7.6 | 22.1 | ||
Φ16 | KQ2T 16-00 | 26.6 | 34.1 | 10.1 | 25.1 | ||
Φ4 | Φ6 | KQ2T 04-06 | 12.9 | 20.1 | 5.4 | 16.1 | 17.1 |
Φ6 | Φ8 | KQ2T 06-08 | 15.3 | 23.1 | 6.1 | 17.1 | 18.6 |
Φ8 | Φ10 | KQ2T 08-10 | 18.6 | 26.6 | 6.9 | 18.6 | 21.1 |
Φ10 | Φ12 | KQ2T 10-12 | 21 | 28.6 | 7.6 | 21.1 | 22.1 |
Φ12 | Φ16 | KQ2T 12-16 | 26.6 | 34.1 | 10.1 | 22.1 | 25.1 |
Φ6 | Φ4 | KQ2T 06-04 | 12.9 | 20.1 | 5.4 | 17.1 | 16.1 |
Φ8 | Φ6 | KQ2T 08-06 | 15.3 | 23.1 | 6.1 | 18.6 | 17.1 |
Φ10 | Φ8 | KQ2T 10-08 | 18.6 | 26.6 | 6.9 | 21.1 | 18.6 |
Φ12 | Φ10 | KQ2T 12-10 | 21 | 28.6 | 7.6 | 22.1 | 21.1 |
Φ16 | Φ12 | KQ2T 16-12 | 26.6 | 34.1 | 10.1 | 25.1 | 22.1 |
