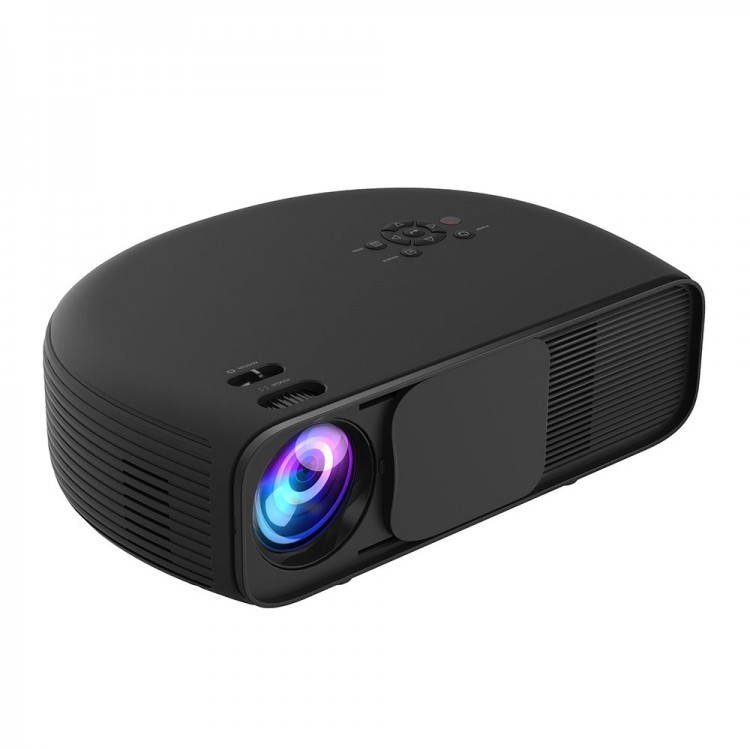

Tags: CL760B LCD Projector
| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $199.13 | $195.06 | $188.97 | $180.84 | Contact US |
1PCS 3-Meter LC-LC Dual Core Multi-mode OM4 Optical Fiber Cable High Quality 10-Gigabit Optical Fiber Jumper
$30.38
1PCS 2-Meter LC-LC Dual Core Multi-mode OM4 Optical Fiber Cable High Quality 10-Gigabit Optical Fiber Jumper
$24.03
12V Dual Core Semiconductor Cooler Kit Water Cooling Thermoelectric Peltier Refrigerator System DIY
$24.29
Functions & Features:
- HML support
- LED LIGHT
- Stereo speaker
- Remote control
- USB support
- Headphone
- AV 3 in 1 support
- HDMI support

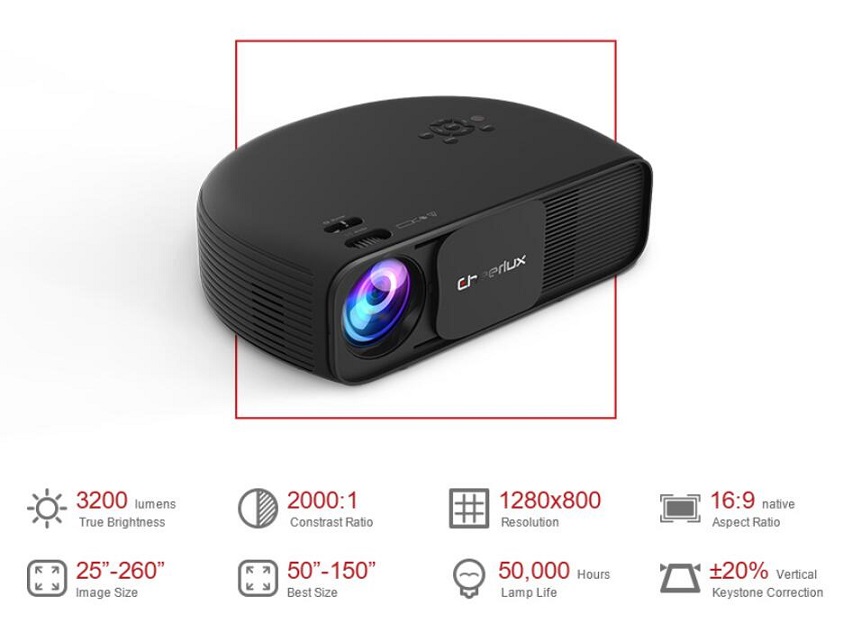

Specification:
- Mode:CL760B
- Projector technology:LCD screen + LED light
- Standard resolution:1280x800 720P;support 1080P
- Projector brightness:3200 lumens
- Contrast ratio:2000:1
- Lens:Manual focusing
- Projector light:LED light;>50000 hours

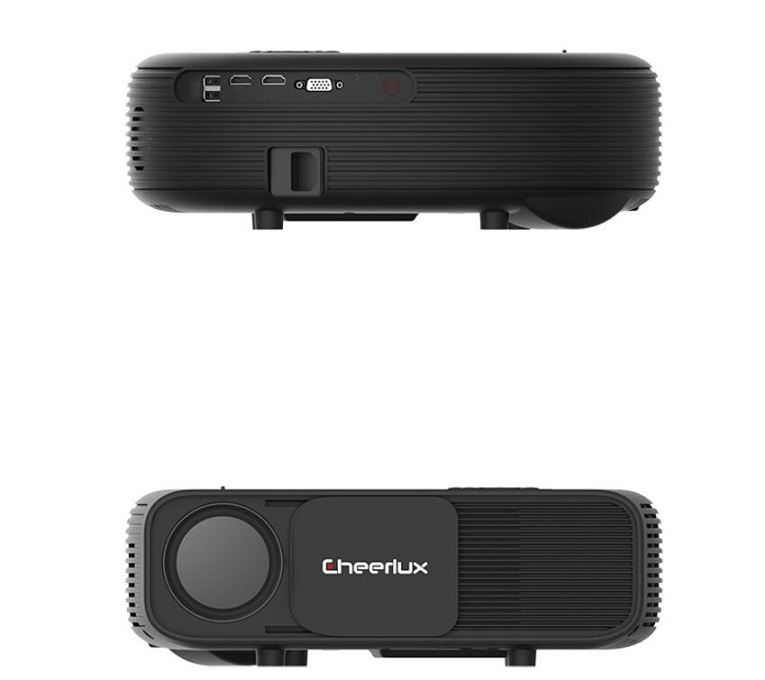

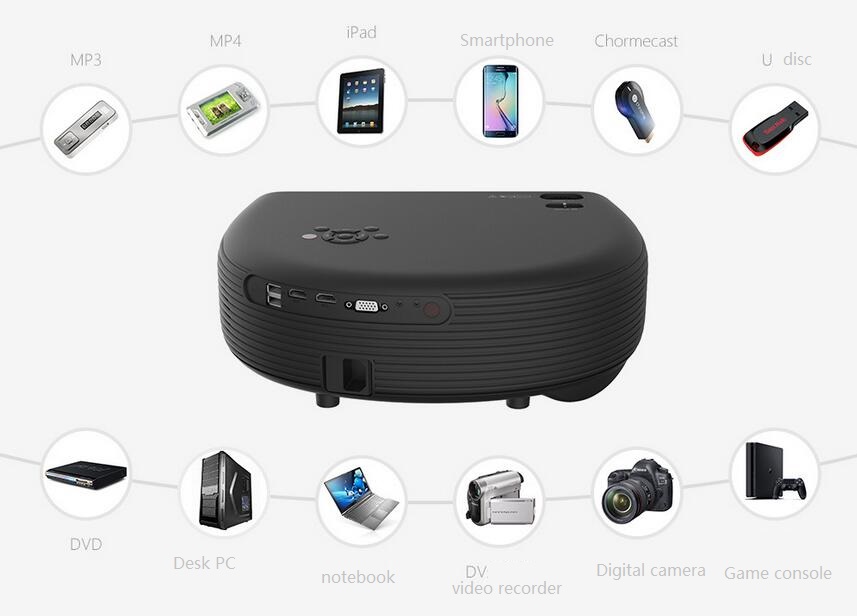

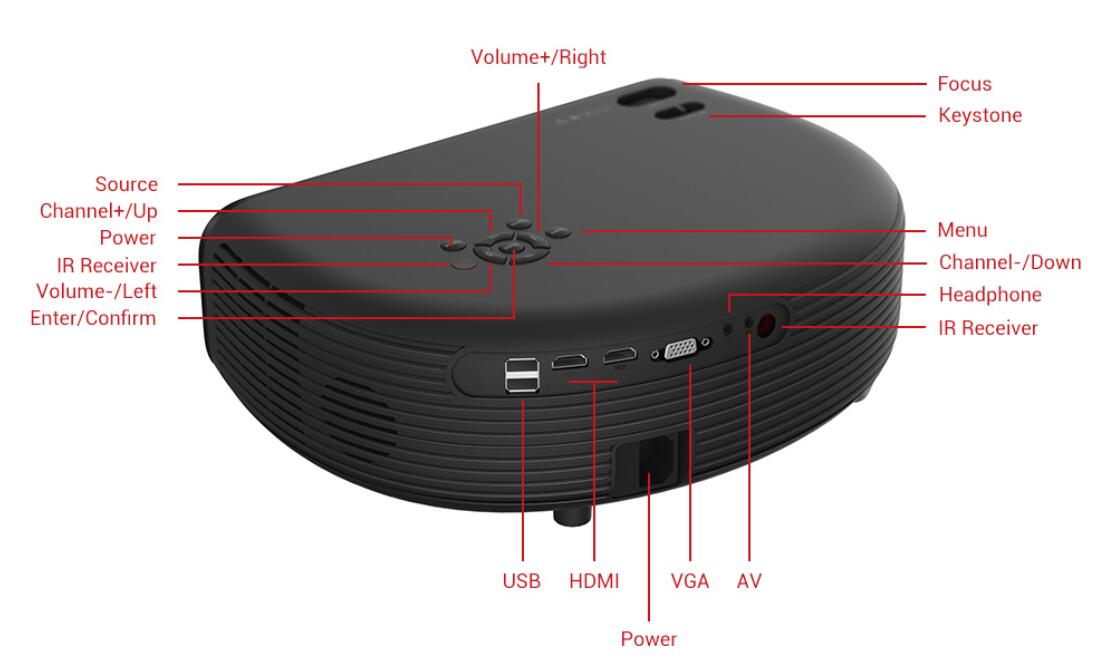

- Projection interface:HD 1,HD 2,USB 1,USB2,VGA,AV,Earphone jack
- Optional function:No
- Projector aspect ration:16:9/4:3
- Inverting function:360 degree inverting
- Best size:50"-150"
- Distance:1m-5m
- Projection mode:front projection,back projection,ceiling projection
- Built-in speaker:2w
- Keystone correction angle:± 20°
- Menu language:English,French,Spanish,German,Italian,Russian,Japanese,Korean,Vietnamese,Chinese
- Projection voltage:AC 90-240V, 50-60Hz

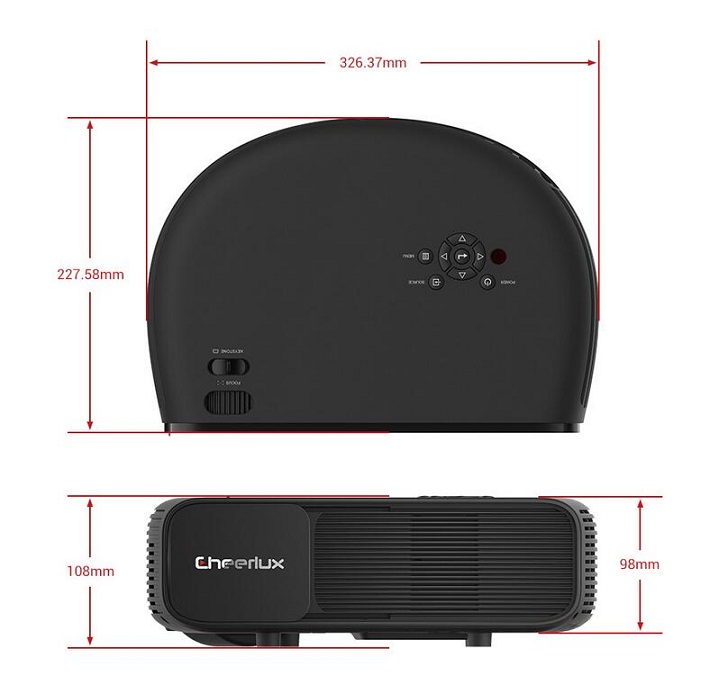

- Dimension:326.37x227.58x108 mm
- NW.:2.2 KG;GW:3 KG.
- Color:Black
1.CPU comparison:
760 mainboard CPU (S805) is ARM quad core,mononuclear main frequency nominal 1.5GHz,quad core 600MHz Mali-450 GPU,total 8 core.
The 338 mainboard is ARM dual-core,mononuclear frequency nominal 1.5GHz,dual-core 400MHz Mali-400 GPU ,total quad core.
2.Hardware system comparison:
760 mainboard is 1GB DDR3 dynamic memory,8GB program,file eMMC memory.
The 338 mainboard is 512MB DDR3 dynamic memory,4GB(or 8GB?)program,file eMMC memory.
3.Android system comparison:
760 mainboard is Android V4.42,support Dolby AC3,AAC,DTS most format.(crack Dolby format,not as online propaganda)
The 338 mainboard is Android V4.42,not support Dolby AC3,AAC,DTS format(subscription),there may be little stutters for other HD media play.
4.Other:
760 APK has better installation compatibility than 338.
The installation and application method for the two mainboards the third party APK are more or less the same.
Comparison:
Compared with 388 mainboard,760 mainboard has better CPU+GPU(no stutters for webpage & media play).The 338 has obvious stutters.512GB dynamic memory more than 388 mainboard,4GB flash memory than 388. Dolby Android system.
About one screen software APK software using:
1)There is Lebo APKTV software in android system (happycast_tv.apk), Lebo link
2)Install Lebo APK on smartphone(happycast_mobile.apk)
3)Open WiFi connection for projector,then open the APKTV software,you can see the WeChat QR code,scan it with phone.
4)Open and install the phone APP (mobile phone WiFi connection & projector WiFi connection must on the same WiFi router)
Click the central TV icon(Here,the Android projector is similar to Android TV,so the applications are the same),scan and open it,you can send the phone content to the screen.
Others: Sound problem:Select a video on the phone,you can see a icon and click it,close the image and continue to play.
Package List:
- 1 x CL760B LCD Projector
- 1 x English User Manual
