Class D Amplifier Bluetooth 5.0 HiFi Stereo Power Amp 150Wx2 TAS563 For APTX PA-03 24V Power Supply

Class D Amplifier Bluetooth 5.0 HiFi Stereo Power Amp 150Wx2 TAS563 For APTX PA-03 24V Power Supply

Features:
- 2.0 channels, the maximum effective power is 300W, providing cinema-grade speaker effects.
- QCC3008 Bluetooth 5.0 solution for APTX.
- HiFi sound effects, 150W * 2 channel stereo output.
- Compatible with most passive stereo speakers and high-power stage KTV and other speakers on the market.
- Chip for QCC3008 support A2DP, AVRCP, HFP, TWS, AAC, I2S, APTX, APTX-LL, etc. 16M SPI FLASH memory chip is used.
- Bluetooth 5.0 chip ensures better communication quality, compatibility, and functions.
- 10M connection distance. Compatible with 99% of mobile phones, tablets, computers and other electronic products with Bluetooth devices on the market.
- Wireless Connection: Bluetooth 5.0 transmission technology enables high-efficiency and stable transmission, strong anti-interference capacity. It can be used outdoors and indoors. Enjoy your music!
- Bluetooth Pairing: Once it is successfully connected, it can memorize and automatically link next time.
- Thick aluminum heat sink.
- Built-in TAS5630-D digital audio amplifier. BTL bridge power output is 150*2 channels. During continuous operation, THD is less than 0.03%.
- Five independent operational amplifier IC are used. It integrates preamp function and independent low-frequency adjustment to ensure the separation of stereo output and a strong sense of on-site restoration. Ensure that high-power low-frequency sound is clean, powerful, low distortion, no interference, wide dynamic adjustment range, easy to drive.
- Ferrite encapsulated special inductor for digital circuits wound with oxygen-free copper, which can make the sound transparent and delicate, with clear layers, wide dynamic range and clear details. When working in a large dynamic state, less heat will be produced. Fully shielded package rejects interference noise level, high-end digital circuit configuration.

Specifications:
- Model: PA-03
- Overall Power: 300W (Stereo 150W*2)
- Power Supply: DC 24-36V (5.5mm external diameter; 2.5mm internal diameter)
- Impedance: 4-8Ω

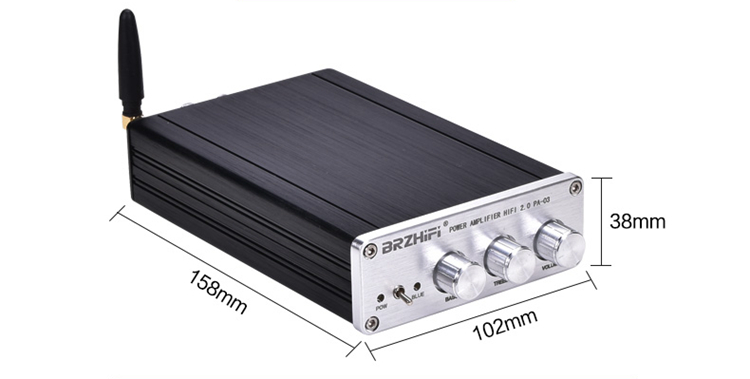

- Product Weight: About 0.61kg

Package Included:

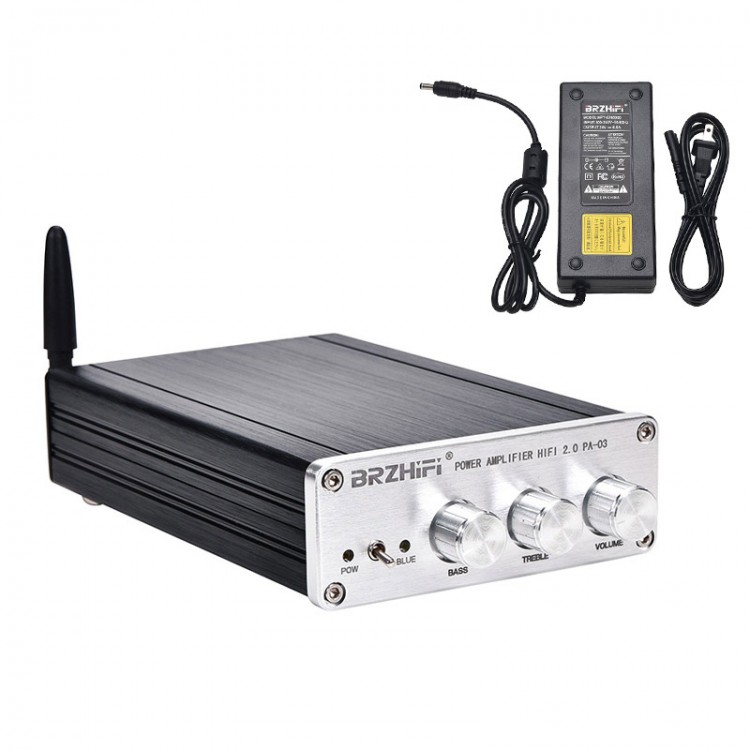

- 1 x Power Amplifier
- 1 x Bluetooth Antenna
- 1 x Power Cord
- 1 x 24V 6A Power Supply




Note:
- It is assembled and ready to use.

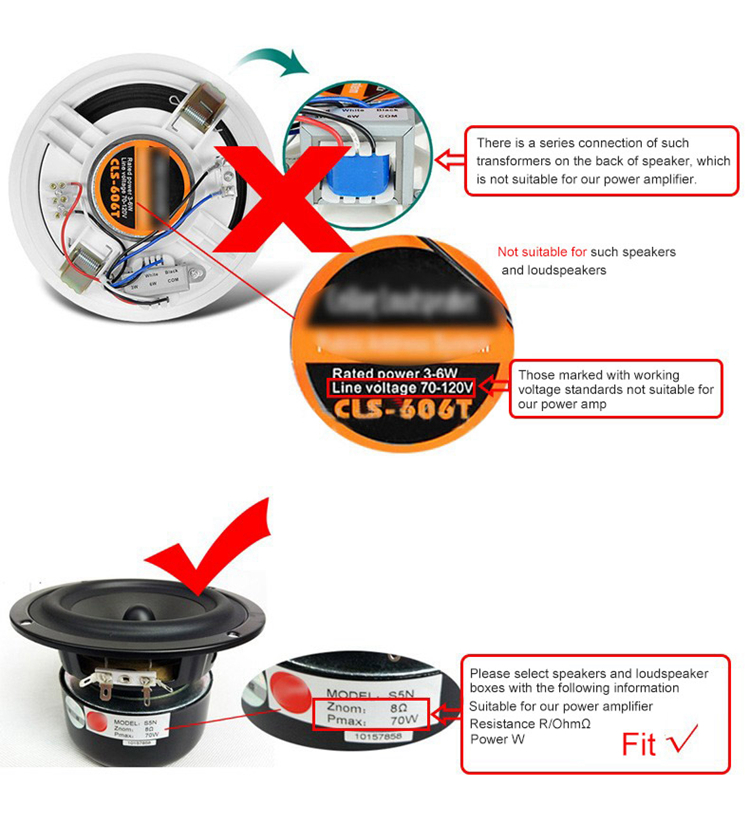

- It is for passive fixed resistance speakers and loudspeaker boxes only.
- If NFC function is needed, please contact us to pay extra money. The function does not support for Apple system now.
- Other items in the pictures are not included, for demonstration purposes only.
