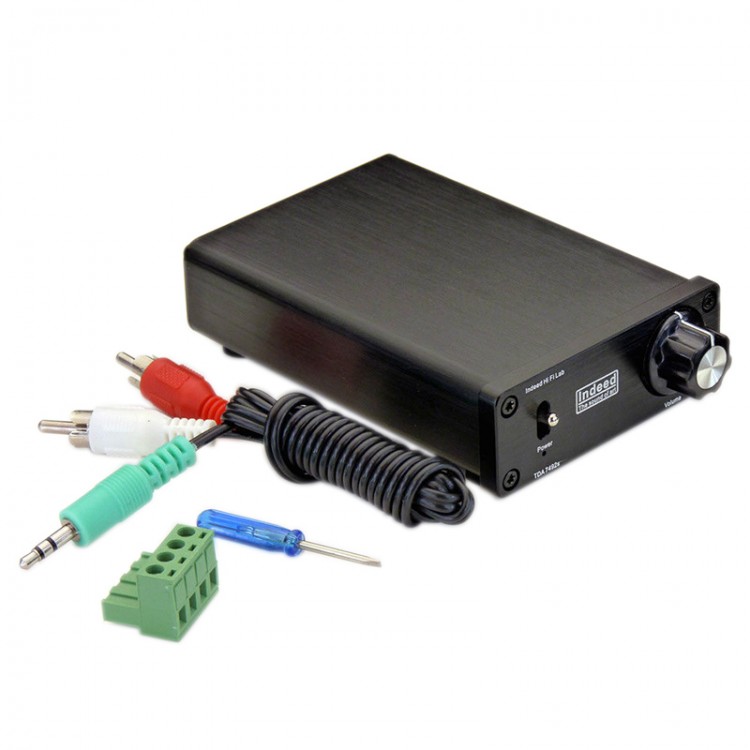

New Indeed TDA7492s Cute Tiny Class D 50WX2 Mini Stereo Digital Amplifier Black
Specifications:

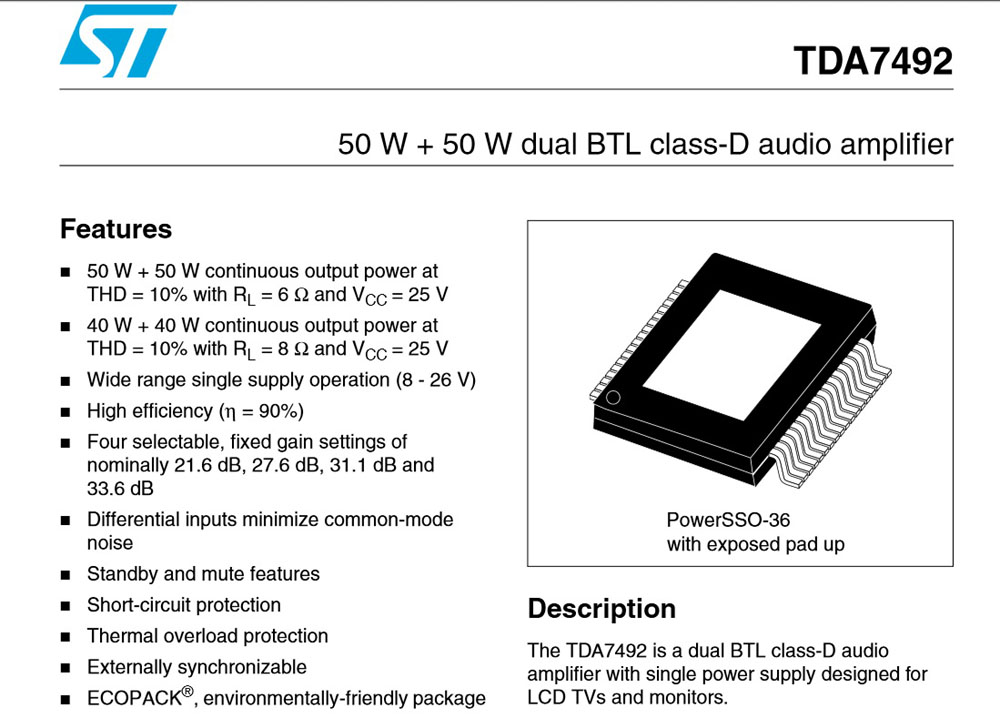

- ST IC TDA7492
- Output Power 2 x 50W @ 4ohm, 2 x 35W @ 8ohm
- Signal-to-Noise Ratio (SNR) 98dB
- Dynamic Range 98dB
- IHF-IM Distortion 0.1% @ 1W, 4ohm
- THD Distortion
- 1% @ 12W 4ohm
- 1% @ 10W 8ohm
- 10% @50W 4ohm
- 10% @ 35W 8ohm
- Power Efficiency 90% @ 40W, 4ohm, 88% @ 25W, 8ohm
- Input Sensitivity 200mV
- Audio IN : 3.5mm socket (Left/Right) x 1
- Power socket (5.5mm/2.1mm) x 1
Output
- Speaker OUT : 4 pins socket with screw lock.
- Power Indicator (Green LED) x1
- Power input socket: Diameter is 5.5mm of outlet (- ground ) and centre hole (+) is 2.1mm/ DC 12V-25V 2-5A
- Dimensions: (W)72mm x (H)26mm x (D)108mm
- Weight 450g
NOTE:
- The machine is BTL output, that is to negative side of speaker out is not public grounded,(the two speakers cable must independent connect, no grounding together),we must strictly in accordance with the marking of plus or minus cable connection,this class D amp is recommend to the DC volts input 18-24V(not less than 1.5A)
- This item come without any AC/DC power adapter, you should find any DC adapter 12-25V (not less than 1A) to fit for your need!
Package Contents:
- 1 x Indeed TDA7492s Amplifier (without DC adapter)
- 1 x 3.5mm jack to RCA plug cable
