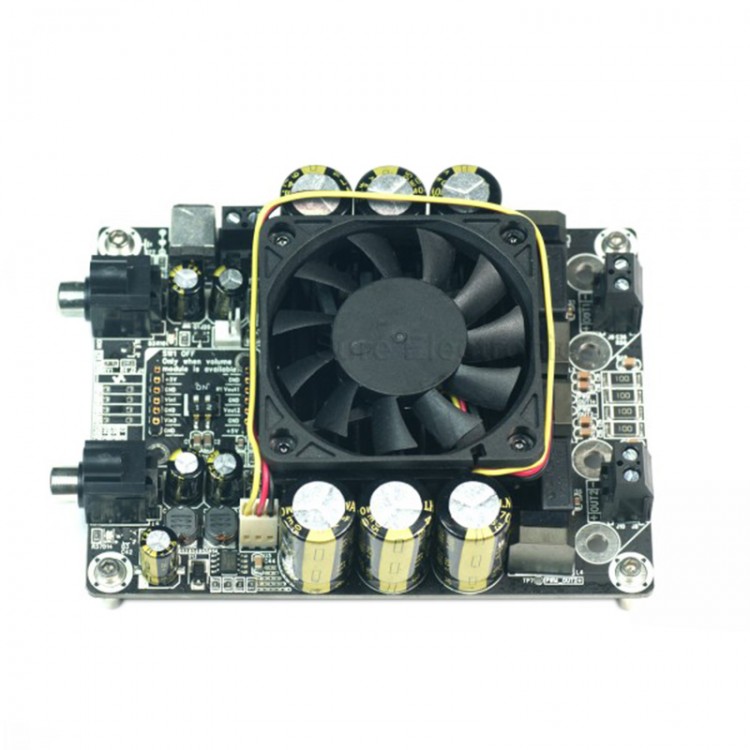

Class D T-AMP High-Power Stereo DC48V 2x500W Dual Channel HIFI Amplifier Board for Audio
| Parameters | Condition | Minimum | Typical value | Maximum |
| Voltage(V) | 25 | 48 | 50 | |
| Quiescent dissipation | fan is on, SD suspended | 12.5 | 18 | |
| fan is off, SD suspended | 11 | 15 | ||
| Input sensitivity(mV) | 3Ohm 500W 1KHz | 1360 | ||
|
Input impedance(KOhm) |
33 | |||
| Gain(db) | 28 | 30 | 32 | |
| Output power(W rm s) | 3Ohm THD+N 1% | 260 | ||
| 3Ohm THD+N 10% | 500 | |||
| Efficiency(%) | 500W 3Ohm | 90 | 95 | |
| Minimum load | 3 | |||
| Frequency response(KHz) | SD is suspended | 610 | ||
| Temperature(deg C ) | 20 | 50 | ||
| SNR(db) | 260W 3Ohm THD+N 1% | 78.429 |
Weight: 419g-+20g
Size: 121.92*91.44*38.86mm-+0.2
Package included:
- 1 x Amplifier Board
