| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $86.75 | $84.98 | $82.32 | $78.78 | Contact US |

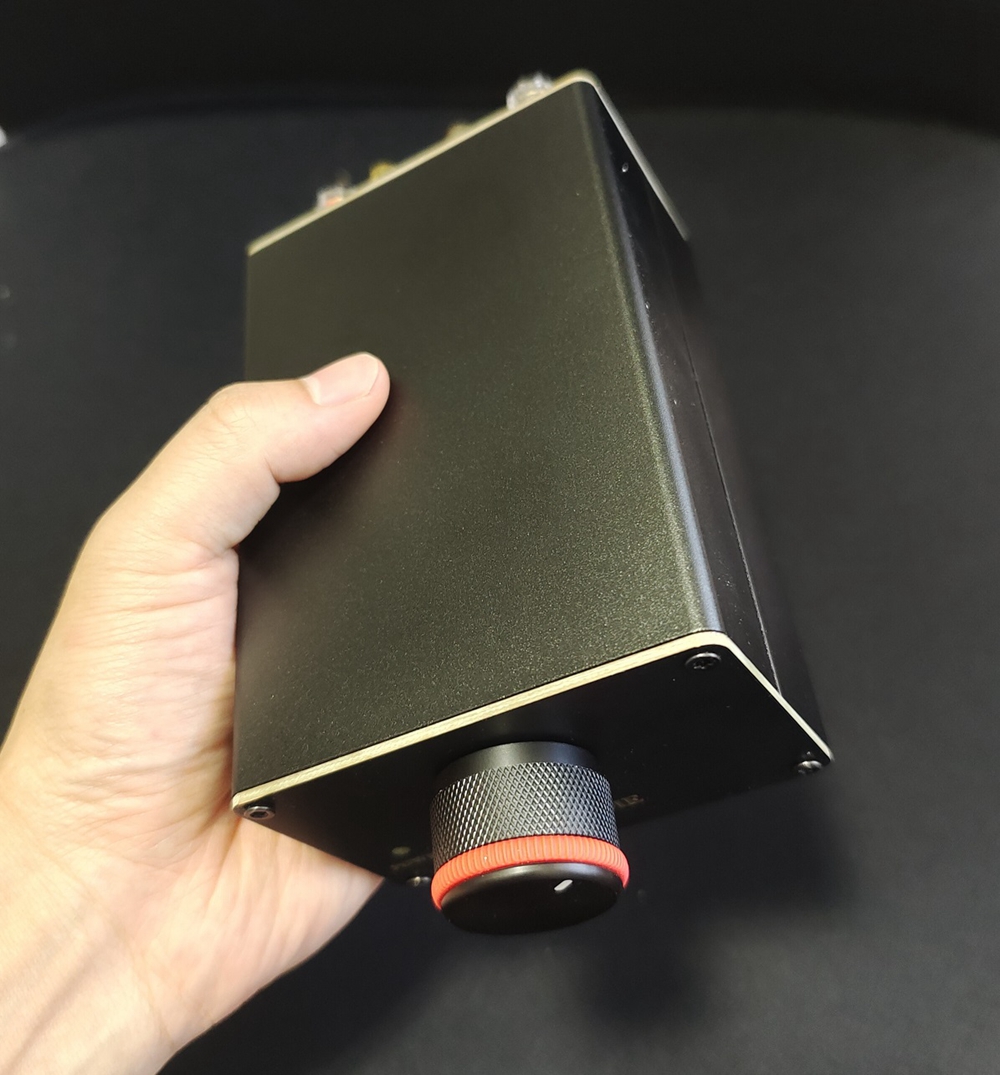

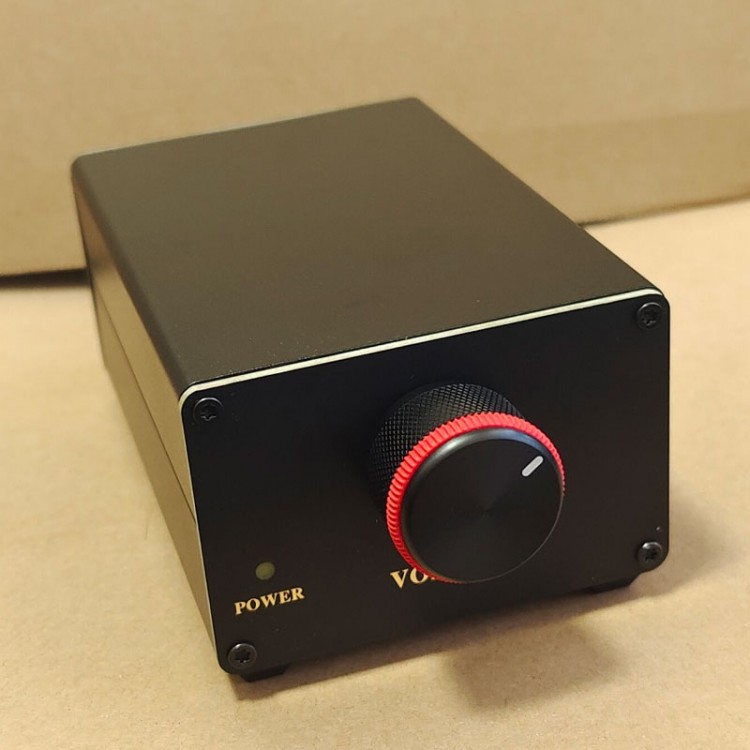

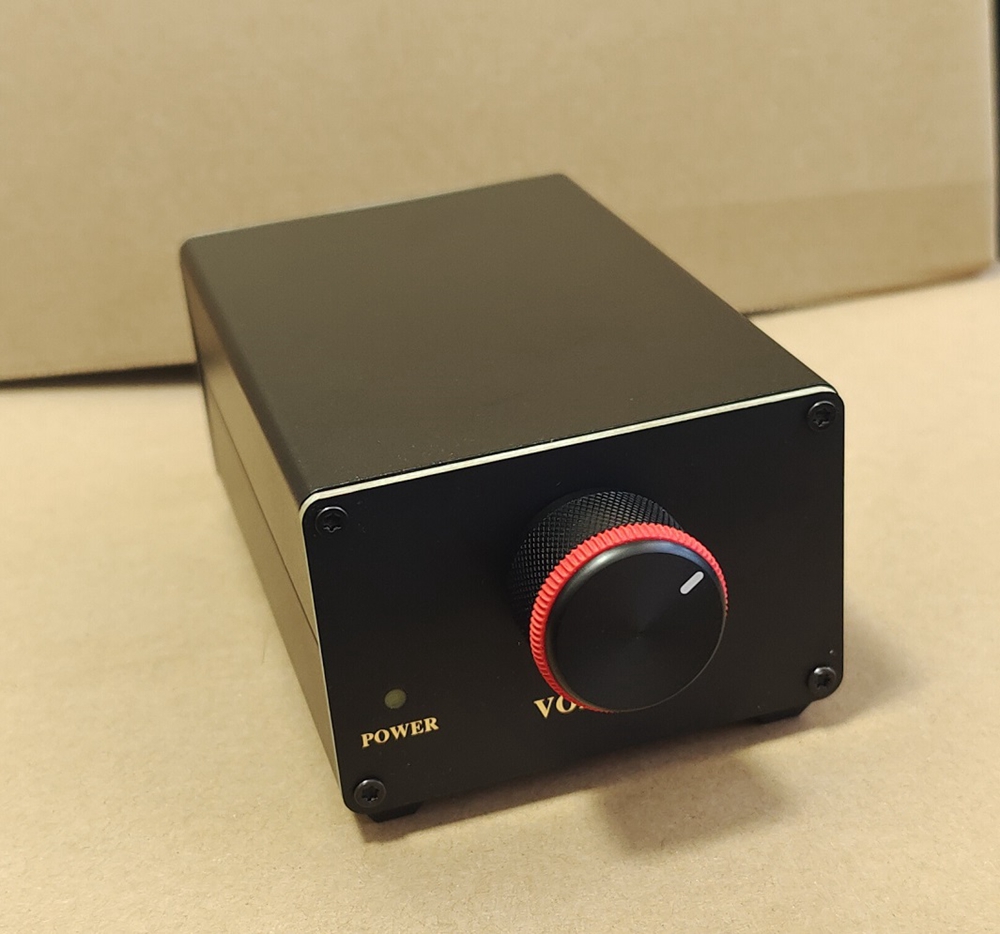

Class D TPA3221 Digital Power Amplifier Host High Fidelity HiFi Power Amplifier with 2 Channel Stereo
Specification:
- Power amplifier type: Class D digital power amplifier
- Power amplifier chip model: For TI high level TPA3221D2DDVR Ultra-HD class D IC
- SNR: 108dB
- Distortion: <0.02% THD + N 1KHz
- Gain: 24dB
- Supported speaker impedance: 2ohm - 8ohm
- Output power: maximum constant power 2 x 200W
- Channel number: 2 channel stereo
- Power supply voltage/current: DC voltage 13V-26V, current>3A; 24V/6A above is recommended. (The charger may not function properly, please use a power adapter or switch power supply.)

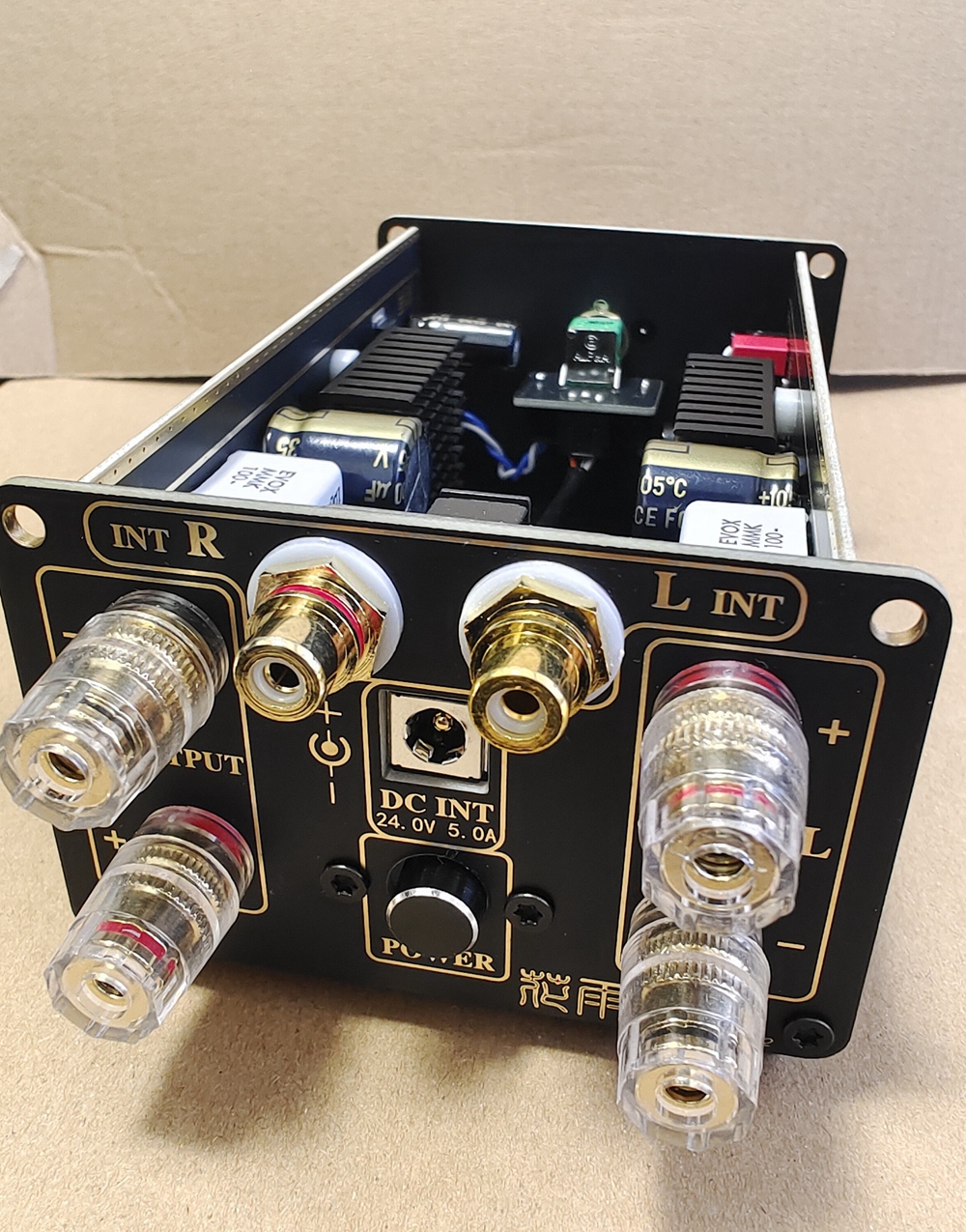

- Power interface: 5525 interface
- Audio source input: RCA input, without Bluetooth
- Power amplifier to speaker socket: 4mm banana socket, it can be connected with cables without banana port.
- Size: 134 (L) x 90 (W) x 69 (H)mm
- Weight: 648g
Material:

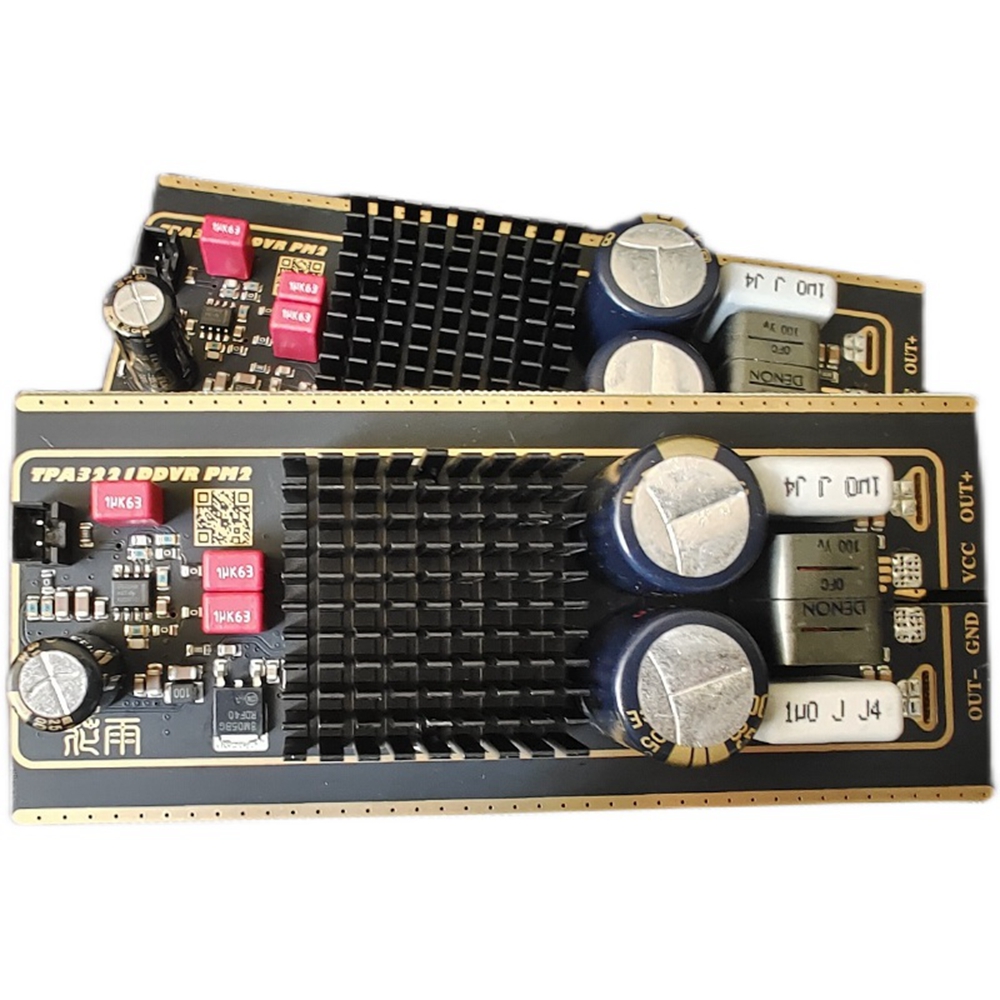

- The PCB uses TG150 high temperature characteristic sheet, and the immersion gold process makes the product more beautiful and durable
- 2oz copper cladding thickness to ensure good current passing rate
- Matte blackboard looks better (the color of the board doesn't affect its performance)
- HIFI-level electronic material
- The audio path patch uses for K0A audio low temperature drift high precision resistor
- All chip capacitors use at least for X7R material for WIMA/RIFA/ELNA

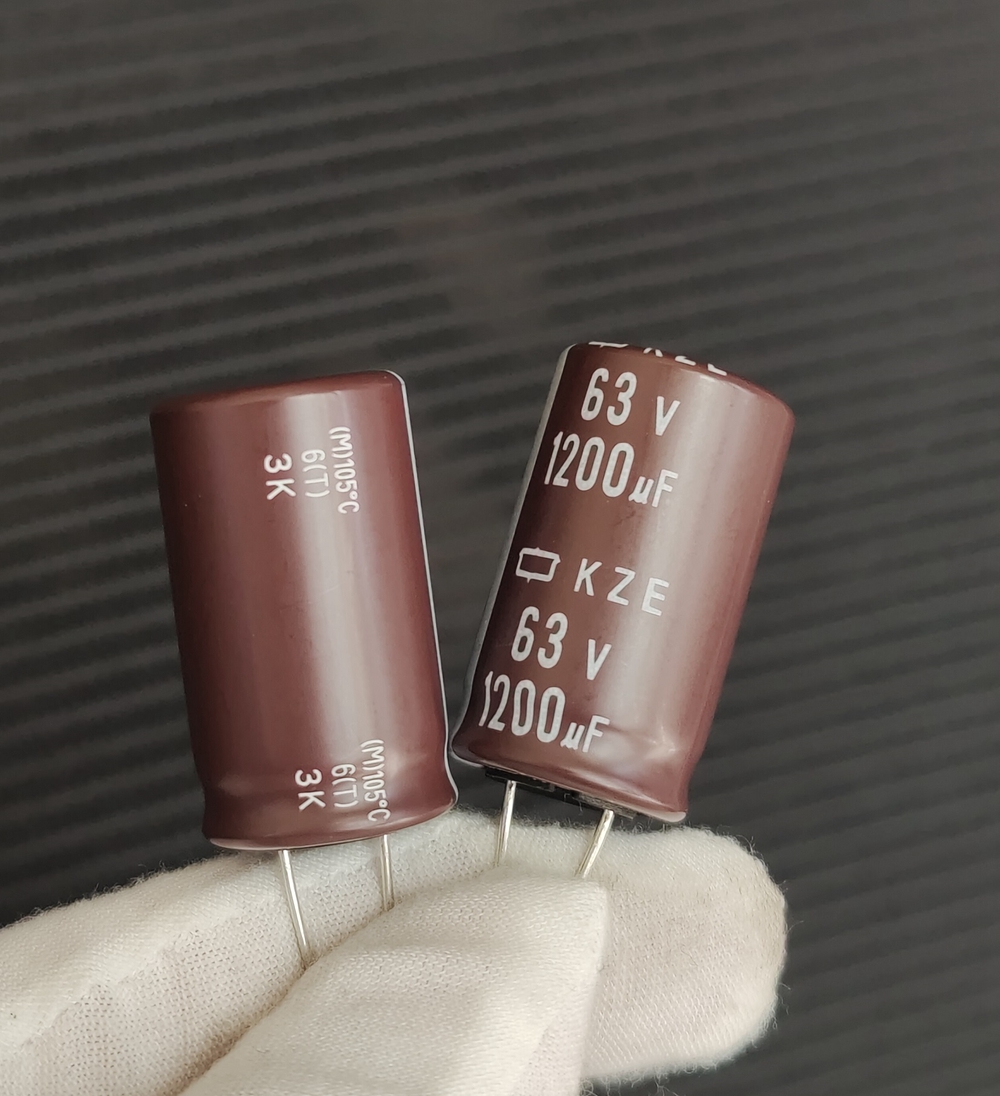

- Use for Panasonic FC series ultra-low impedance capacitors for large capacitors

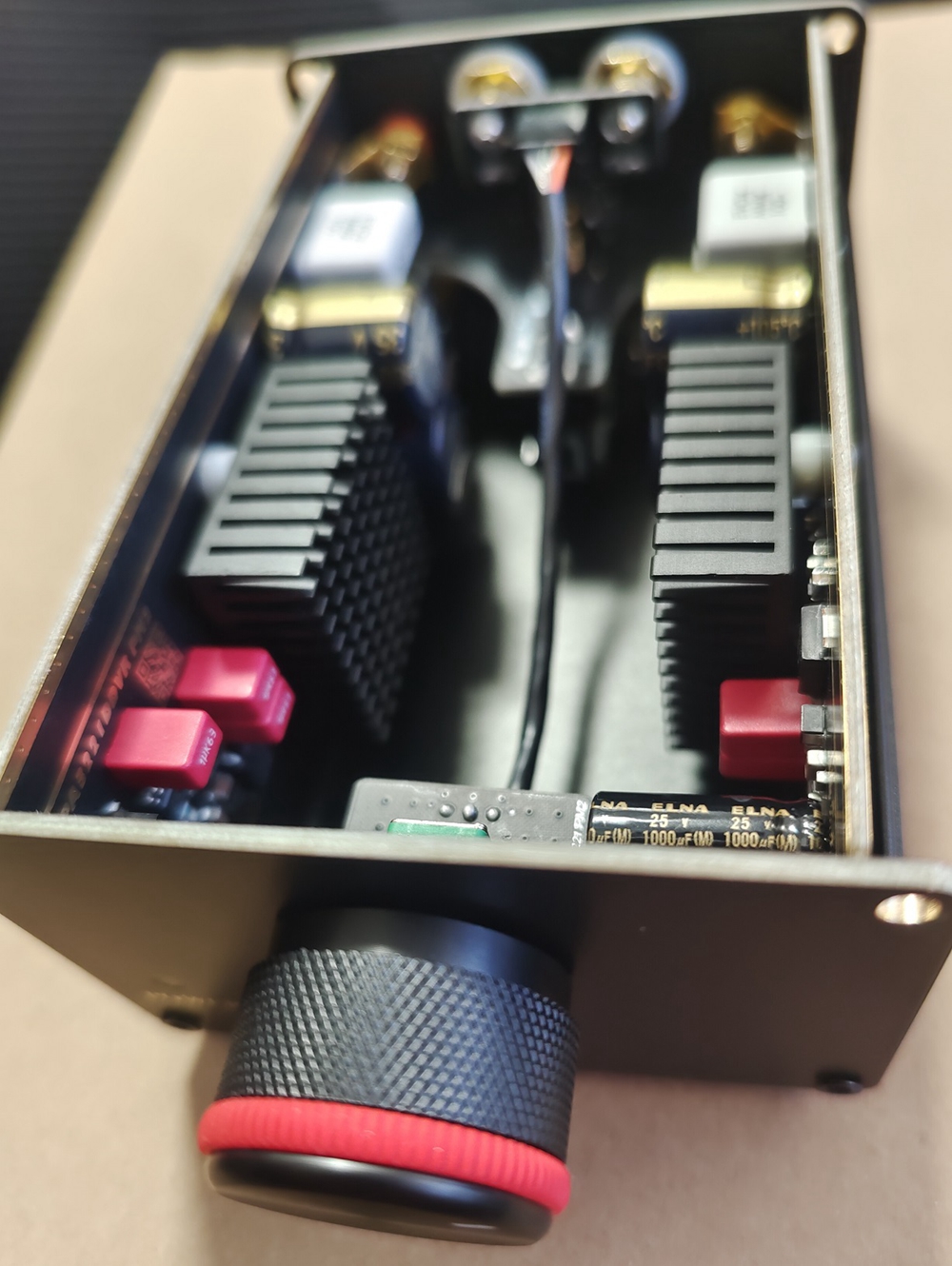

- The entire power amplifier is simple and refreshing inside, with reasonable design, try to avoid using interfaces and wires to increase stability, and the interior is refreshing and beautiful.
- Using aluminum alloy knobs, better touch feeling
- Metal chrome-plated switch, beautiful and reliable

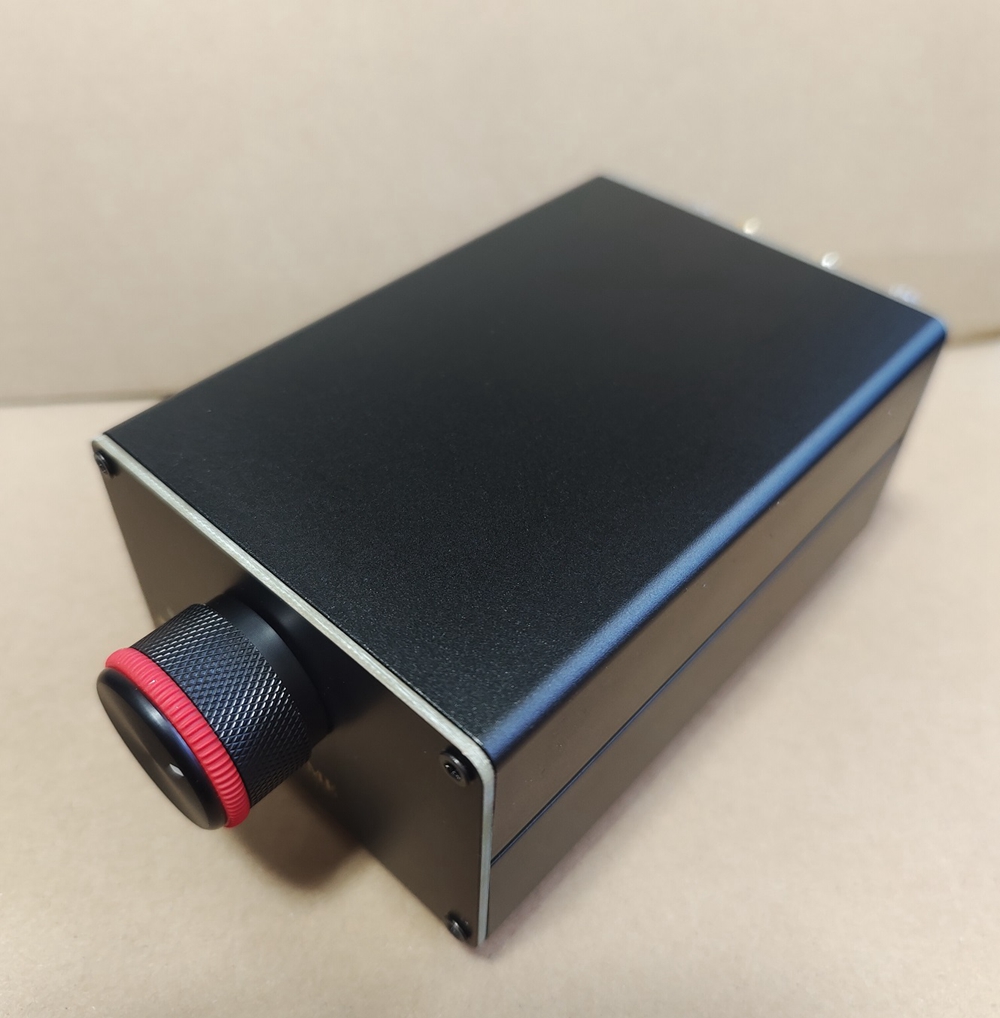

- The shell is made of aluminum alloy (except for the front and rear baffles), and the front and rear baffles are made of epoxy resin glass fiber copper clad laminate (same as the PCB circuit board), which has been treated with thickening and immersion process, and the strength is also very good.
Package Included:
- 1 x Power Amplifier
Note:
- Most power supplies are not suitable for this amplifier, and it is easy to power off without reason or directly fail to start when listening to large dynamic audio. If you are unsure whether your own power supply can be used or not, please choose the product version with the power supply.
