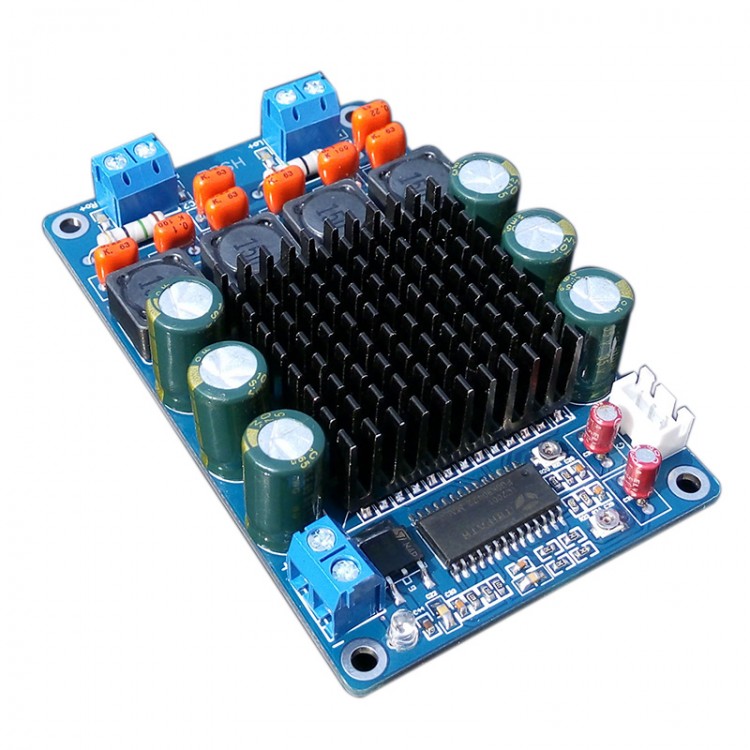

Class T TK2050 50W+50W Dual Channel HIFI Stereo Audio Digital Amplifier Board for DIY Audiophile
Description:
- Work type: class T
- Basic Chip: Tripath TK2050
- Mounting holes are available for easy installation and fix
- Excellent heat sink eliminates your worry over heat dissipation
- "Audiophile quality" sound
- A perfect "Class t" architecture
- Over 90% components are SMT based, which are reliable and environment-friendly
- Ideal for DIY and industrial applications
- Over/under voltage turn off
- Over current protection
- Over temperature protection
- Output Power: 50W*2
- Suitable Music Box: Any 4-8 ohm
- Efficiency: 92%
- Switching Frequency: 650KHz
- Working Voltage: DC12V-DC28V(recommended voltage DC19V)
- Static Current: 60mA
- PCB Board Dimensions: 92x58x20mm
Applications:
- Active Subwoofers
- Home Theater Receiver
- Multi-channel Distribution
- Active DVD System
- Mini/Micro Systel
Package includes:
- 1 x Audio Amplifier Board
