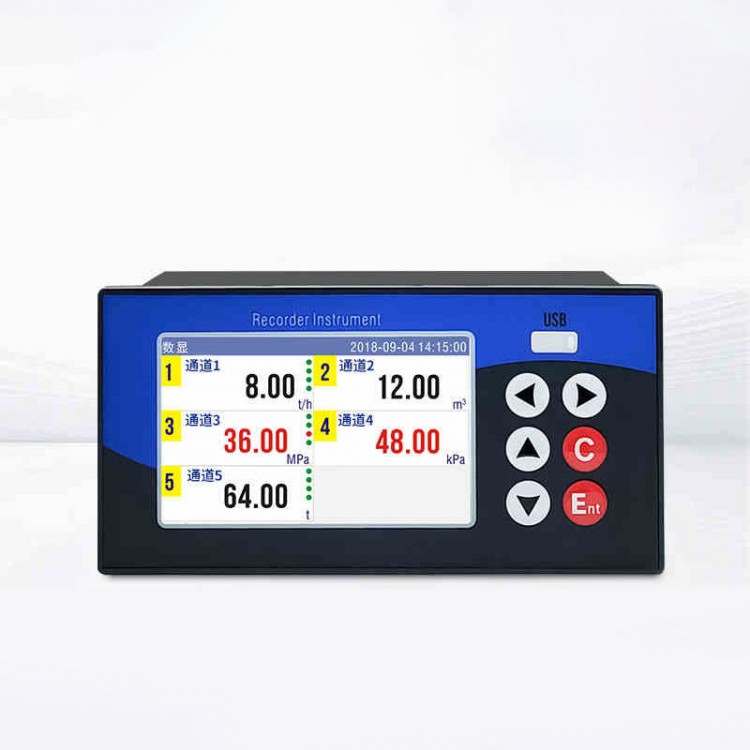

Classic Version Industrial 5-Channel Data Recorder 16MB Memory Data Logger 4-inch Touch Screen with RS485 Interface

Classic Version Industrial 5-Channel Data Recorder 16MB Memory Data Logger 4-inch Touch Screen with RS485 Interface

General Specification:
- Model: JJ68R
- Input channel: 1 - 6 channels input (optional)
- Interface language: EN/CN (freely switch)
- Recorder dimension: panel 160 x 80mm, depth 100mm, opening 152 x 76mm
- Display: 4-inch color LCD, 800x480 resolution
- Measuring precision: 0.2% F.S.
- Sampling period: 1s
- Recording interval: 1s, 2s, 5s, 10s, 15s, 30s, 1min, 2mins, 5mins, 10mins, 30mins, 1hour
- Alarming relay: 6-channel normally-open relay, 250VAC3A, 30V DC3A (resistive load)
- Transmission output: 2-channel 4-20mA transformer output, load ≤ 759ohms, precision 0.2%
- 24VDC power distribution: 2-channel 24VDC±10%, 30mA per channel
- R485 communication: 1 channel RS485 communication interface, standard ModbusRTU protocol
- USB interface: USB2.0, support 32GB large capacity USB flash drive
- Power supply: AC100 - 240VAC, 50/60Hz; DC24VDC±10%, maximum power up to 10W
- Working temperature: -10℃ ~ 60℃
- Working humidity: 0 - 85%RH (non-condensing)
- Data memory: 16MB, 900000 records
- Other records: 256 alarming records, 256 power-off records, 256 operation logs
- Installation mode: disk-mounted, indoor

Input Signal:
- Current: 4 - 20mA, 0 - 10mA, 0 - 20mA
- Voltage (mV): 20mV, 200mV
- Voltage (V): 0 - 5V, 0 - 10V, 1 - 5V
- Thermo-coupler: K, S, B, J, R, N, T, E, WRe3-25, WRe5-26, F1, F2
- Thermo-resistor: Pt100, Cu50, Cu53, Cu100

Package Included:
- 1 x Data Logger
