Clock Distributor Square Wave Distribution Amplifier 8CH Output (BNC Interface Output 0-3.3Vpp)

Description:

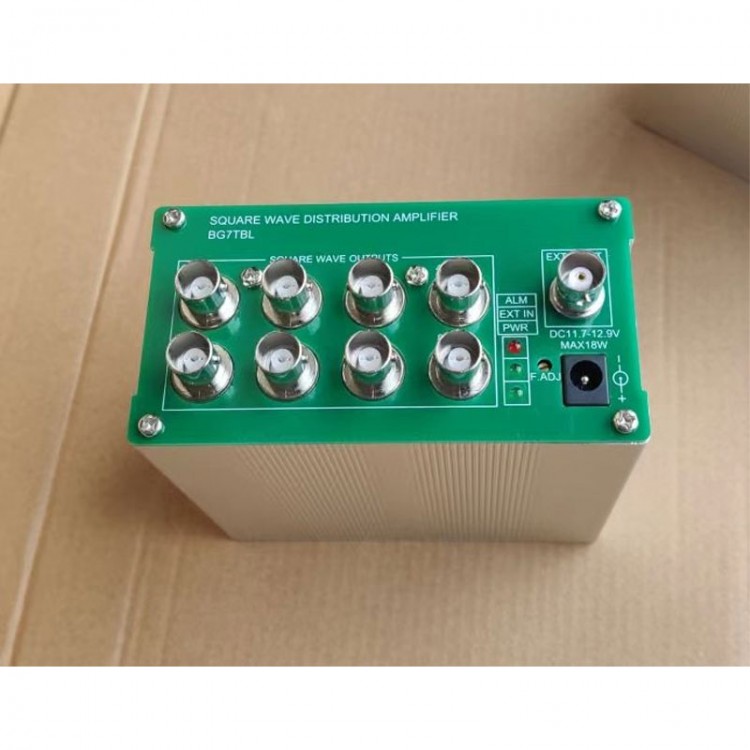

1PPS square wave distributor, distributed amplifier, features 8-channel output. There is optional OCXO inside.

Features:
- Power supply: DC11.7-12.9V; Max. 12W; 5.5/2.1 socket
- Input: external AC coupling, 0.5Hz-200MHz, 0.1Vpp-5Vpp; DC coupling, DC-200MHz, signal average 1.65V/2.5V, 3.3Vpp/5Vpp
- Output: 8-port, square wave, 0-3.3Vpp/5Vpp
- Input/output ports: BNC

LED Indicators:
PWR.: Power indicator. The indicator lights up when it is powered on.
EXT IN: External input signal indicator. When the input signal is greater than 3Hz, the indicator will stay on. Otherwise, the indicator will flash or do not light up.
ALM: When the indicator is on, there is no output. When the output signal is greater than 0.5Hz, the indicator will be always on. Otherwise, the indicator will flash or stay on.

Specifications:
- Size (LxWxH): 120 x 100 x 55mm/4.7 x 3.9 x 2.2" (including BNC connectors)
- Net weight: 400g/0.9lb (excluding adapter); 600g/1.3lb (including adapter)

Package Included:
- 1 x Square Wave Distribution Amplifier
- 1 x AC110-220V-DC12V/1.0A Power Adapter

FAQ:
1. What is this?
A: This is a frequency distribution amplifier and a OCXO frequency standard. It can input external signals and then output 8-port signals.

2. What is the main purpose?
A: For example, you have a 10M frequency reference and you have to provide a reference for 5 instruments separately. In this case, you can use the amplifier.

3. What do the 3 indicators do?
A: PWR: the power indicator. As long as the power is connected, the light will be on, used to check whether the power supply part is good. EXT IN: this light is on, indicating that the output is an external input signal. ALM: When this light is on, it indicates no signal output or equipment failure. 3 seconds of power-on and 3 seconds of power-off are not counted.

4. What is the use of optional OCXO?
A: It can be used as clock source. When there is no external input, internal OCXO is used automatically.
