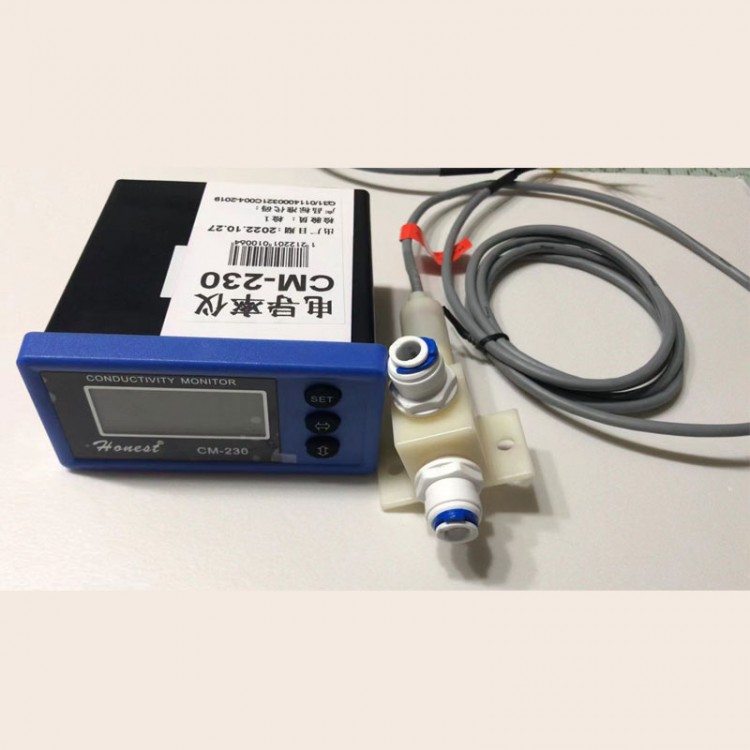

CM-230 Water Conductivity Meter Online Conductivity Meter Monitor with Quick Release Electrode

CM-230 Water Conductivity Meter Online Conductivity Meter Monitor with Quick Release Electrode

Description:
CM-230 is an industrial online conductivity meter. Maintaining the performance of the original product, it adopts a single-chip microcomputer digital circuit for measurement and temperature compensation. The conductivity monitor is widely used in the measurement and monitoring of conductivity values in water treatment equipment such as reverse osmosis. It is easy to use, with reliable performance.

Features:
- Automatic range switching
- Automatic zeroing
- An electrode (K=1.00) is used
- It can be switched to display conductivity value and water temperature
- There is a panel to input electrode constant
- It is easier to use, with more stable performance and more accurate measurement results
- Widely used: It can be applied to water and sewage plants, paper-making, petroleum, chemical metallurgy and medicine

Main technical indicators:
1. Measuring range: 0~2000uS/cm (effective measurement range is 0.10~1999uS/cm); automatic range switching of 0~20.00uS/cm, 0~200.0uS/cm and 0~2000uS/cm;
2. Automatic temperature compensation: compensation range is 0~100 °C, compensation reference is 25 °C, and compensation coefficient is 2.0%/°C; temperature-compensation element: NTC10KΩ;
3. Display mode: 3 ½ digit 0.56" LCD (with backlight) displays conductivity value;
4. Instrument level: grade 2.0;
5. Electrode: K=1.00. Quick release electrode (with a 1m/3.3ft cable. Installed in a G 1/4 hose);
6. Power supply: AC220V±10% 50Hz (optional DC24V power supply);
7. Product size: Panel size: 96 x 48mm/3.8 x 1.9"; hole spacing: 91 x 45mm/3.6 x 1.8"; Depth: 100mm/3.9".

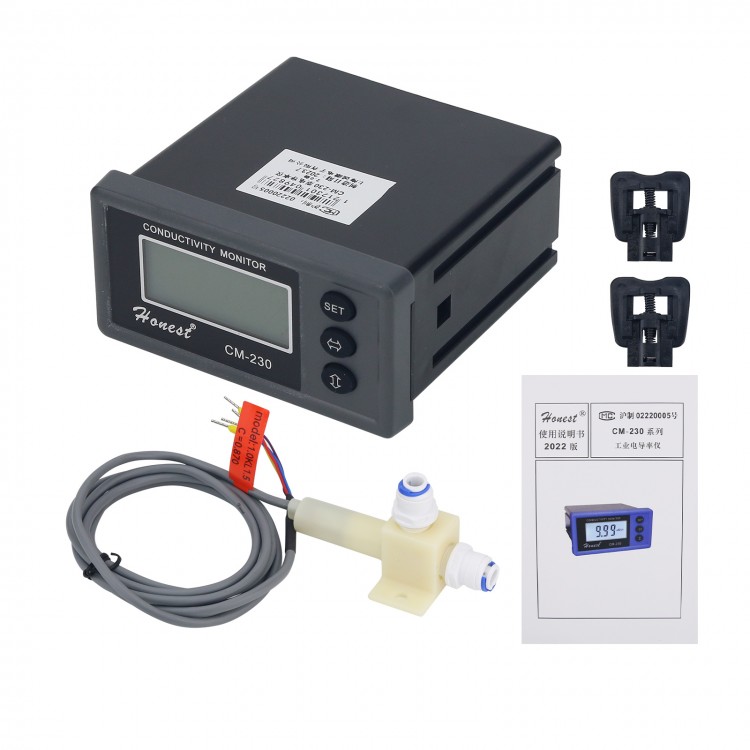

Package Included:
- 1 x Conductivity monitor
- 1 x Sensor
- 1 x Set of installation bracket
- 1 x Product quality certificate
- 1 x User manual
