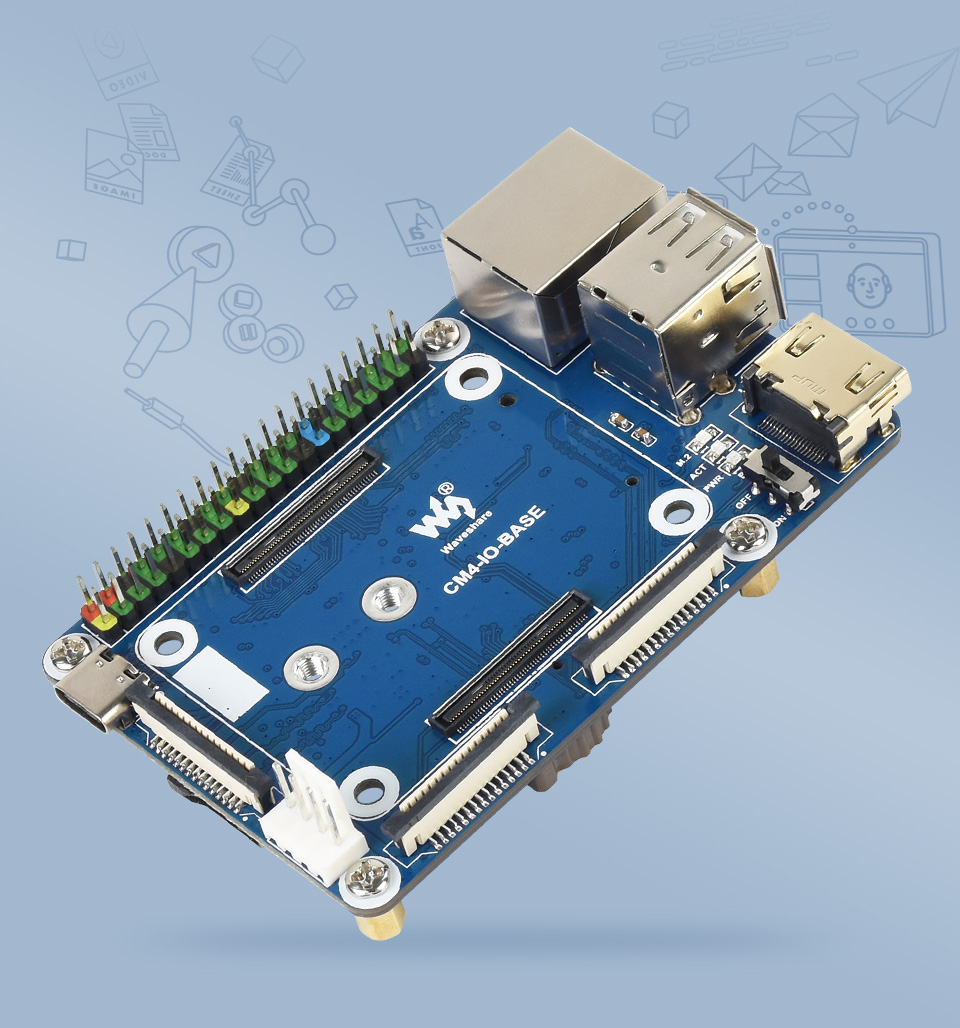

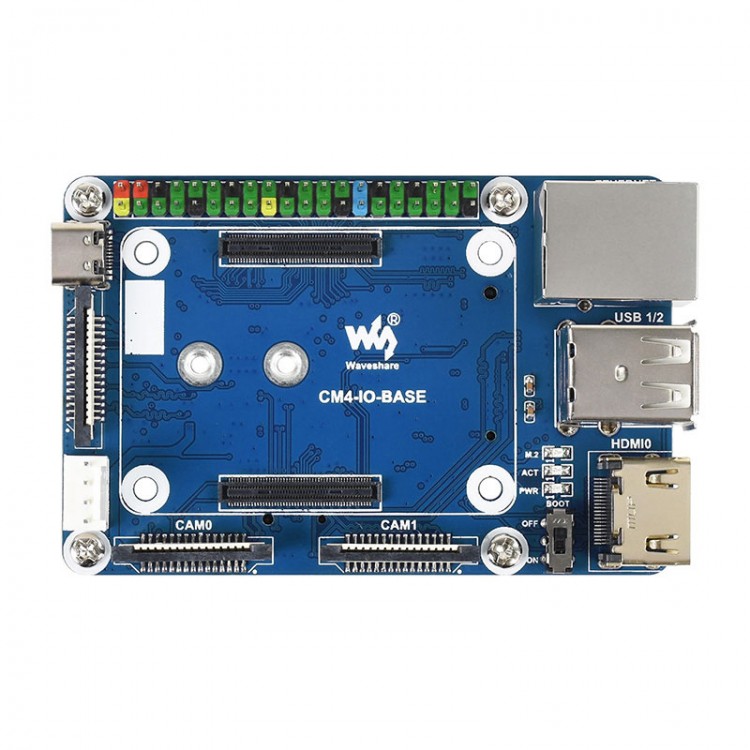

CM4-IO-BASE-B CM4 IO Board Waveshare Mini Base Board (B) For Raspberry Pi Compute Module 4

CM4-IO-BASE-B CM4 IO Board Waveshare Mini Base Board (B) For Raspberry Pi Compute Module 4

Features:
- Mini base board for Compute Module 4
- Suitable for evaluating Raspberry Pi CM4 or being integrated into end products
- Powerful functions in a credit card sized body
- Standard CM4 socket and color-coded 40PIN GPIO header for Raspberry Pi. Suitable for Compute Module 4 Lite/eMMC series module

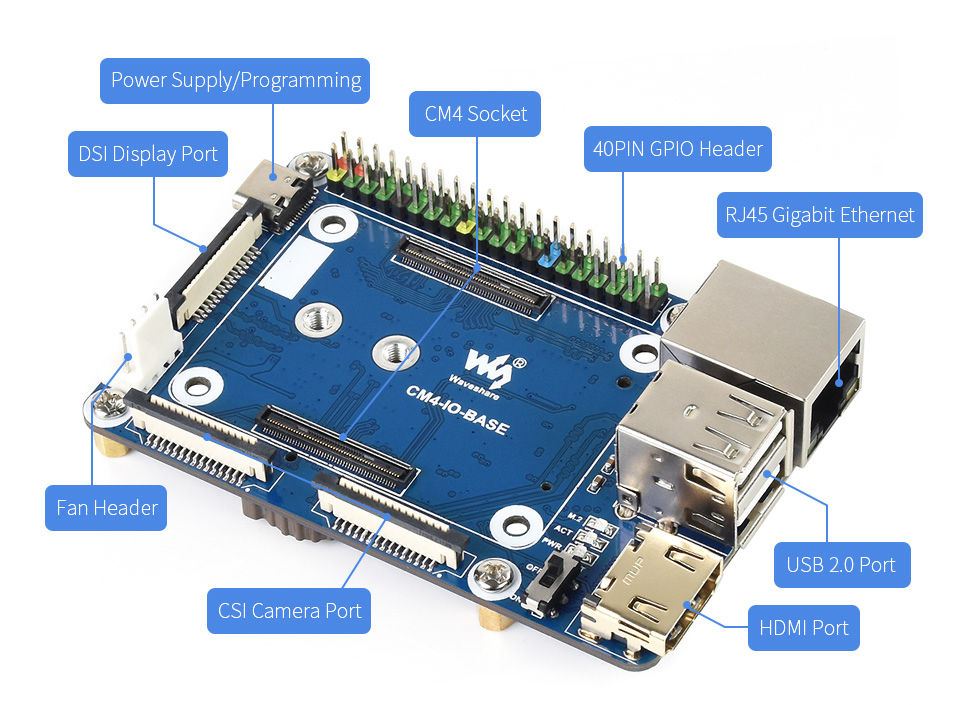

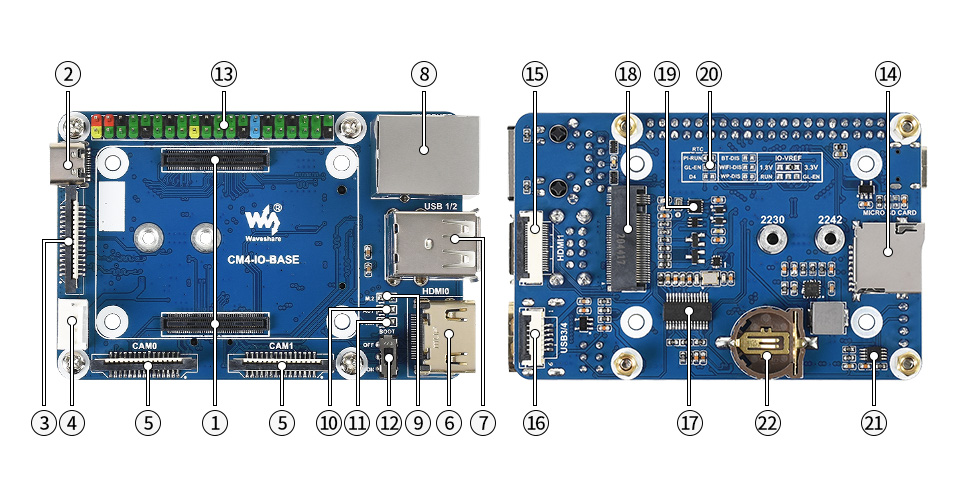

- Compact size with complete functions. Onboard multiple connectors including CSI/DSI/RTC/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot
- Application example: working with displays and cameras and working with an additional SSD

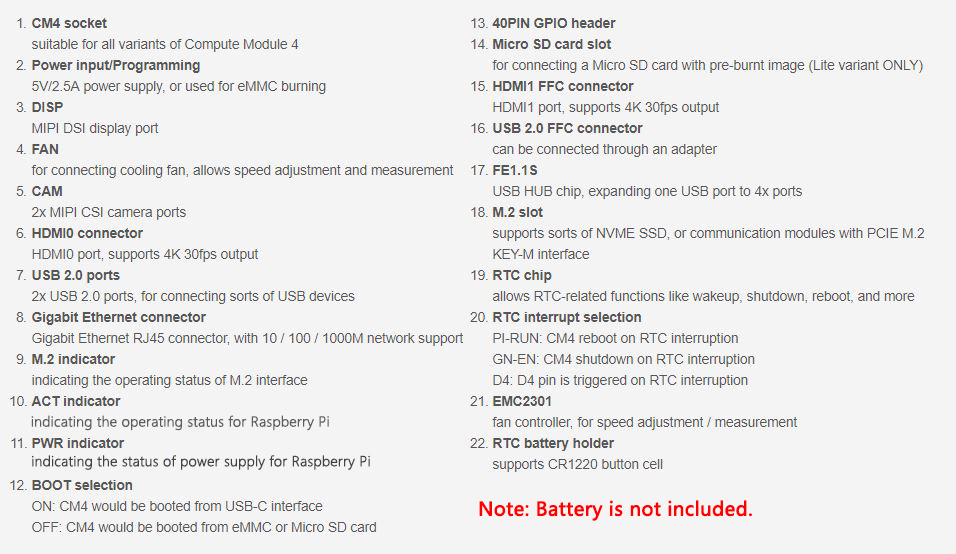

Specifications:
- CM4 socket: suitable for all variants of Compute Module 4
- Networking: Gigabit Ethernet RJ45 connector. M.2 M KEY, supports communication modules or NVME SSD
- Connector: 40PIN GPIO header for Raspberry Pi
- USB: USB 2.0 Type A x 2, USB 2.0 via FFC connector x 2
- Display: MIPI DSI display port (15pin 1.0mm FPC connector)
- Camera: MIPI CSI-2 camera port x 2 (15pin 1.0mm FPC connector)
- Video: HDMI port x 2 (including one port via FFC connector), supports 4K 30fps output
- RTC: Real-time clock with battery socket and ability to wake Compute Module 4 (battery is not included)
- Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
- Fan header: allows speed adjustment and measurement, 5V
- Power input: 5V

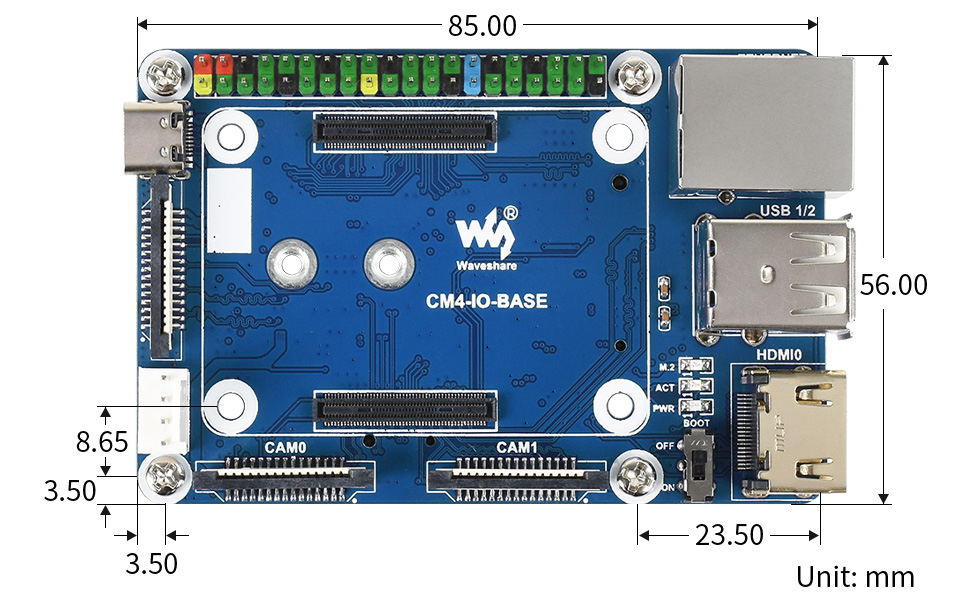

- Dimensions: 85 x 56mm/3.3 x 2.2"

Get More Information Here:
https://www.waveshare.com/wiki/CM4-IO-BASE-B

Package Included:
1. CM4-IO-BASE-B x1
2. SSD mounting screw x1

Note:
- Board for Raspberry Pi Compute Module 4, antenna, displays, cameras and SSD are not included.
- Battery is not included in the package. CR1220 button cell is recommended.
