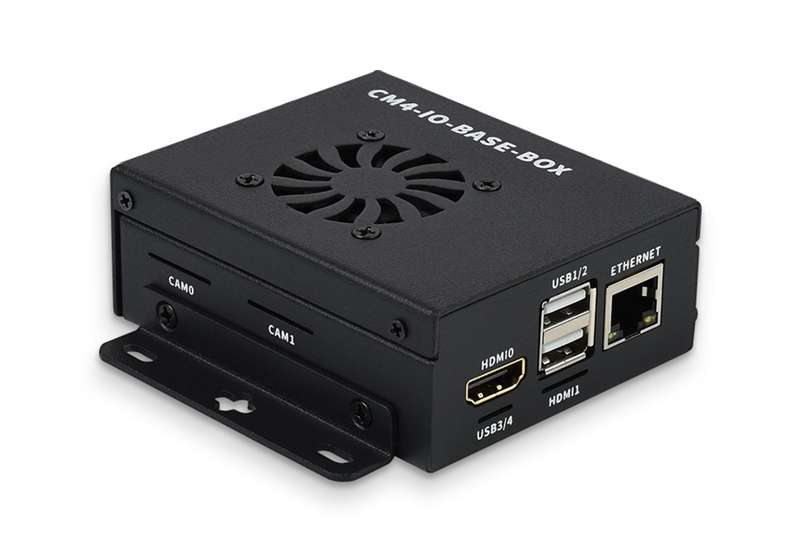

CM4-IO-BASE-BOX-A Mini Computer Kit Mini PC With CM4 IO Board For Raspberry Pi Compute Module 4
Features:

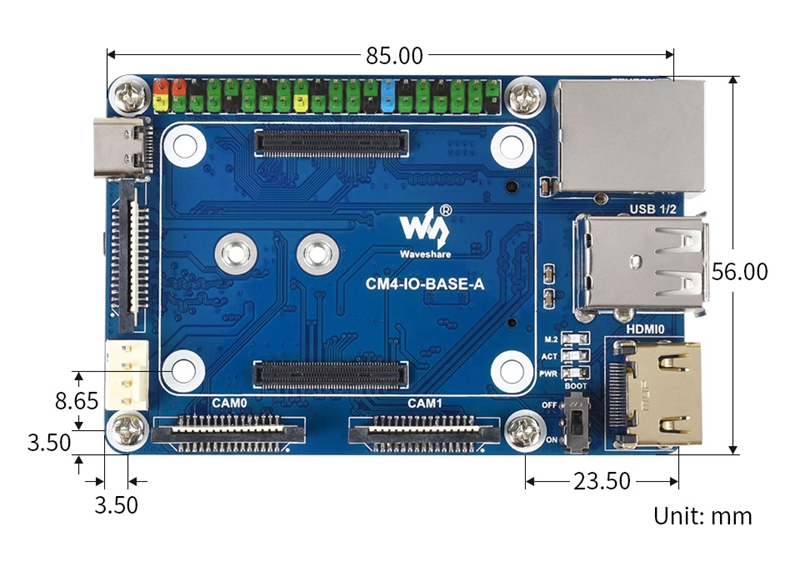

- Mini-computer based on CM4. Designed for Raspberry Pi Compute Module 4. Waveshare CM4-IO-BASE-A (Lite Ver.) inside makes it easy to build a mini-computer
- Waveshare mini IO Board (Lite Ver.) inside makes it easy to build your own mini PC for Raspberry Pi CM4. 40PIN GPIO header for Raspberry Pi

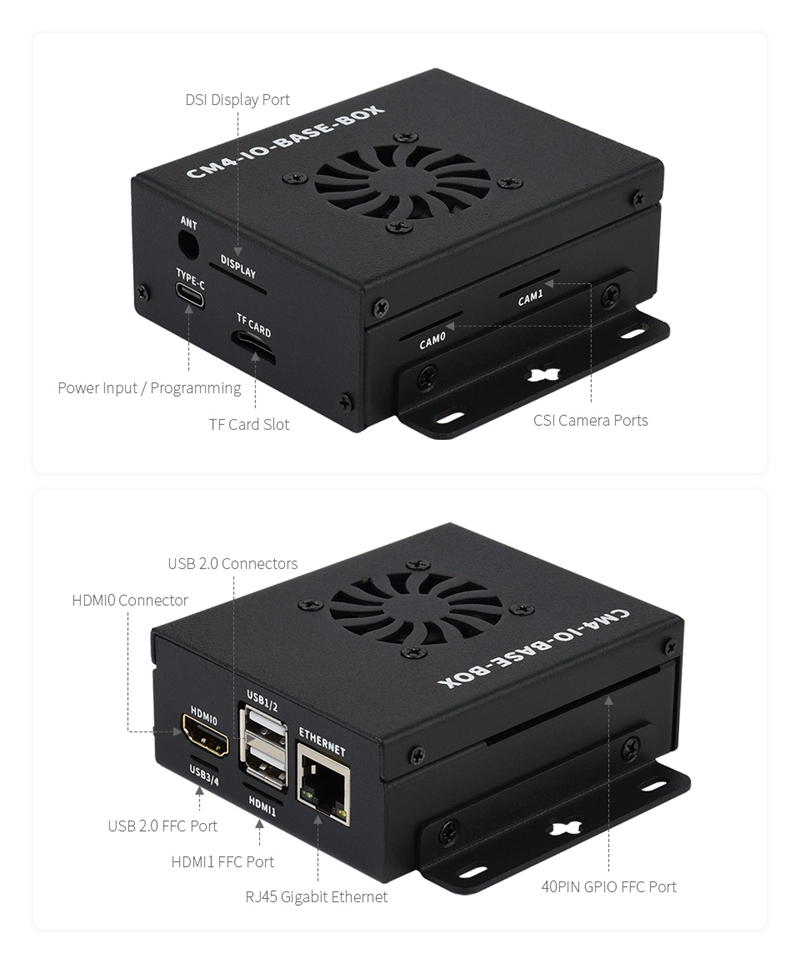

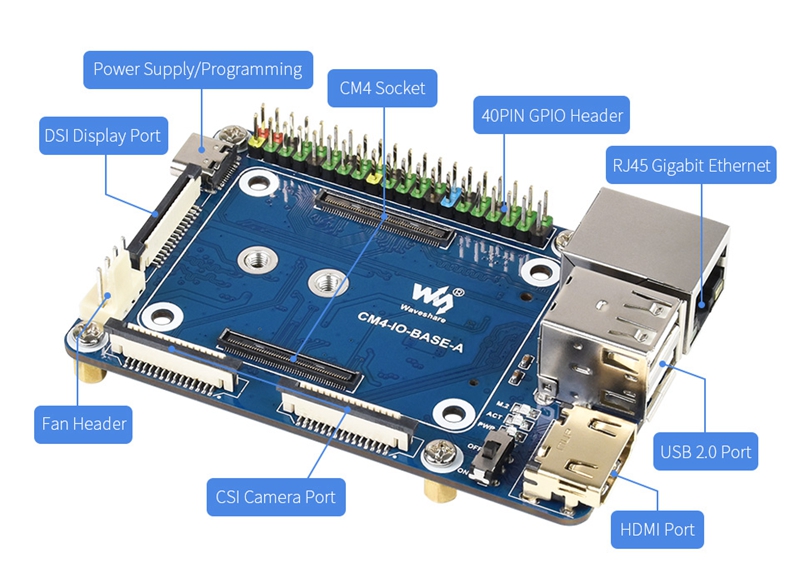

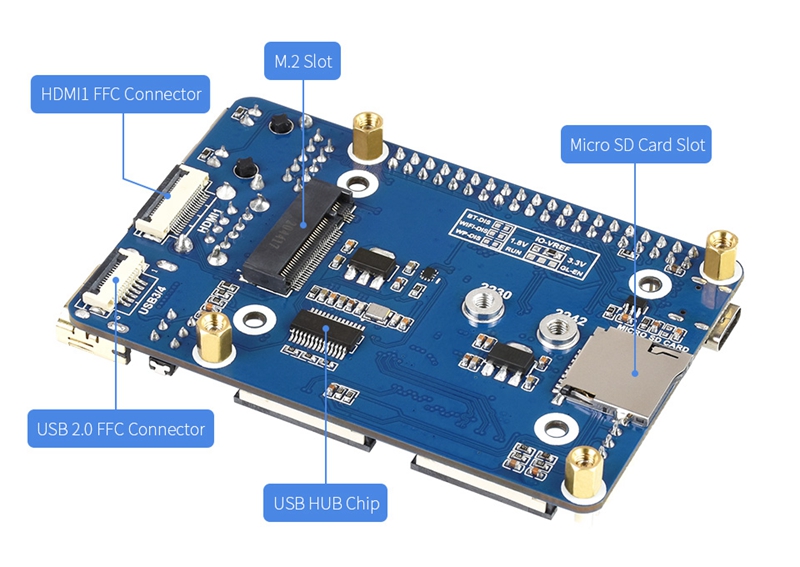

- Rich peripheral connectors, including CSI/DSI/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot

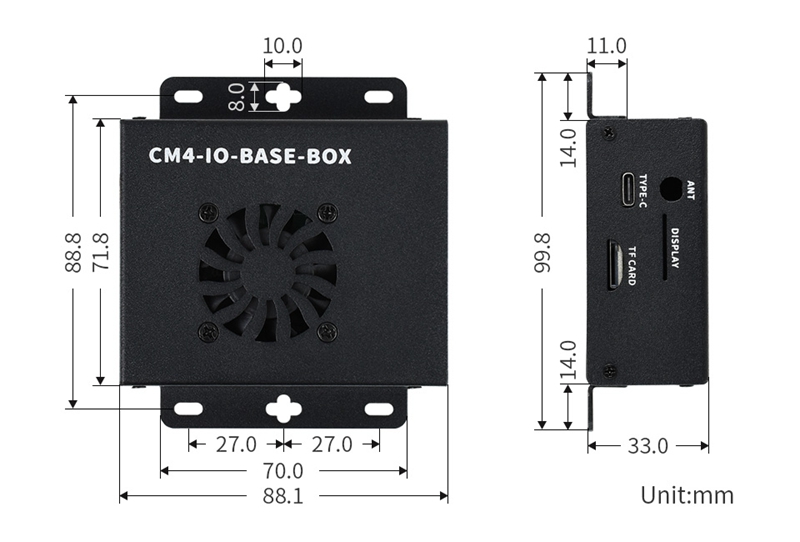

- Precise cut-out with clear label. Each cut-out is completely aligned with the connector
- Cooling fan included. Comes with cooling fan combined with the airflow vent for better heat dissipation
- Wall mount support. Wall mount holes on two sides, handy for mounting
- Application examples: binocular vision for Raspberry Pi projects, or other industrial context

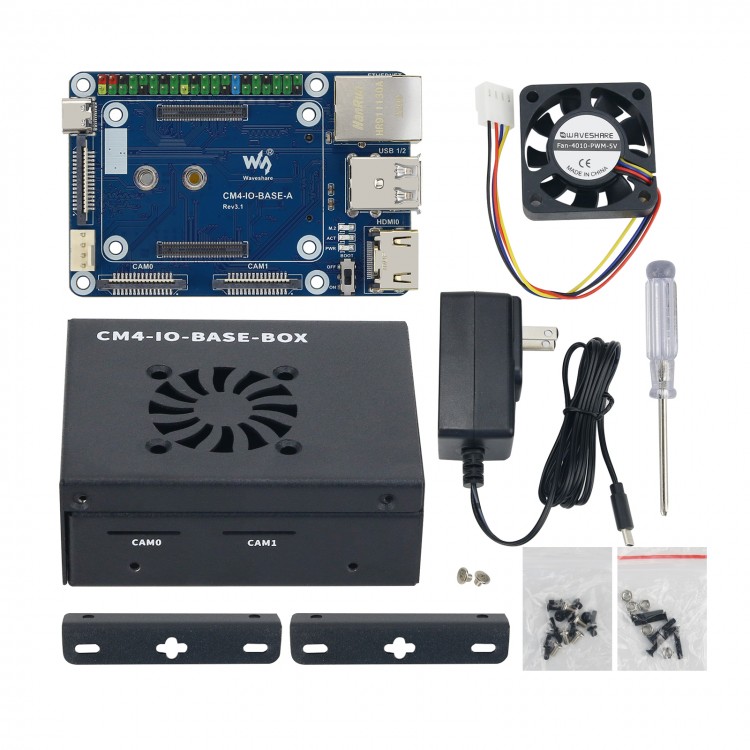

Package Included:
1. CM4-IO-BASE-A x1
2. Metal case (top and bottom) x1
3. Fan-4010-PWM-5V x1
4. Type C power adapter 5V 3A x1
5. Screwdriver x1
6. Screws pack x1
Note:
- Assembling is needed.
