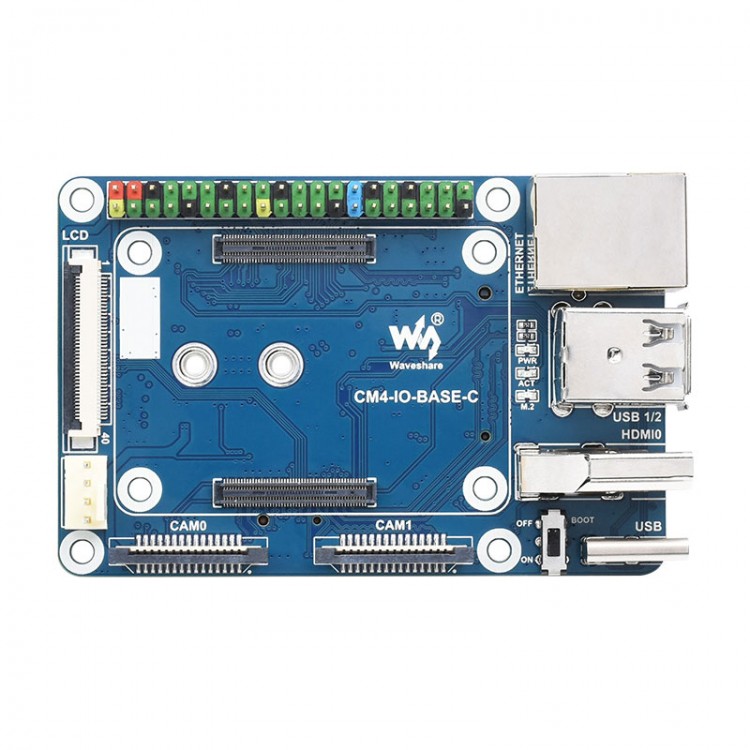

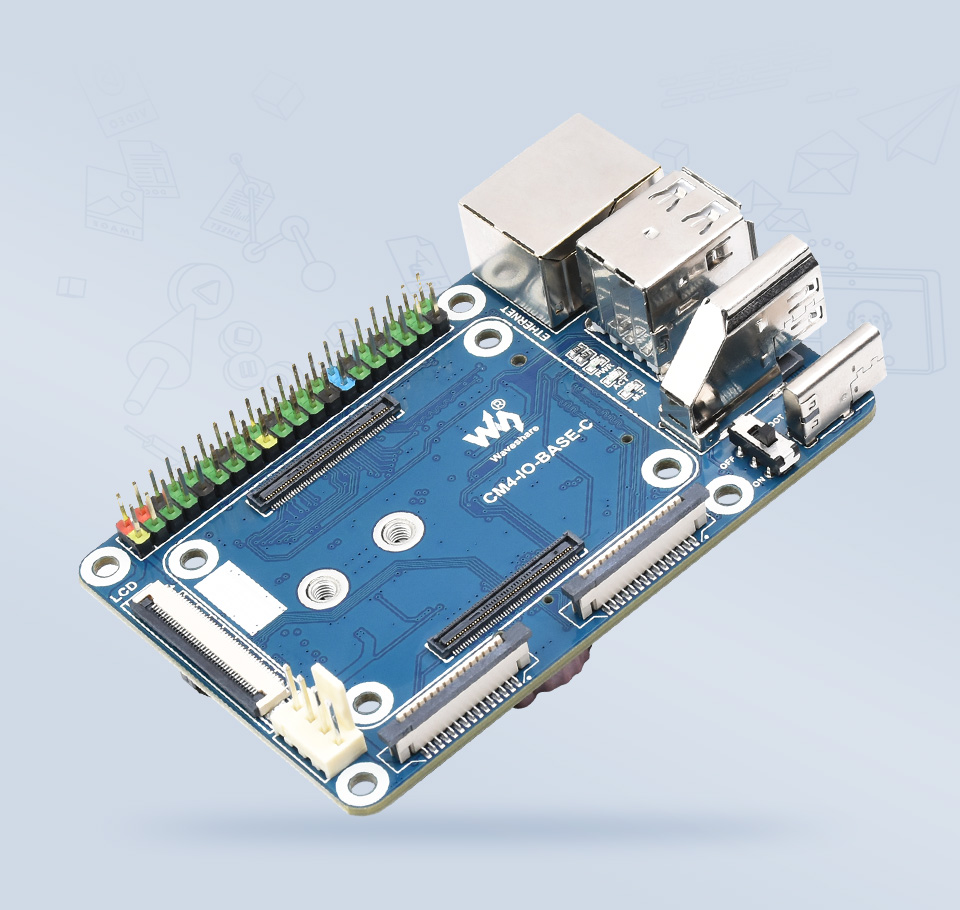

CM4-IO-BASE-C Mini Base Expansion Board Module C Type for Compute Module 4 Advanced Version

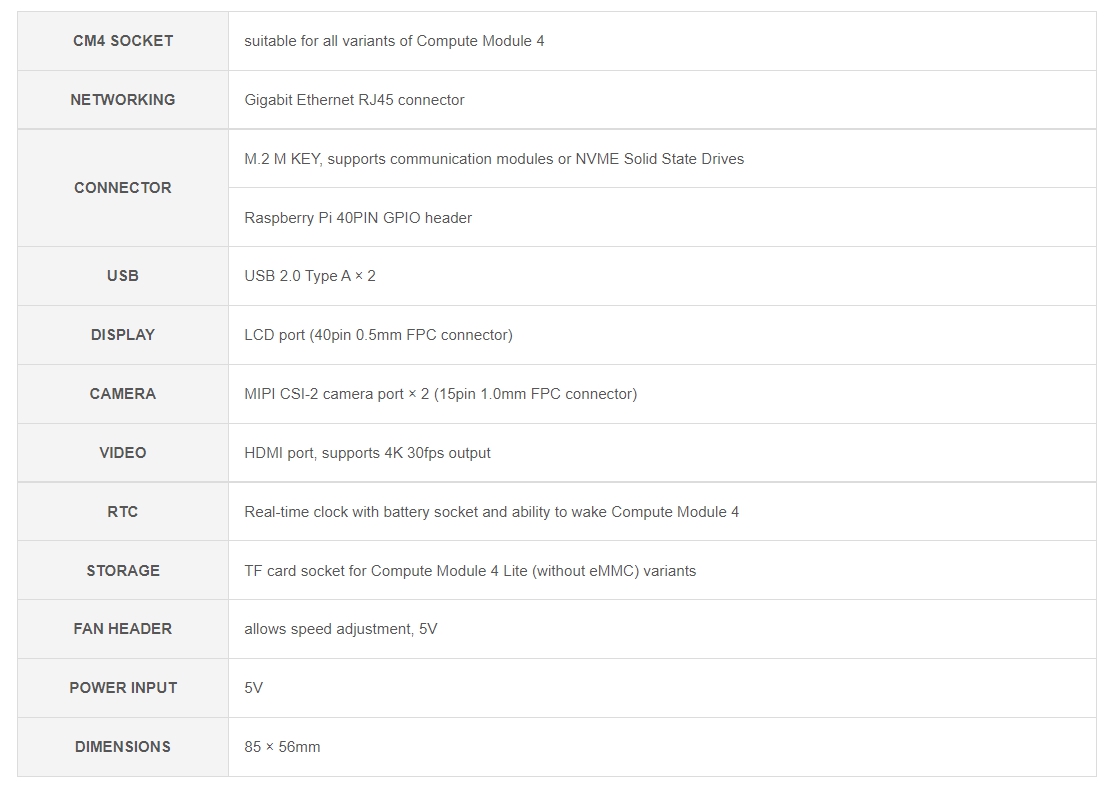

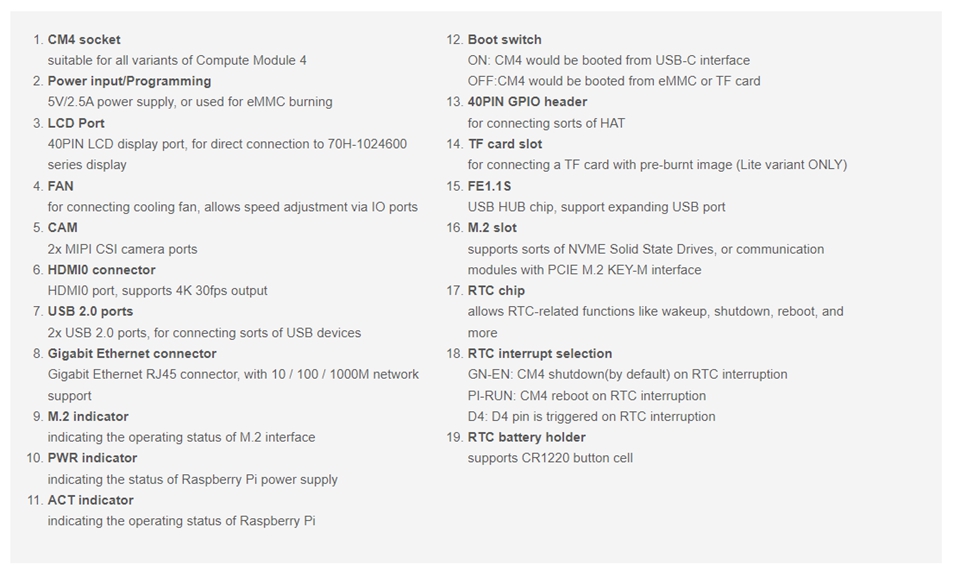

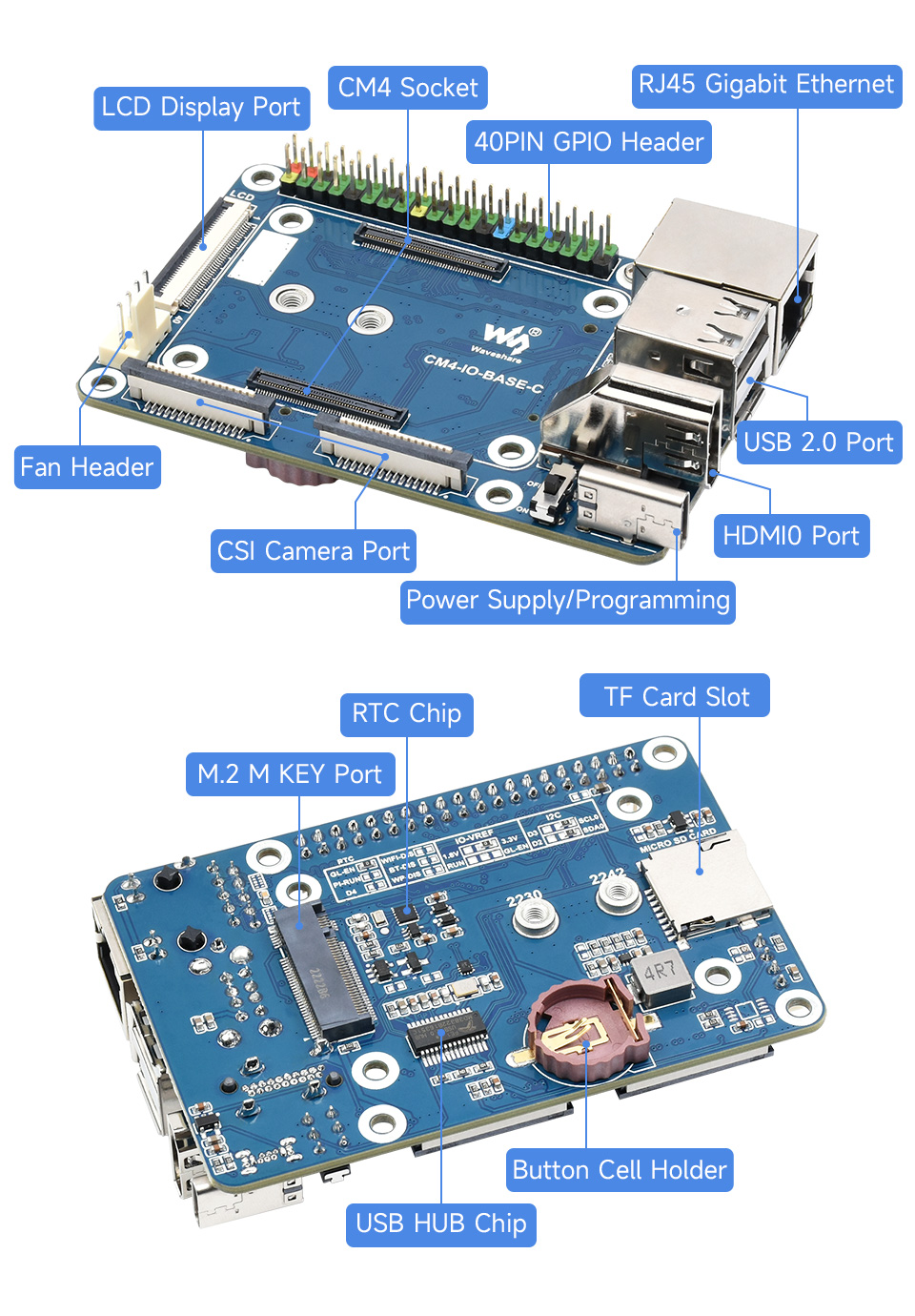

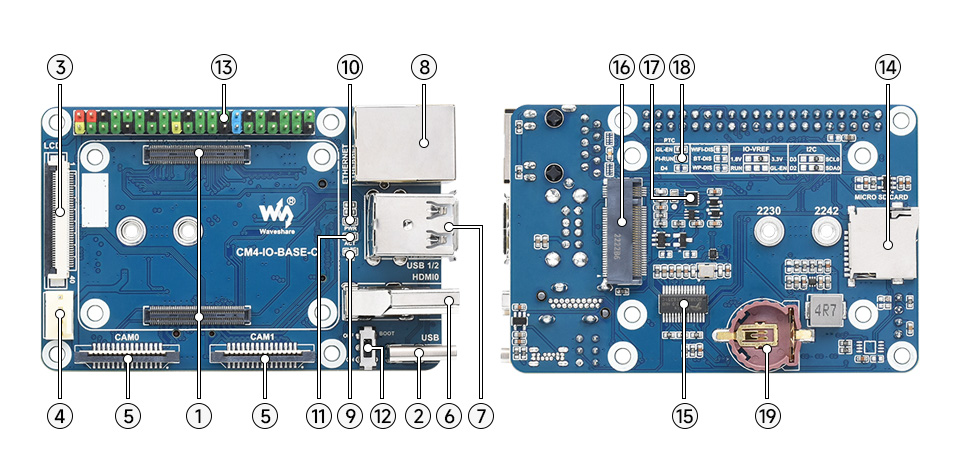

Parameter:
- CM4 socket: suitable for all variants of Compute Module 4
- Networking: Gigabit Ethernet RJ45 connector
- Connector: M.2 M KEY, supports communication modules or NVME Solid State Drives
Raspberry Pi 40 PIN GPIO header
- USB: USB 2.0 Type-A x 2

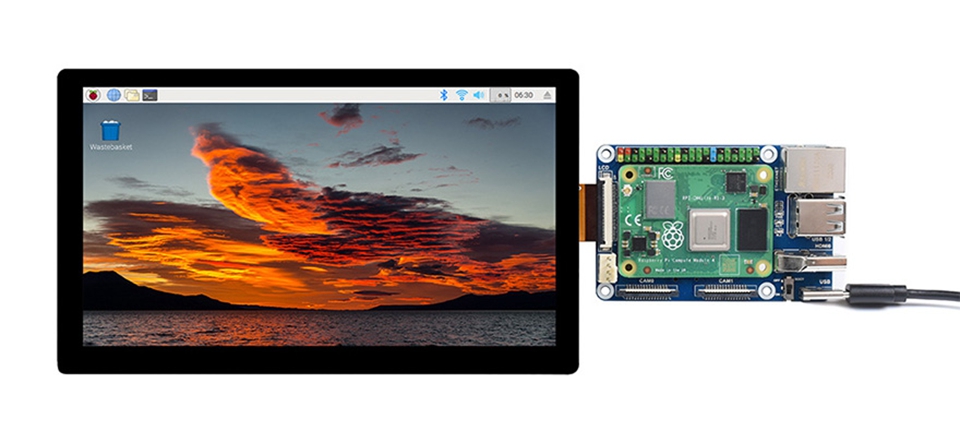

- Display: LCD port (40pin 0.5mm FPC connector)
- Camera: MIPI CSI-2 camera port x 2 (15pin 1.0mm FPC connector)
- Video: HDMI port, supports 4K 30fps output
- RTC: Real-time clock with battery socket and ability to wake Compute Module 4
- Storage: TF card socket for Compute Module 4 Lite (without eMMC) variants
- Fan header: allows speed adjustment, 5V
- Power input: 5V

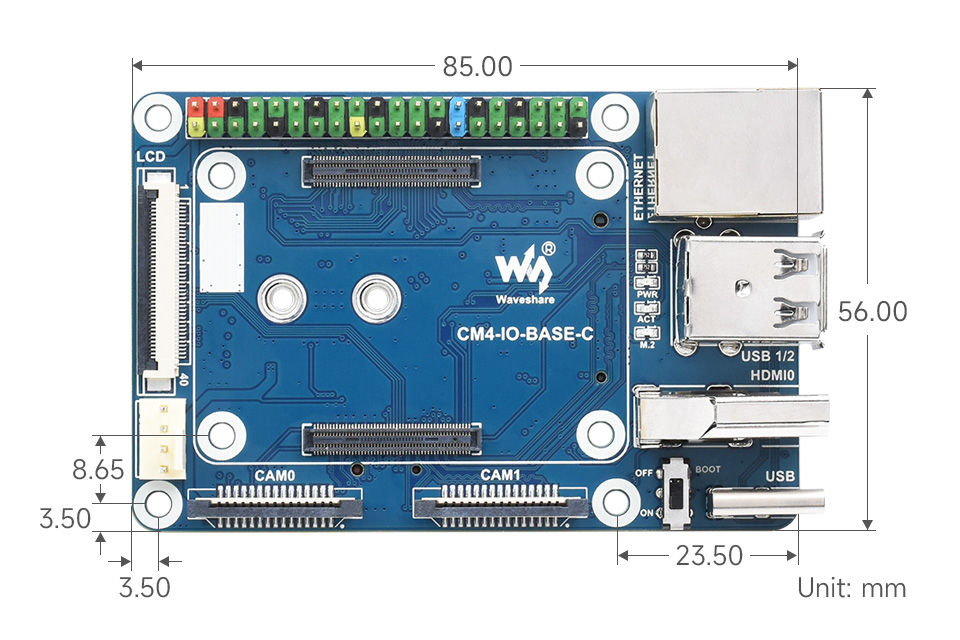

- Dimension: 85 x 56mm
Package Included:
- 1 x CM4-IO-BASE-C Expansion Board
- 1 x Solid State Drives mounting screw
